Vertical / Heavy Duty High Production

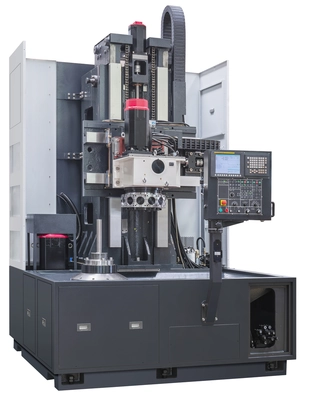

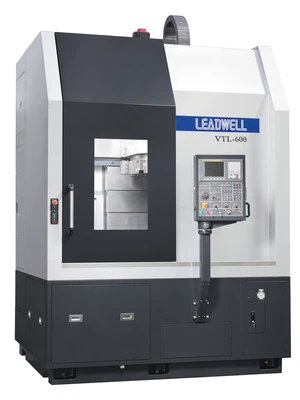

MODEL: VTL-600
Max. swing: 700 (27.5) mm(in)
Max. turning diameter: 600 (23.6) mm(in)
Max. turning length: 500 (19.6) mm(in)
Max. workplace weight: 1000 (2205) kg(lb)
X axis travel: 300+5 (11.8+0.2) mm(in)
Z axis travel: 500 (19.6) mm(in)
Chuck size: 381 (15) mm(in)
Spindle speed: 2000 rpm
Spindle nose: A2-11
Number of tool stations: 8 pcs
Shank height for square tool: 32 (1.2) mm(in)
Shank diameter of boring tool: 50 (2) mm(in)
Rapid rate (X-Axis): 20 m/min(ipm)
Rapid rate (z-Axis): 24 m/min(ipm)
X/Z/Y axis motor: 3/4 (4/5.4) kw (hp)
Machine size (LxWxH): 2920x1870x3185 mm
Machine weight: 8000 kg
