The CLA-Series is a combination of CNC flat bed type lathe and slant bed type Lathe with X, Y and C-axis milling functions.
The CLA-950 is designed with 6 hardened and ground bed ways, 2 boxed ways supporting the carriage and 2 flat ways plus 1 V way supporting the tailstock and steady rest.
Both X and Y-axis are supported by the 2 boxed ways to handle heavy milling functions.

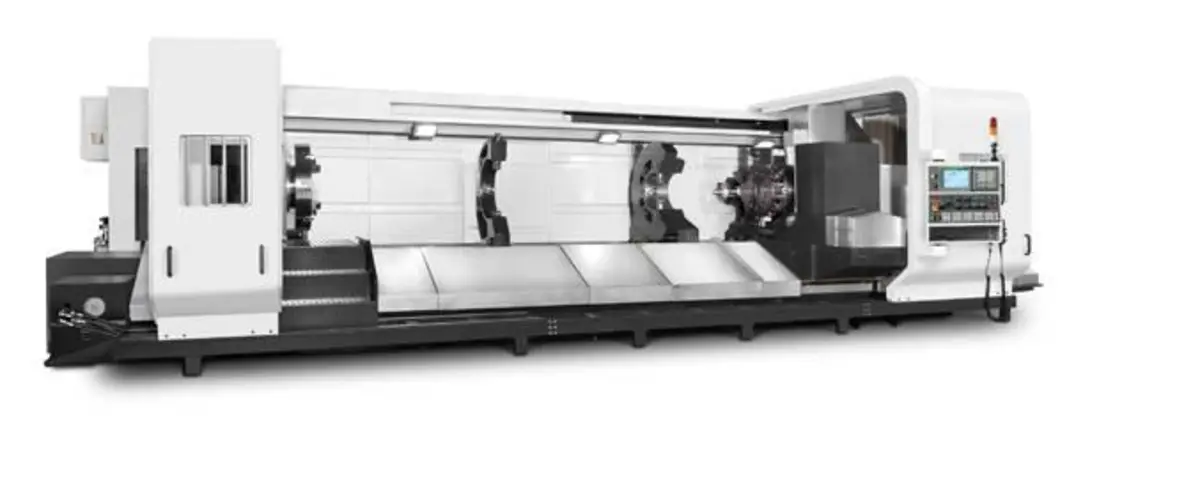

Model: CLA-9000
Swing over bed: Ø950 mm
Maximum cutting diameter: Ø950 mm
Center height: 675 mm
Distance between centers: 9000mm
Carriage type: Box type
Carriage width: 955 mm
Cross slide width: 445 mm
Bed width: 1290mm(52")
Machine length: 15330mm
Bed way: 2 box way for carriage 1 V way and 2 flat ways for tailstock and steady rest
Controller: FAGOR 8055-TC
X-axis servo motor: 5.2KW 16.5Nm
Z-axis servo motor: 6.7KW 32Nm
Y-axis servo motor: 5.2KW 16.5Nm
[Headstock]
Spindle motor: 30/45KW 191Nm
Spindle bore: Ø405mm (16") Ø153mm (6") Ø205mm (8") Ø230mm (9") Ø255mm (10") Ø305mm (12")
Spindle nose: A2-28 A2-11 A2-15 A2-15 A2-20 A2-20
Spindle speed: 5~250rpm 9~900rpm 9~650rpm 9~650rpm 7~400rpm 7~400rpm
Spindle center: MT#6
[Turret]
Turret mode: Live tooling turret-SMHTR 32 Tool holder BMT85
Spindle motor: 15/22KW 95.5Nm
Tool size: 32 mm
[Tailstock]
Quill diameter: Ø250mm
Quill stroke: 250mm
Tailstock center: MT#6
Body movement: Motorized (motor through rack and pinion)
Quill movement: Hydraulic
[Feed]
X-axis rapid traverse: 5000mm/min
X-axis ballscrew: Ø50mm*P5
X-axis feed range: 0.1~3000 mm/min
X-axis stroke: 550mm
X-axis transmitting: Directly by coupling
Z-axis rapid traverse: 5000mm/min
Z-axis ballscrew: Ø80mm*P10
Z-axis feed range: 0.1~3000 mm/min
Z-axis stroke: 9000mm
Z-axis transmitting: Nut rotates though helical gear reducer
Y-axis rapid traverse: 5000mm/min
Y-axis ballscrew: Ø40mm*P5
Y-axis feed range: 0.1~3000 mm/min
Y-axis stroke: ±100 mm
Y-axis transmitting: Directly by coupling
[SANOVIK boring bar compound with tailstock (opt.)]
Controller: FAGOR 8060
X2 servo motor: 5.2KW 16.5Nm
Z2 servo motor: 6.7KW 32Nm
Boring bar diameter: Ø250mm Ø150mm Ø200mm
Internal hole maximum cutting diameter: Ø350mm~ Ø940mm Ø250mm~Ø840mm Ø300mm~ Ø890mm
Internal hole maximum cutting depth: 2500 mm 1500 mm 2000 mm
[Feed]
X2 rapid traverse: 5000mm/min
X2 ballscrew diameter: Ø40mm*P5
X2 feed range: 0.1~3000 mm/min
X2 stroke: 300mm
X2 transmitting: Directly by coupling
Z2 rapid traverse: 5000mm/min
Z2 ballscrew diameter: Ø63mm*P10
Z2 stroke(when doing internal hole cutting): 3000 mm
Z2 feed range: 0.1~3000 mm/min
Z2 transmitting: motor through pinion and rack + REDEX 1:31 gear reducer
[Standard accessories]
Lubrication pump / Spindle 1/4HP 6.5L/min
Lubrication pump / Carriage 25W 130cc/min
Coolant pump: 15 Bar with oil skimmer
Hydraulic pump: 5HP
Chip removal: Front and rear chip conveyor+ front and rear carts
Guard: Front two doors + rear splash guard (std.) Fully enclosed guard (opt.)
Machine color: Machine body black(RAL9011)+ splash guard and doors white(RAL7047)
[Optional accessories]
[C-axis system]
[Steady rest]
Steady rest quill diameter: Ø105 mm Ø80 mm
Steady rest capacity: Ø750~Ø950 mm Ø100~Ø300, Ø300~Ø500, Ø500~Ø750 mm
[Note 1. X-axis and Z-axis actual cutting traverse will change when equipped with different turrets. 2. Spindle speed will change according to different motors. 3. Machine length excludes the length of chip conveyor. 4. Distance between centers will change based on installing different types of tailstocks. 5. Z-axis traverse = actual workpiece length]
