FEATURES
The common problem for slant bed type turning centers is the interference between the machine bed and the steady rest, which is necessary for turning large diameter and long workpieces.
The CLB-Series eliminates this problem with the revolutionary 5 guideways design.
This design allows tools to cut past the steady rest without interference.
The CLB-Series is designed to perform multi-tasking processes on complex parts that require turning, milling, drilling, tpping, and even boring.
The X, Y, Z, C axes can be controlled simultaneously to support complex parts with a high degree of machining difficulty.

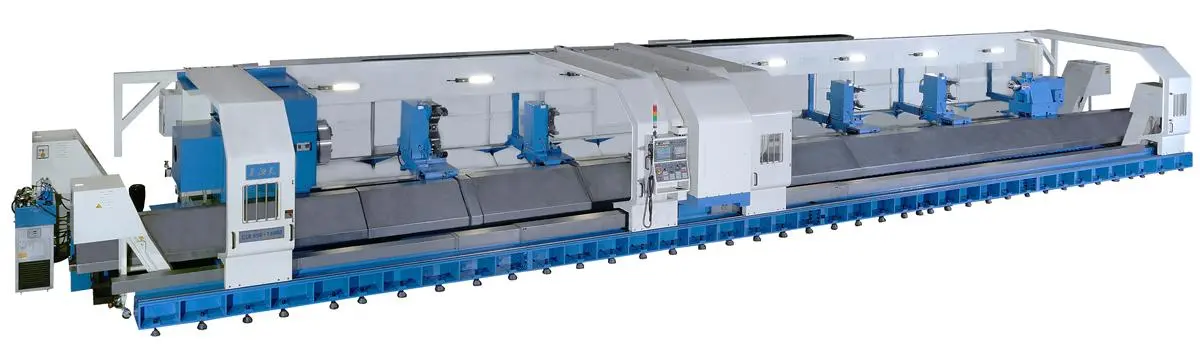

Model: CLB-11000
Swing over bed: Ø950 mm
Maximum cutting diameter: Ø950 mm
Center height: 675 mm
Distance between centers: 11000mm
Carriage type: Box type
Carriage width: 1090 mm
Cross slide width: 560 mm
Bed width: 990mm(39")+ sub-way
Machine length: 17330mm
Bed way: 2 box way for carriage 1 V way and 2 flat ways for tailstock and steady rest
Controller: FAGOR 8055-TC (std.)
[Headstock]
Spindle bore: Ø405mm (16") Ø153mm (6") Ø205mm (8") Ø230mm (9") Ø255mm (10") Ø305mm (12")
Spindle nose: A2-28 A2-11 A2-15 A2-15 A2-20 A2-20
Spindle speed: 5~250rpm 9~900rpm 9~650rpm 9~650rpm 7~400rpm 7~400rpm
Spindle center: MT#6
[Turret]
Turret mode / Sub spindle+20 tools magazine + ATC system
Turret mode / Tool shank BT50, CAT50, ISO50
Spindle motor: 15/22KW 95.5Nm
Tool size: 32 mm
[Tailstock]
Quill diameter / Between centers: Ø200mm 3~6M
Quill diameter / Between centers: Ø250mm 7~16M
Quill stroke: 250mm
Tailstock center: MT#6
Body movement: Motorized (motor through rack and pinion)
Quill movement: By hydraulic
[Feed]
X-axis rapid traverse: 5000mm/min
X-axis ballscrew: Ø50mm*P5
X-axis feed range: 0.1~3000 mm/min
X-axis stroke: 550mm
X-axis transmitting: Directly by coupling
Z-axis rapid traverse: 5000mm/min
Z-axis ballscrew: Ø80mm*P10
Z-axis feed range: 0.1~3000 mm/min
Z-axis stroke: 11000mm
Z-axis transmitting: motor through pinion and rack + REDEX 1:31 gear reducer
Y-axis rapid traverse: 5000mm/min
Y-axis ballscrew: Ø40mm*P5
Y-axis feed range: 0.1~3000 mm/min
Y-axis stroke: ±100 mm
Y-axis transmitting: Directly by coupling
[Boring bar compound with tailstock (opt.)]
Boring bar diameter: Ø250mm Ø150mm Ø200mm
Internal hole maximum cutting diameter: Ø350mm~ Ø940mm Ø250mm~Ø840mm Ø300mm~ Ø890mm
Internal hole maximum cutting depth: 2500 mm 1500 mm 2000 mm
[Feed]
X2 rapid traverse: 5000mm/min
X2 ballscrew diameter: Ø40mm*P5
X2 feed range: 0.1~3000 mm/min
X2 stroke: 300mm
X2 transmitting: By ballscrew
Z2 rapid traverse: 5000mm/min
Z2 ballscrew diameter: Ø63mm*P10
Z2 stroke(when internal hole cutting): 3000 mm
Z2 feed range: 0.1~3000 mm/min
Z2 transmitting: motor through pinion and rack + REDEX 1:31 gear reducer
[Standard accessories]
Lubrication pump / Spindle 1/4HP 6.5L/min
Lubrication pump / Carriage 25W 130cc/min
Coolant pump: 15 Bar with oil skimmer
Hydraulic pump: 5HP Between centers over 8M 2HP Between centers 3~8M
Chip removal: Front and rear chip conveyor+ front and rear carts
Guard: Front two doors + rear splash guard (std.) Fully enclosed guard (opt.)
Machine color: Machine body black(RAL9011)+ splash guard and doors white(RAL7047)
[Optional accessories]
[C-axis system]
[Steady rest]
Steady rest quill diameter: Ø105 mm Ø80 mm
Steady rest capacity: Ø750~Ø950 mm Ø100~Ø300, Ø300~Ø500, Ø500~Ø750 mm
[Note 1. X-axis and Z-axis actual cutting traverse will change when equipped with different turrets. 2. Spindle speed will change according to different motors. 3. Machine length excludes the length of chip conveyor. 4. Distance between centers will change based on installing different types of tailstocks. 5. Z-axis traverse = actual workpiece length]
