Horizontal / Multi-function

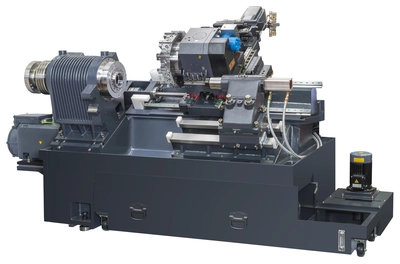

Item: T-8S
Max. swing: 600(23.62) mm (in)
Max. turning diameter: 360(14.1) mm (in)
Max. turning length: 500(19.6) mm (in)
Bar capacity: 77(3) mm (in)
X axis travel: 200+25 (7.87+1) mm (in)
Z axis travel: 560(22) mm (in)
Spindle speeds range: 3500 rpm
Chuck size: 10 in
