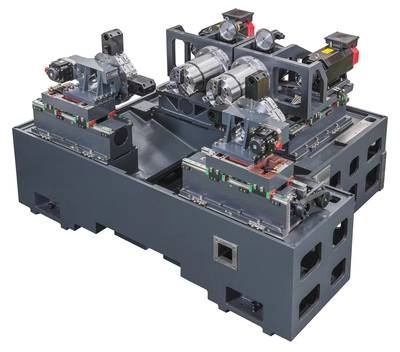

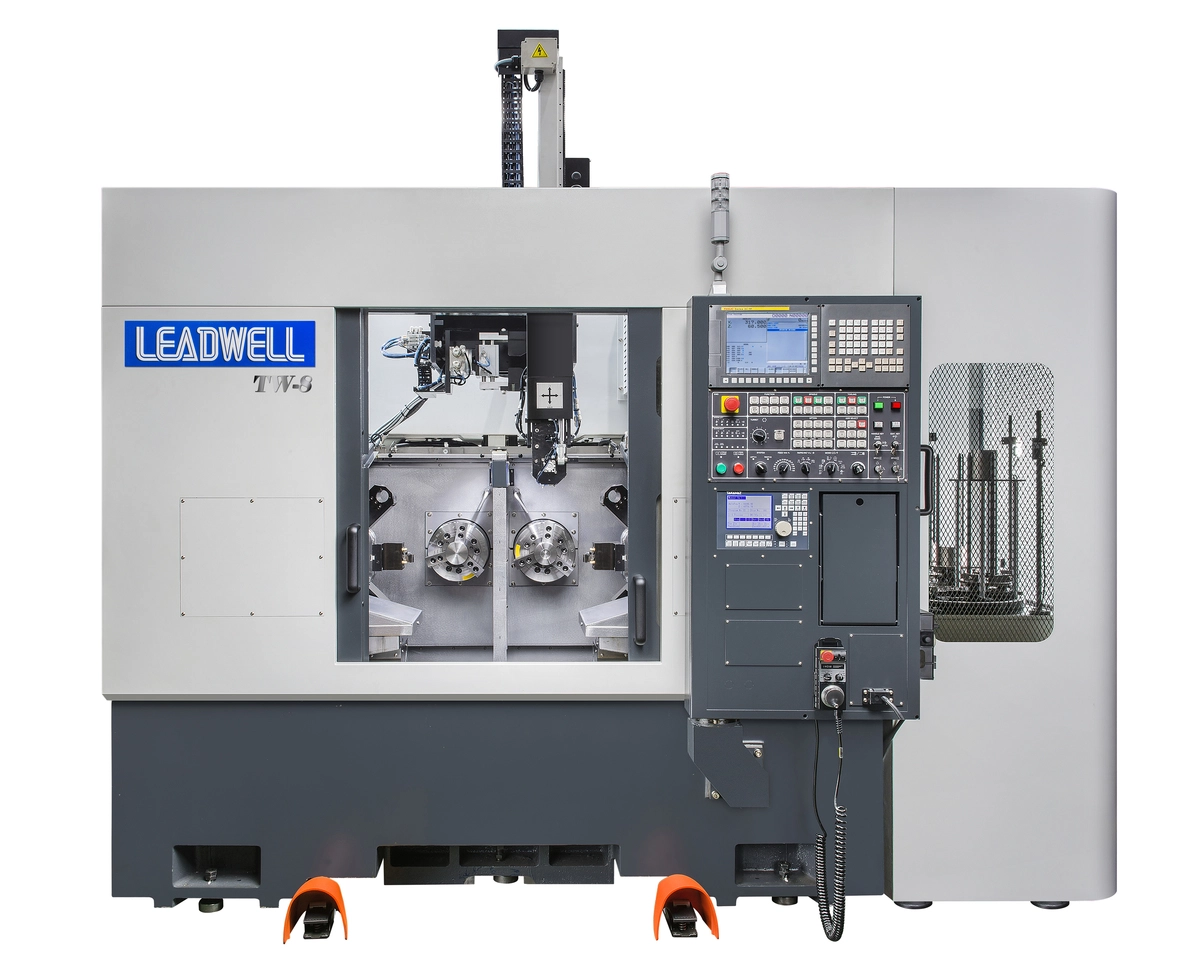

Dual Spindle & Turret Turning Center
MODEL: TW-8
Max. swing: 290 (11.42) mm(in)
Max. turning diameter: 290(11.42) mm(in)
Max. turning length: 160 (6.3) mm(in)
X axis: 145+10 (8.86+0.59) mm(in)
Z axis: 165 (31.1) mm(in)
Spindle speed: 4500 rpm
Chuck size: 208 (8”) mm(in)
Type of spindle speed: A2-6
Through spindle hole diameter: 61 (2.4) mm(in)
Spindle motor type: a8-7000i FANUC
Spindle motor power: 11 (14.7) Kw(HP)
Number of tool station: 8 pcs
Shank height for square tools: 25(1) BMT55 mm(in)
Shank diameter of boring bar: 40 (1.5) BMT55 mm(in)
Index time(adjacent tools): 0.3 sec
Index time (180deg): 0.8 sec
X axis rapid traverse: 24 (31.496) m/min(in)
Z axis rapid traverse: 24 (31.496) m/mm(in)
Positioning X/Z VDI3441: 0.01/1000 mm
Repeatability X/Z VDI3441: 0.007/1000 mm
X/Z axis motor: a8-3000i / 1.6 (2.1) Kw(HP)
Power requirement 6200: 40 KVA
Machine size (LxWxH): 2220x2200x2400 mm
Machine weight: 6200 kg
