Vertical / Heavy Duty High Production

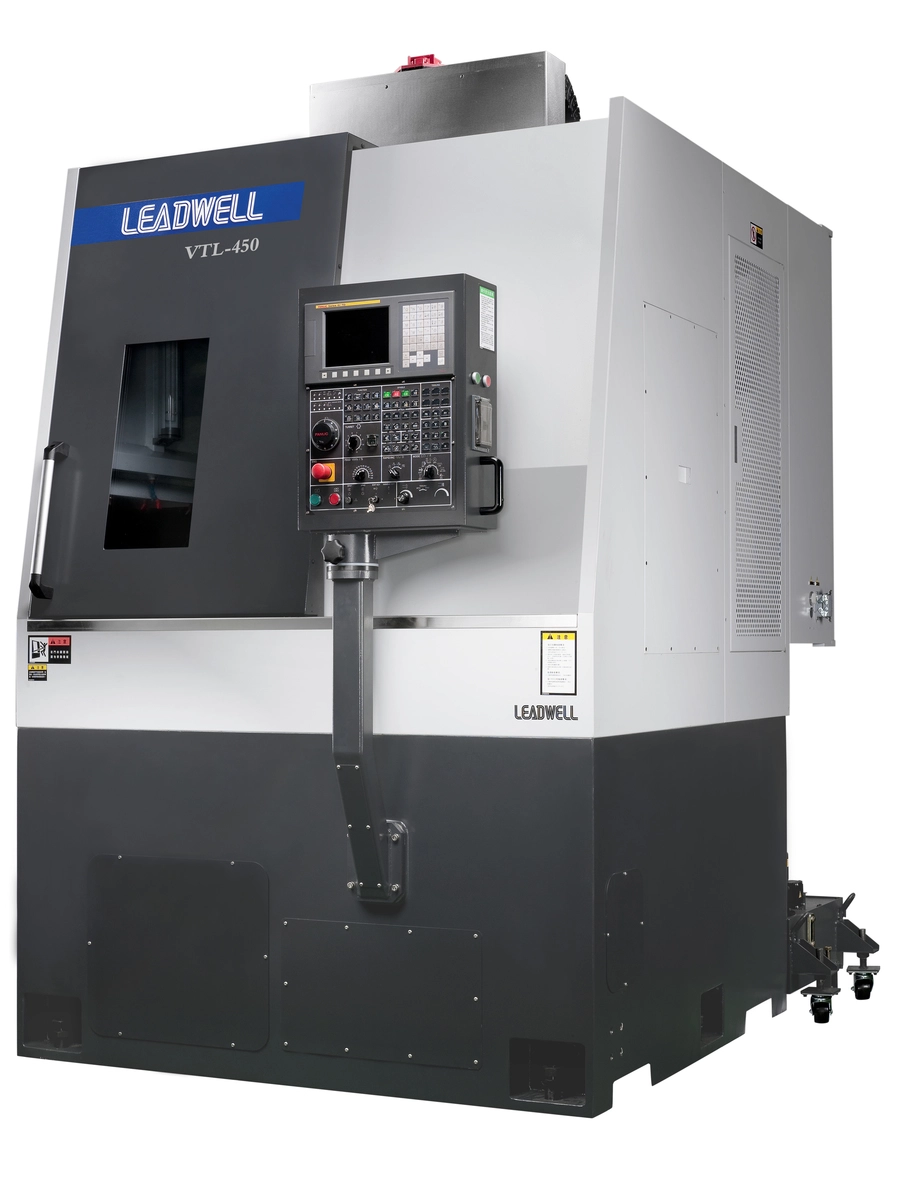

MODEL: VTL-450
Max. swing: 650 (25.5) mm(in)
Max. turning diameter: 460 (18.1) mm(in)
Max. turning length: 500 (19.6) mm(in)
Max. workplace weight: 1500(3307) kg(lb)
X axis travel: 230+20 (9+0.7) mm(in)
Z axis travel: 500 (19.6) mm(in)
Chuck size: 305 (12) mm(in)
Spindle speed: 2500 rpm
Spindle nose: A2-8
Number of tool stations: 12 pcs
Shank height for square tool: 25(1) mm(in)
Shank diameter of boring tool: 40 (1.5) mm(in)
Rapid rate (X-Axis): 20 m/min(ipm)
Rapid rate (z-Axis): 24 m/min(ipm)
X/Z/Y axis motor: 3/4 (4/5.4) kw (hp)
Machine size (LxWxH): 2850x1750x3185 mm
Machine weight: 7000 kg
