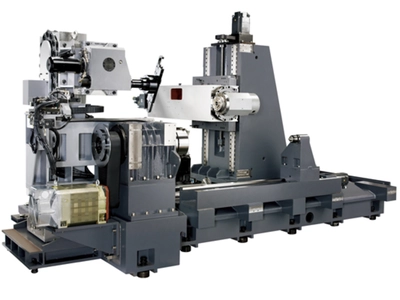

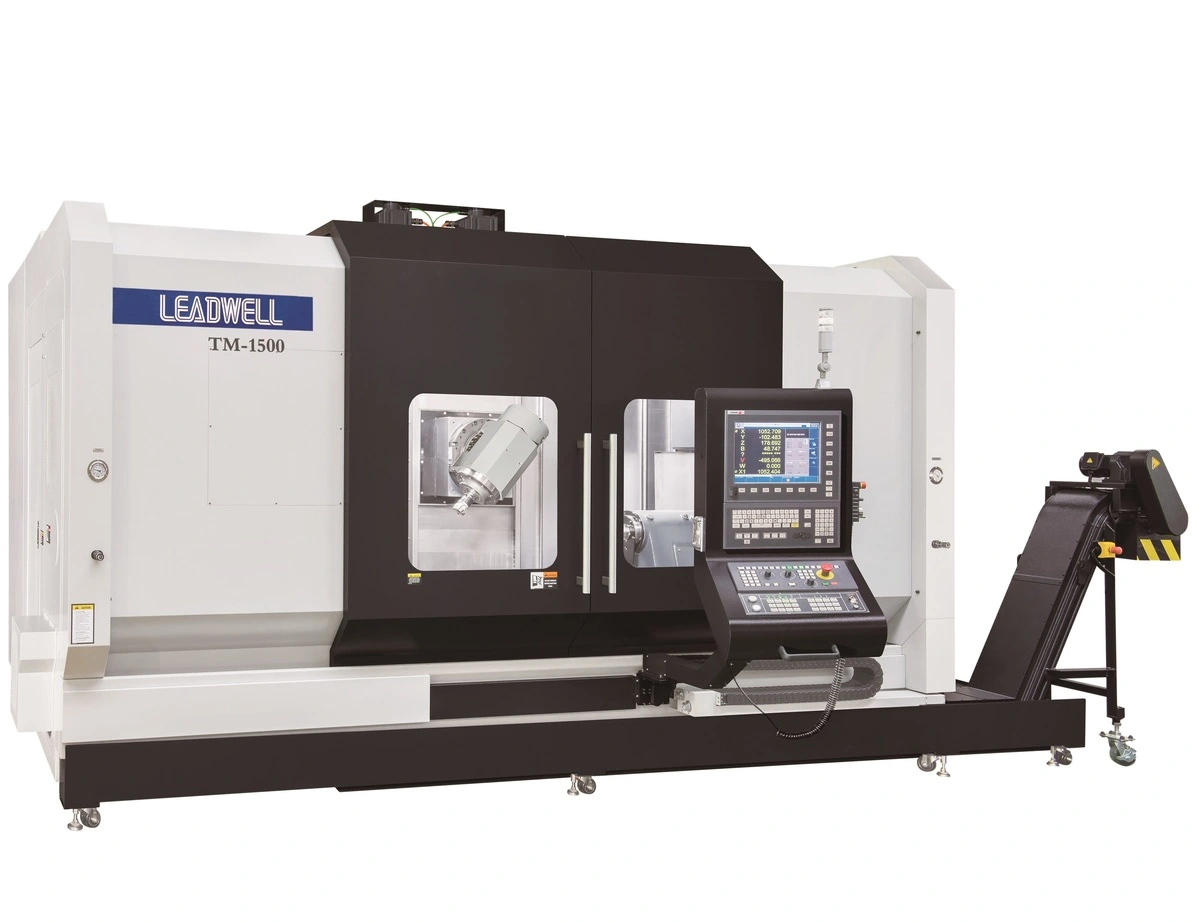

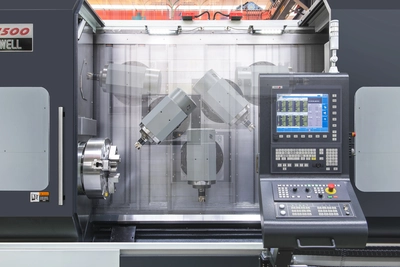

Multi-tasking Machine
MODEL: TM-1500
: FAGOR/SIEMENS
Max. swing: 790 (31) mm(in)
Max. turning diameter: Ø780 (30.7) mm(in)
Max. turning length: 1500 (59) mm(in)
Bar capacity: 115 (4.5) mm(in)
X axis travel: 730+40 (28.7+1.57) mm(in)
Z axis travel: 1550 (61) mm(in)
Y axis travel: ±200 (7.87) mm(in)
B axis: 240°(-10°+230°) Deg
Spindle speed (chuck): 1500 rpm
Chuck size (chuck): 254 (10)/315(12)/381(15) mm(in)
Spindle nose: A2-11
Spindle motor power (chuck): 37-56 (49-75) /30 (40) KW (HP)
Spindle speed (electro): 12,000 min
Spindle nose (electro): Capto C6 mm(in)
Spindle motor power: 25 (33.5) KW (HP)
Max. spindle torque (electro): 75 S1 / 100 S6 Nm (ft.lbf)
Angular stroke: 240° (-10°+230°) Deg
Brake clamping angular: 0.0001” Deg
Max torque motor torque (continuous): 1080 Nm
Tool shank: Capto C6
Tool storage capacity: 60
X axis rapid traverse: 20 (65.616) m (ft) / min
Z axis rapid traverse: 30 (98.425) m(ft/min
Y axis rapid traverse: 20 (65.616) m (ft)/min
Machine size: 7000x4500x2900 mm
Machine weight: 18000 kg
