PO LY GIM
CNC Lathe
www.polygim.com.tw

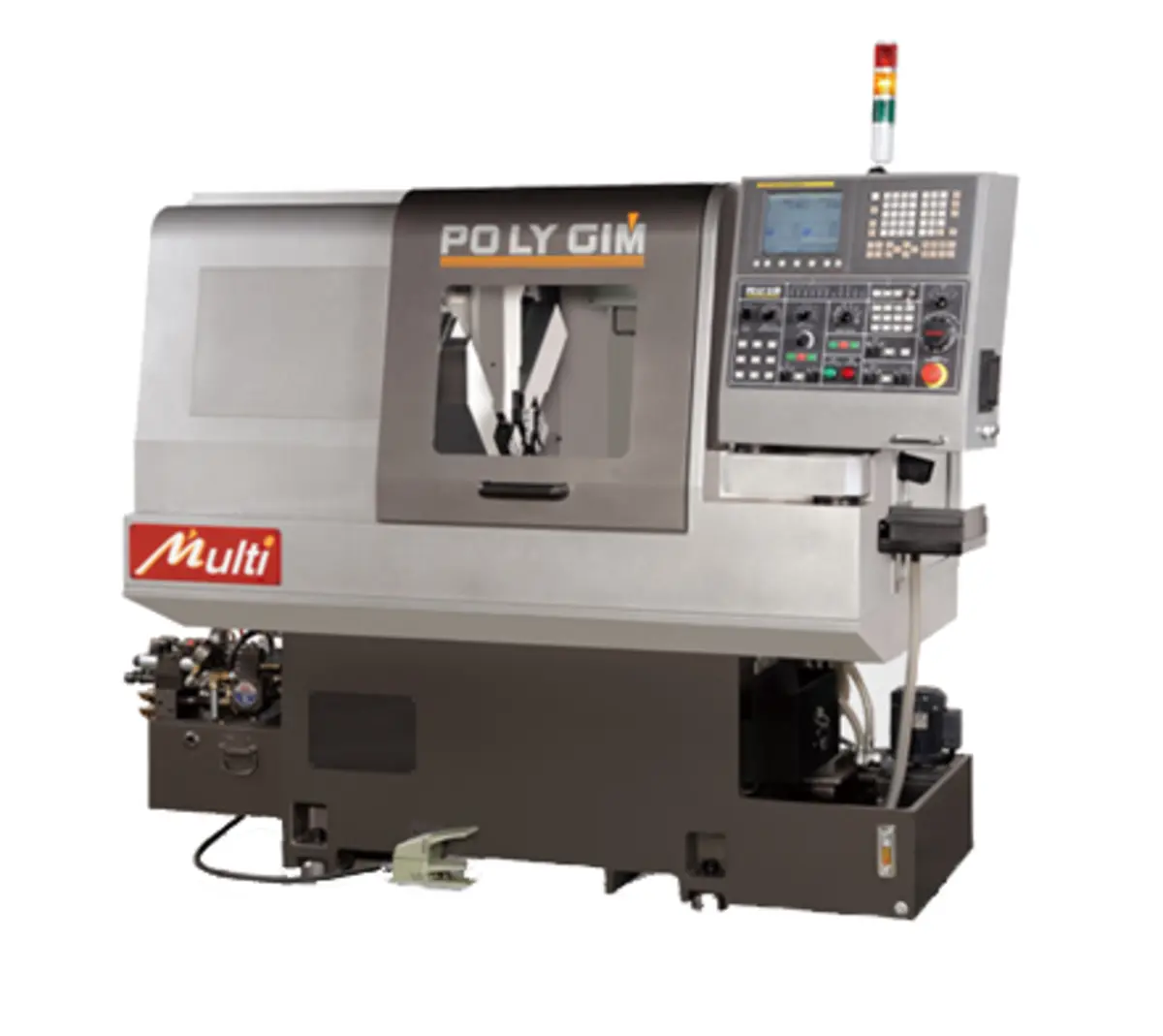

Items: MULTI 25
Max. Machining Dia.: 26 mm
Max. Machining Length: Bar diameter x3
Max. Cross Travel (X Axis): 170 mm
Max. Longitudinal Travel (Z Axis): 150 mm
Bore of Spindle: 34 mm
Max. Bar Feeding Dia.: 26 mm
Type of Collet: 161 E
Spindle Motor: 2.2 kw
Spindle Speed Range: 100-5000 r.m.p.
Sub-Spindle Motor (Option): 1.1 kw
Sub-Spindle Speed Range (Option): 100-5,000 r.m.p.
Rapid Traverse Speed (X & Z Axis): 15 m/min
Min. Input Unit: 0.001 mm
Cutting Tool Size: 16 mm
Max. Bore Size of Tool: 20 mm
X1/Z1/Z2/A2/Z3 Axes Motor: 0.75 kw
A3 Axes Motor (Option Sub-Spindle): 0.75 kw
X2/Y2/X3 Axes Motor: 0.5 kw
Number of Multi-Spindle Tools: 3 pc
Coolant Pump Motor: 1/2 H.P.
Hydraulic Pump Motor: 1 H.P.
Machine Size (L x W x H): 1658 x 1362 x 1530 mm
Machine Size-Option Sub-Spindle (L x W x H): 2000 x 1359 x 1657 mm
Machine Net Weight (Without Chip Conveyor): 1220 kgs
Machine Net Weight (Option Sub-Spindle, Without Chip Conveyor): 1880 kgs
