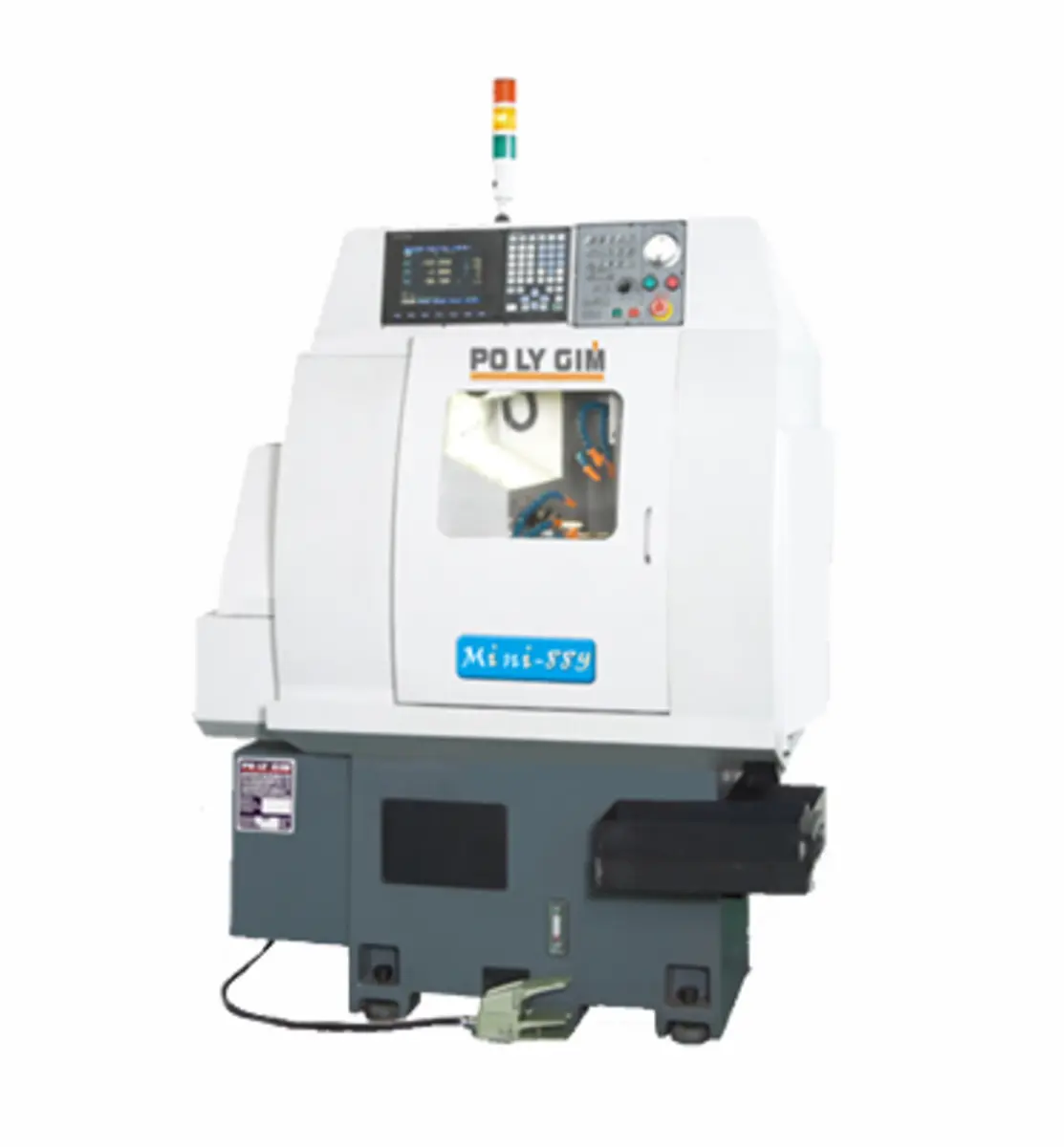

Mini CNC Lathe with Y-Axis
www.polygim.com.tw
Items: MINI-88Y
Max. Machining Dia.: 25 mm
Max. Machining Length: Bar diameter x 3
X Axis: 165 mm
Z Axis: 150 mm
Y Axis: 148 mm
Bore of Spindle: 34 mm
Bar Capacity: 26 mm
Spindle Nose: 85 mm
Collet Type: 161 E / 25 mm
Spindle Motor: 2.2 kw / 3 H.P.
X, Z, Y Axis Motor: 0.75 kw
Cross and Front off-Center Driven Tools Motor: 0.75 kw
Spindle Speed: 100-6000 r.p.m.
Cross Spindle Speed: 200-6000 r.p.m.
Front off-Center Driven Tool Speed: 200-6000 r.p.m.
Spindle Indexing: 5 degrees
Rapid Traverse Speed (X, Z, Y Axis): 18 m/min
Min. Input Unit: 0.001 mm
O.D. Tooling: 6
O.D. Tool Dimension: 12 X 12 X 100
I.D. Tooling: 4
I.D. Tool Dimension: 20 mm
I.D. Tool Max. Drilling Dia.: 20 mm
I.D. Tool Max. Tapping Dia.: M8
Cross Driven Tooling: 4
Cross Driven Tooling Dimension: 10 mm (ER16)
Cross Driven Tool Max. Drilling Dia.: 10 mm
Cross Driven Tool Max. Tapping Dia.: M8
Front off-Center Driven Tooling: 4
Front off-Center Driven Tool Dimension: 10 mm (ER16)
Front off-Center Driven Tool Max. Drilling Dia.: 10 mm
Front off-Center Driven Tool Max. Tapping Dia.: M8
Coolant Pump: 1/2 H.P.
Hydraulic Pump: 1/2 H.P.
Dimension: 1420 x 1210 x 1710 mm
Weight: 1158 kgs
