FEATURES
FAGOR 8055i FL TC CONTROL W ITH 10.4” LCD MONITOR
FAGOR SERVO SYSTEM WITH 25KW REGENERATIVE POWER SUPPLY
FULLY ENCLOSED SPLASH GUARD WiTH INTERLOCK SAFETY DEVICE
10” HYDRAULIC CHUCK MANUAL TOOL SETTER (Renishaw Probe)
PARTS CATCHER
HIGH PRESSURE COOLANT SYSTEM
AUTO LUBRICATION SYSTEM
HEAT EXCHANGER
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
M30 PROGRAM STOP LIGHT
EXTRA SOFT JAWS
WORK LAMP

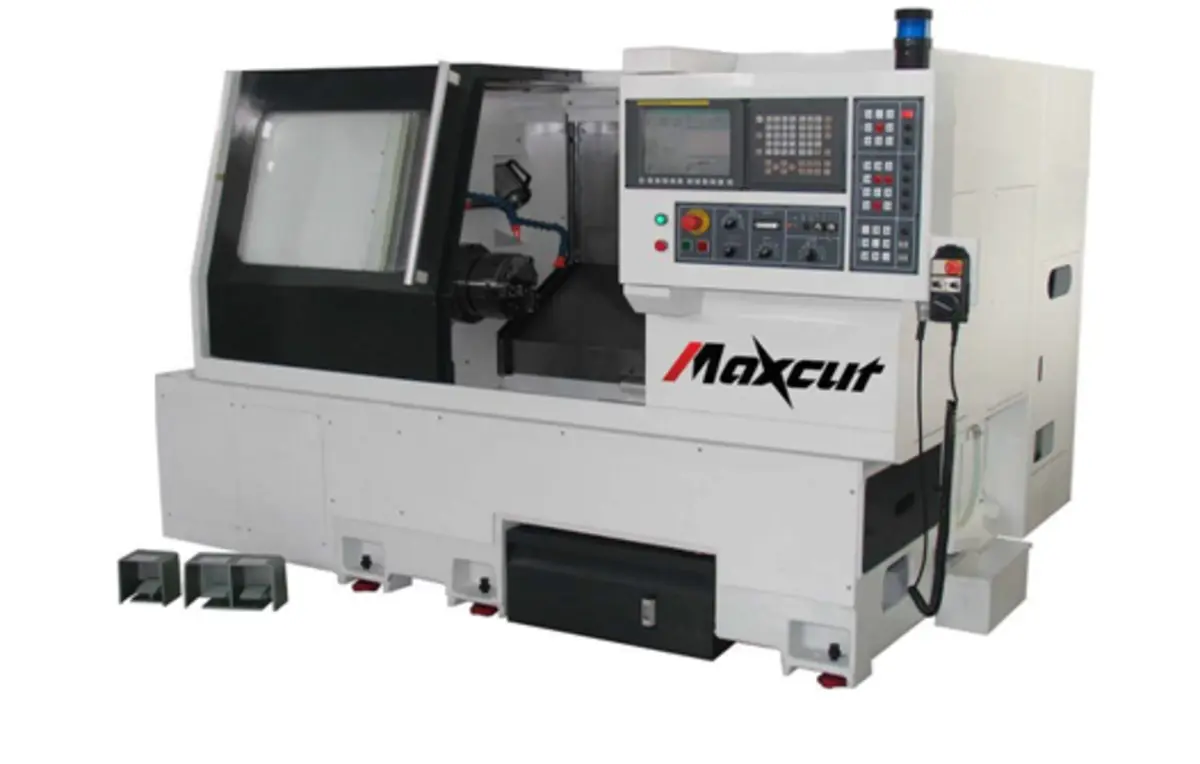

ITEM: MAXCUT MTC-25/0920
CAPACITY UNIT
Swing over bed: 508 (20.00) mm (in)
Swing over cross slide: 230 (09.05) mm (in)
Max. turning diameter (with turret): 305 (12.00) mm (in)
Max. turning length (with chuck): 508 (20.00) mm (in)
Bar Capacity: 65 (2.56) Kg (lb)
TRAVEL
X axis: 215 (8.46) mm (in)
Z axis: 514 (20.25) mm (in)
SPINDLE
Spindle nose: A2-6
Spindle hole diameter: 65 (2.56) mm (in)
Max. spindle speed: 4000 RPM
Spindle taper: 1/20
Spindle motor – standard: 11 (15) KW (HP)
Hydraulic chuck size: 200 (8) mm (in)
Hydraulic pressure - max.: 30 (450) kgf/cm2 (PSI)
TURRET
Turret type-Hydraulic: LS-200
Tool Numbers: 12
Boring bar dia.: 32 (1.26) mm (in)
Square tool holder: 25 x 25 (1 x 1) mm (in)
AXIS
X/Z axis rapid feed: 30 (1181.10) m/min(ipm)
X axis servo motor: 11.6 (8.56) Nm (Ft-Lbs)
Z axis servo motor: 11.6 (8.56) Nm(Ft-Lbs)
ACCURACY
Positioning accuracy: 0.01 (0.0004) mm (in)
Repeatability accuracy: 0.005 (0.0002) mm (in)
TAILSTOCK
Tailstock quill dia.: 65 (2.56) mm (in)
Tailstock travel: 425 (16.73) mm (in)
Quill taper: 4 M.T.
Quill travel: 50 (1.97) mm (in)
MACHINE SIZE
Length with Chip conveyor: 3280 (129.13) mm (in)
Width: 1820 (71.65) mm (in)
Height: 1680 (66.14) mm (in)
Machine weight: 3200 (7040) Kgs (lbs)
