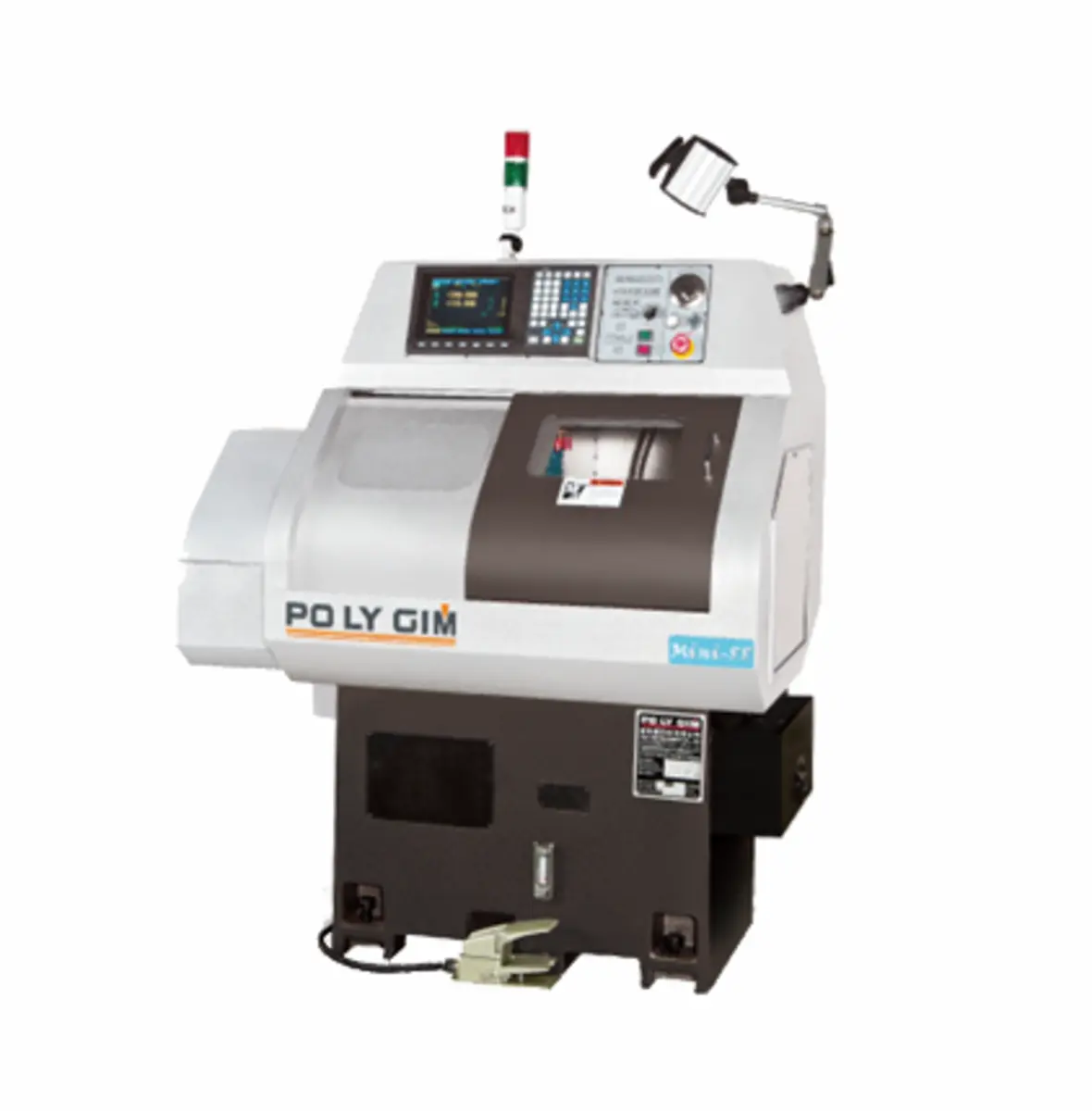

Mini-88

PO LY GIM
Mini CNC Lathe
www.polygim.com.tw

Items: MINI-88
Max. Machining Dia.: 60 mm (with chuck) 26 mm (with collet chuck)
Max. Machining Length: 120 mm
Swing Over Cross Slide: 120 mm
Max. Cross Travel (X Axis): 170 mm
Max. Longitudinal Travel (Z Axis): 170 mm
Bore of Spindle: 34 mm
Max. Bar Feeding Dia.: 26 mm
Spindle Nose: Ø85 mm
Hydraulic Chuck: 4"
Spindle Motor: 2.2 kw / 3 H.P.
Spindle Speed Range: 100-5000 r.p.m.
Rapid Traverse Speed (X & Z Axis): 15 m/min
Min. Input Unit: 0.001 mm
Cutting Tool Size: 16 mm
Max. Bore Size of Tool: Ø20 mm
Coolant Pump Motor: 1/4 H.P.
Machine Dimension (L x W x H): 1200 x 1000 x 1500 mm
Machine Net Weight: 1058 kgs
