FEATURES
Fanuc F-0iTD or Fagor 8055
A2-11 mount 12” hydraulic chuck
4.064” spindle bore/bar capacity 4.06”
High/low pressure of chuck
Hard jaws ( one set)
Soft jaws (one set)
Single point main spindle orientation
Tool setter
Programmable tailstock
High pressure pump
Set of tool holders
Chain type chip conveyor and bucket
[SPECIFICATIONS]

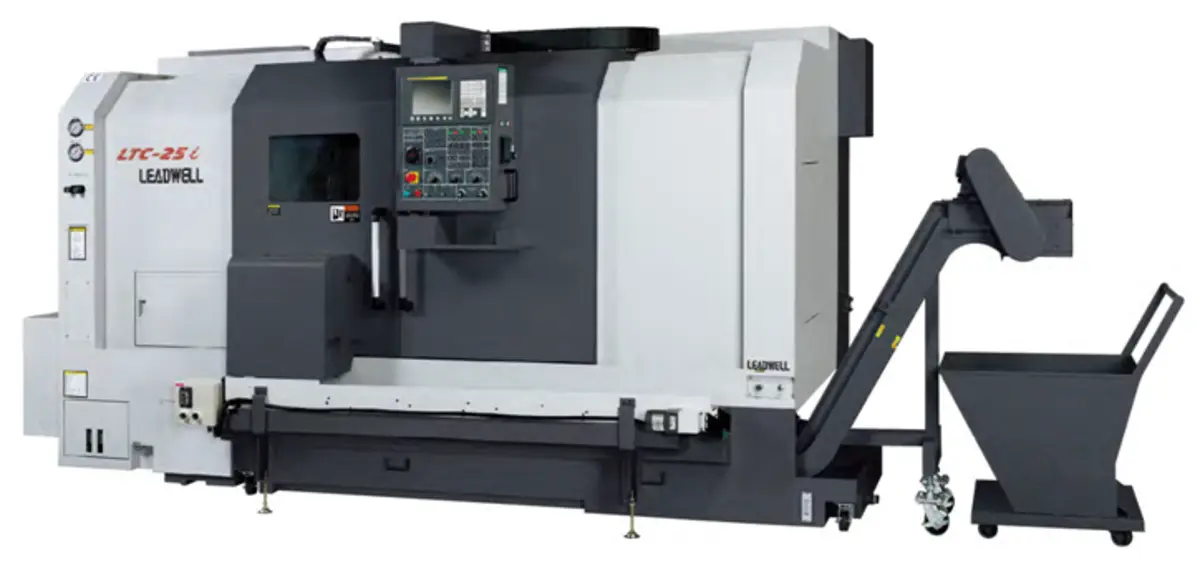

ITEM: LTC-25iL/1500
CAPACITY UNIT
Max Swing: 670 (26.3) mm (in)
Max turning diameter: 450 (17.7) mm (in)
Max turning length: 1550 (61) mm (in)
Bar capacity: 103 (4.06) mm (in)
TRAVEL
X axis: 225+25 (8.8+1) mm (in)
Z axis: 1590 (62.6) mm (in)
SPINDLE
Spindle speed: 2600 rpm
Chuck size: 305 (12) mm (in)
Spindle nose: A2-11
Spindle motor power: 18.5 (24.8) KW(HP)
TURRET
Number of tool stations: 12 pcs
Shank height for square tool: 25 (1) mm (in)
Shank diameter for boring bar: 40 (1.5) mm (in)
FEEDRATE
X axis: 15000 (590.5) M/min(ipm)
Z axis: 20000 (787.4) M/min(ipm)
FEED MOTORS
X axis: a c12B-2000i/1.8 (2.4HP) KW(HP)
Z axis: a 22i-3000i/4.0 (5.4HP) KW(HP)
TAILSTOCK
Quill diameter: 100 (3.9) mm (in)
Quill inside taper: 5 M.T.
MACHINE SIZE
Total machine weight: 8100 kg
Machine length: 4370 (172) mm (in)
Machine width: 1930 (76) mm (in)
Machine height: 2106 (82.9) mm (in)
Power requirement: 40 KVA
[ACCESSORIES]
STANDARD ACCESSORIES: OPTIONAL ACCESSORIES
Metric disc: Chip bucket Inch disc
Manual tailstock: Two speed gearbox Tool setter
Buzzer: Collect chuck Manual steady rest
Heat exchanger: Mist separator Hydraulic steady rest
Full enclosed splash guard: Oil skimmer Alarm lamp
jaw open center chuck: H.T.D belt Air conditioner
Foot switch: Transformer Bar feeder
Wide angle V-belt: Transformer Auto door
VDI disc (ForLTC-25iM): EWS Turret BMT-65 Spindle air outer blow
: Chip conveyor High pressure pump
