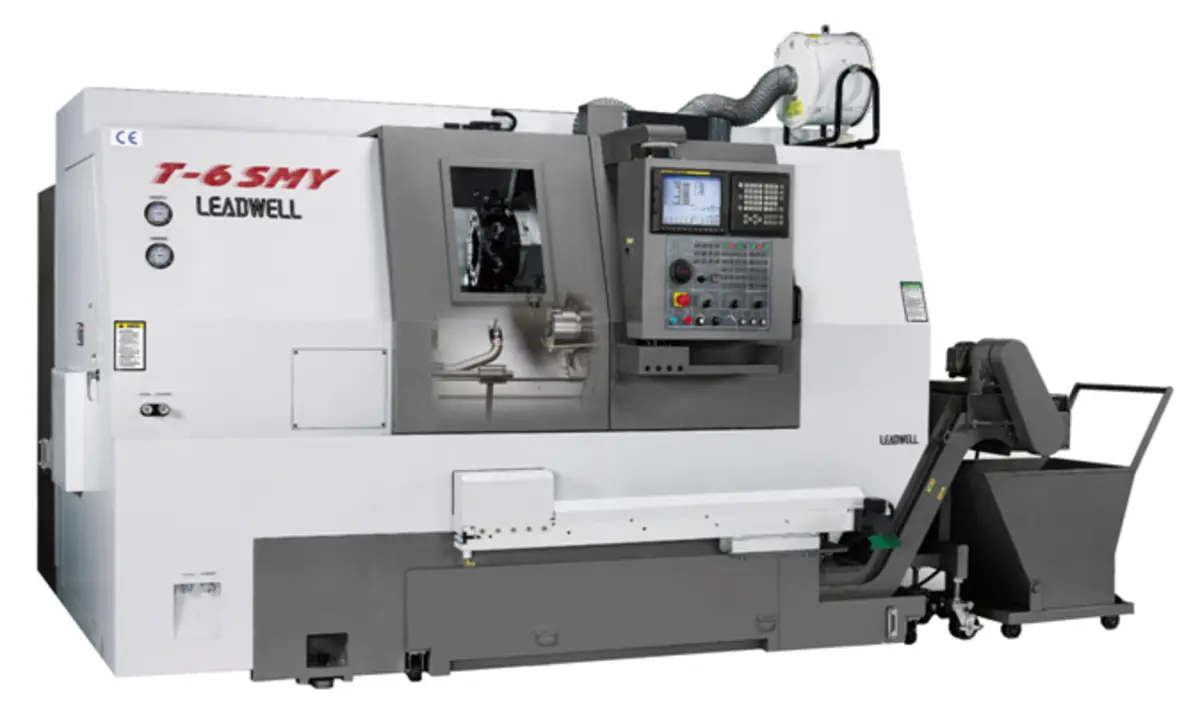

FEATURES
Fully enclosed guarding, Work light, Metric disc, 3” jaw open center chuck, Foot peddle switch, Wide angle v-belt
VDI disc, Bullet proof glass, Spindle side coolant nozzle, C axis
[SPECIFICATIONS]
CAPACITY Unit
Max Swing: 450 (17.7) mm(in)
Max turning diameter: 380 (14.9) mm(in)
Max turning length: 458 (18) mm(in)
Bar capacity: 52 (2) mm(in)
TRAVEL
X axis: 190+15 (7.48+0.59) mm(in)
Y axis: ±50 (±1.96) mm(in)
Z axis: 450 (17.7) mm(in)
Z2 axis: 500 (19.68) mm(in)
SPINDLE
Spindle speeds range: 6000 rpm
Chuck size: 156 (6) mm(in)
Spindle motor power: 7.5 (10) KW(HP)
Min. spindle indexing increment: ±0.001 --
SUB SPINDLE
Sub spindle speeds range: 6000 rpm
Sub chuck size: 156 (6) mm(in)
Sub spindle motor power: 7.5 (10) KW(HP)
Sub spindle feed motor: 1.6 (2.1) KW(HP)
TURRET
Number of tool stations: 12 pcs
Shank height for square tool: VDI 30 20(0.8) mm(in)
Turret indexing time (adjacent tool): 0.4 sec
Rotary tool spindle speed range: axis units: 4000 rpm
FEEDRATE
X/Z/Y axis rapid traverse: 15000/30000/7500 (590.5/1181/295) mm(in)
MOTORS
X/Z/Y axis motor: 1.6 (2.1) Kw(HP)
MACHINE SIZE
Total machine weight: 4600 kg
Machine length: 3014 (118.6) mm(in)
Machine width: 2060 (81.1) mm(in)
Machine height: 2000 (78.7) mm(in)
Power requirement: 40 KVA
[OPTIONAL ACCESSORIES]
Tool setter
Parts catcher
Alarm lamp
Bar feeder
Auto door
Tool tip air blow nozzles
High pressure coolant
Collet chuck
Oil mist collector
Linear scales
Chuck with high/low pressure
Oil skimmer
Transformer
Air conditioner in cabinet
Chip conveyor outside machine
Chip bucket
