FEATURES
Fagor control 8055 or Fanuc 0i-TD with 10.4"LCD + Manual guide
A2-11 18” hydraulic chuck with Hard/soft jaws
Programmable tail-stock with hydraulic quill
Two speed gearbox for heavy-duty jobs
High/low pressure of chuck
Chain type chip conveyor
Main spindle orientation
Spindle air outer blow
High pressure pump
Tool Setter
[SPECIFICATIONS]

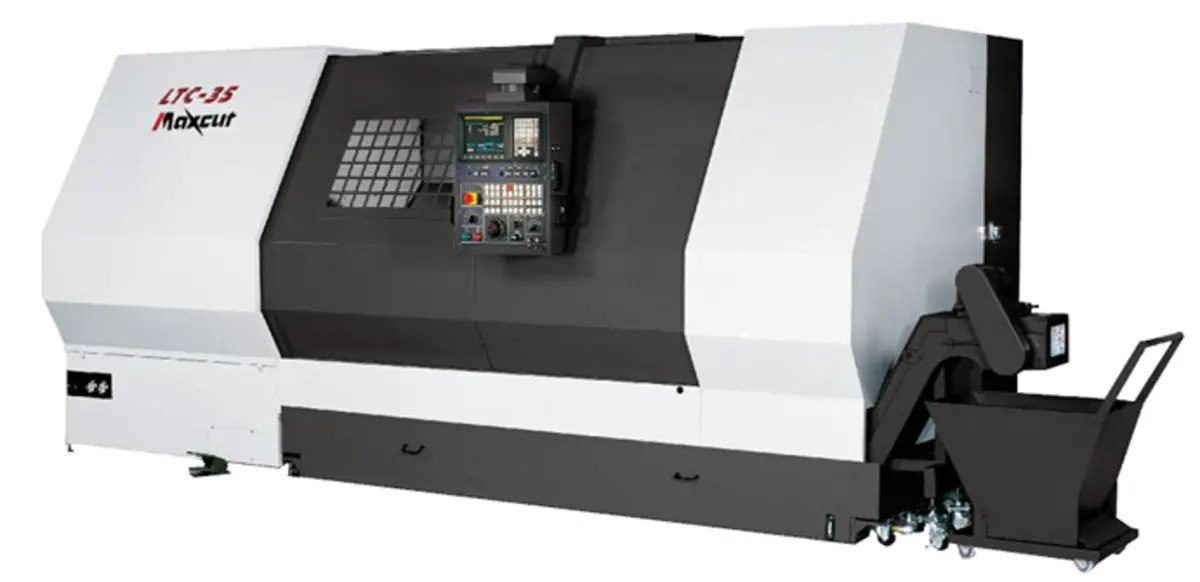

ITEM: LTC4-35/2100
CAPACITY UNIT
Max. swing: 800 (31.5) mm (in)
Max. turning diameter: 600 (24.0) mm (in)
Max. turning length: 2100 (82.6) mm (in)
Bar capacity: 115 (4.5 mm (in)
Max workpiece weight (w/o tailstock): 1200 (2646) Kg (lb)
TRAVEL
X axis: 300 (11.8”) + 20 (0.7”) mm (in)
Z axis: 2100 (82.6) mm (in)
Y axis: -- mm (in)
SPINDLE
Spindle speed range: 1500 rpm
Chuck size: 460 (18) mm (in)
Hole through spindle: 115 (4.5) mm (in)
Spindle power: 60 HP
TURRET
Number of tool stations: 12
Shank height for square tools: 32 (1.25) mm (in)
Shank height for boring tools: 50 (2)/ OPT 63 (2.5) mm (in)
Index time (adjacent tools): 1.7 sec
Index time (180): 4.5 sec
FEEDRATE
X axis: 15 M/min
Z axis: 20 M/min
TAILSTOCK
Quill movement type: Auto
Quill stroke: 125 (4.9) mm (in)
Quill diameter: 110 (4.3) mm (in)
Quill inside taper: 5 M.T.
MACHINE SIZE
Power requirement: 55 KVA
Machine length: 5380 mm
Machine width: 2090 mm
Machine height: 2192 mm
Total machine weight: 10200 kg
[ACCESSORIES]
STANDARD ACCESSORIES: OPTIONAL ACCESSORIES
RS232 interface: VDI tool disc
Fully enclosed guarding: Tool setter
Work light: Status lights
Metric or inch tool disc: Tool tip air blow system
Heat exchanger: High pressure coolant
Levelling screws: Oil mist collector
Maintenance tool box: Chip conveyor
Buzzer: Chip bucket
3” jaw open center chuck: Manual steady rest
Chuck foot switch: Auto steady rest with hydraulics
Programmable tailstock: Linear scales
Wide angle v-belt: Oil skimmer
