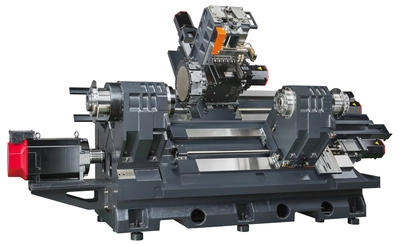

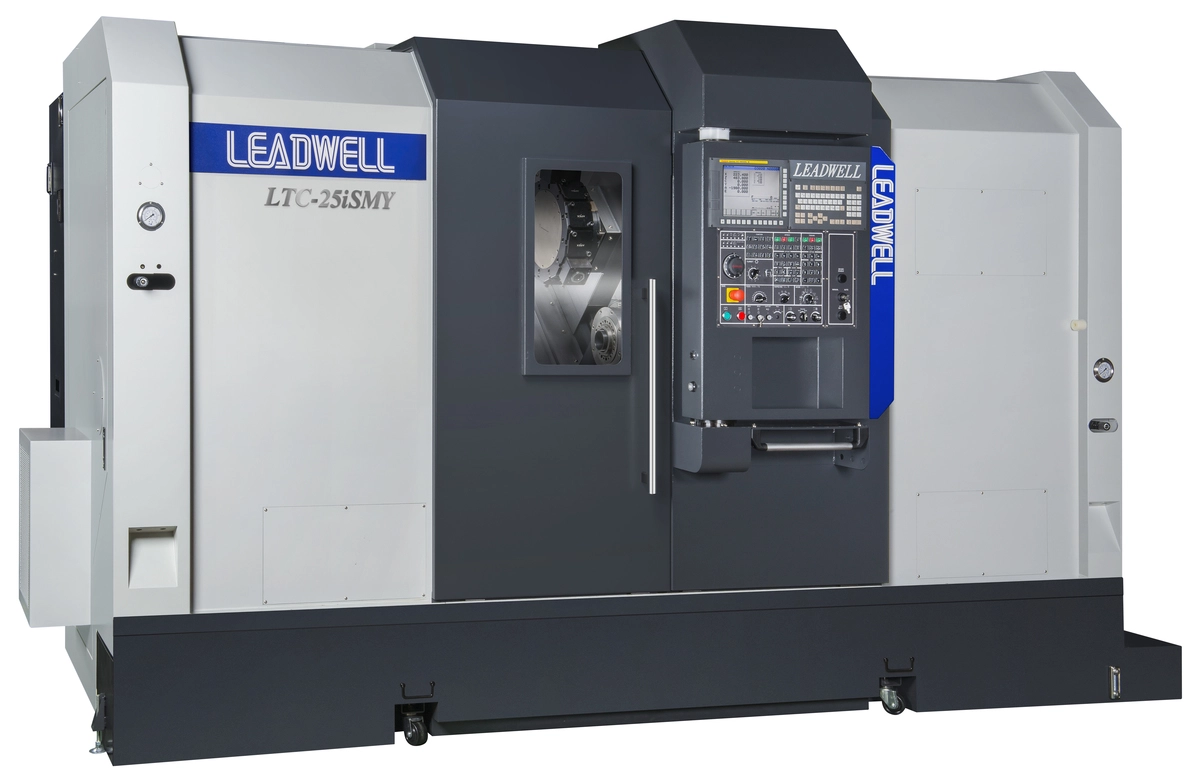

Multi-Tasking Turning Center
MODEL: LTC-25iSMY
Max. swing: 590 (23.2) mm(in)
Max. turning diameter: 430 (16.9) mm(in)
Max. turning length: 770 (30.3) mm(in)
Bar capacity: 78 (3.07) mm(in)
X axis travel: 215+10(8.5+0.4) mm(in)
Y axis travel: ±50 (±1.96) mm(in)
Z1 axis travel: 800 (31.5) mm(in)
Z2 axis travel: 780 (30.7) mm(in)
Spindle speed: 3500 rpm
Chuck size: 254 (10) mm(in)
Spindle nose: A2-8 mm(in)
Number of tool station (live stools): 12 BMT65/ DIM5480 pcs
Shank height for square tool: 25(1) BMT65 mm(in)
Shank diameter of boring bar: 40 (1.57) BMT65 mm(in)
X/Y/Z1/Z2 axis rapid traverse: 15/7.5/20/20(49.2/24.6/65.62/65.62) m/min(imp)
X/Y/Z1/Z2: 4/1.6/7/4 (5.4/2.1/9.3/5.4) Kw (HP)
Sub spindle speeds range: 4000 rpm
Sub chuck size: 210(8) mm(in)
Sub spindle nose: A2-6
Machine size (LxWxH): 5080x2085x2365 mm
Machine weight: 8900 Kg
