STANDARD ACCESSORIES
Linear scales on X,Y,Z axes
Spindle oil cooler
Automatic power off
Hydraulic system
Coolant system
Lubricator system
Alarm lamp
Work lamp
M.P.G.
RS232 interface
Heat exchanger
Chip conveyor and cart
Leveling bolts and pads
Controller manuals and circuit diagram
Operation manuals
Machine inspection lists
Splash guards (around the table)
Tool box
FANUC Oi MF
ATC: 40 tools
OPTIONAL ACCESSORIES
ATC: 60 tools
Oil mist device
Variety of controllers( FANUC / MELDAS /SIEMENS / HEIDENHAIN)
Various auxiliary work tables are available
Air conditioner for electrical cabinet
Coolant through spindle
Various work tables are available
700x700, 700x900mm (for UHM-630)
800x1000,1000x1000mm(for UHM-800)
0.001 indexing on B-axis
Oil-feed holder
Splash guard(Without Roof)
Full splash guard(With Roof)

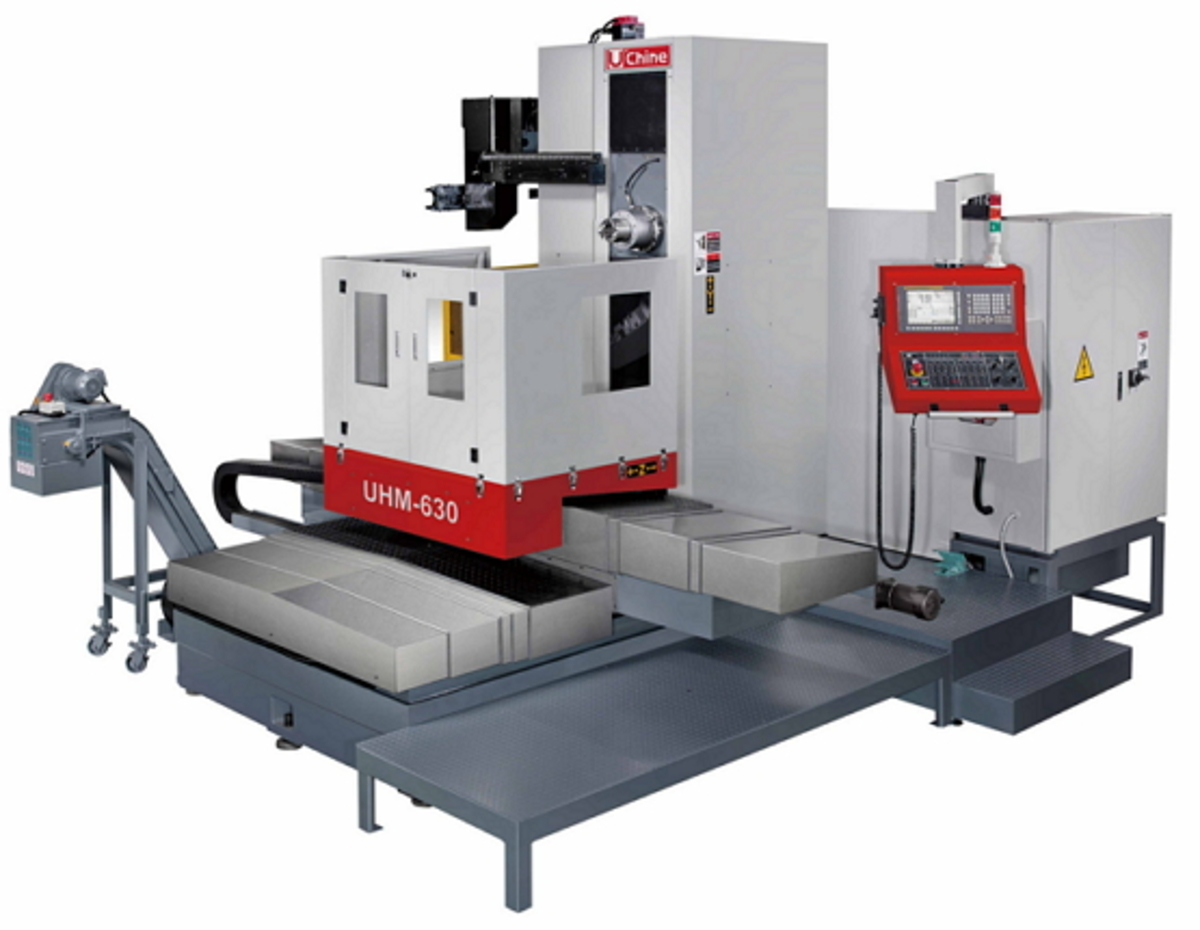

[MODEL | UNIT | UHM-800]
TABLE / Table Size: 800X800 mm
TABLE / T-Slots: 22X7 mm
TABLE / Maximum Load: 2500 kg
TABLE / Indexing Degree: 1°/360
TRAVEL / X Axis: 2000 mm
TRAVEL / Y Axis: 1500(1800) mm
TRAVEL / Z Axis: 1400(1600) mm
SPINDLE / Speed: 4000(6000) rpm
SPINDLE / Taper: 7 / 24 taper ISO.50, BT-50
DISTANCES / Spindle Center to Table: 0~1500(1800) mm
DISTANCES / Spindle Nose to Table Center: 220~1620(1820) mm
DISTANCES / Height from ground to table surface: 1325 mm
FEED RATE / Rapid Feed rate X/Y/Z: 15/12/15 m/min
FEED RATE / Minimum Setting: 0.001 mm
FEED RATE / Cutting Feed rate: 1~5000 mm/min
MOTOR / Spindle Servo Motor-cont./30min.: 11/15(15/18.5,22/26) kW
MOTOR / X/Y/Z/B Servo Motors: 4/4/4/3 kW
MOTOR / Lubricator Motor: 0.15 kW
MOTOR / Hydraulic Pump: 2.25 kW
MOTOR / Coolant Pump: 1.17 kW
MOTOR / Chip Conveyor: 0.2 kW
MOTOR / Oil Cooler Pump: 0.75 kW
ATC / No. of Tools: 40(60) pieces
ATC / Tool Selection: Absolute
ATC / Tool Change Time: 15 sec.
ATC / Max. Tool (Diameter/Length): Ø125/Ø250(Without Adjacent Tool)/Length400 mm
ATC / Max. Tool Weight: 18 kg
MISCELLANEOUS / Power Required: 45 kVA
MISCELLANEOUS / Pressurized Air: 6 kg/cm²
MISCELLANEOUS / Machine Weight(approx.): 21000 kg
