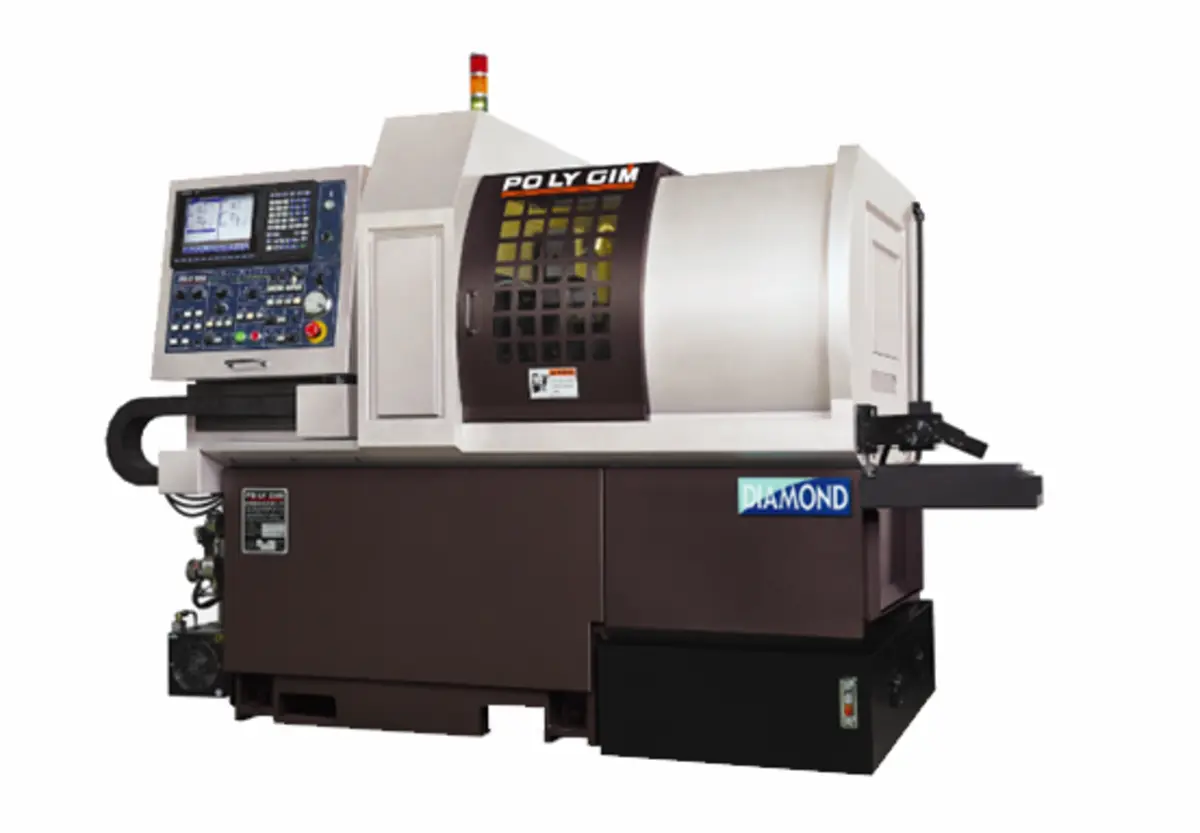

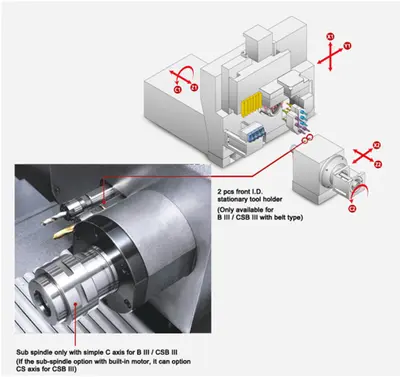

Swiss Type CNC Lathe
www.polygim.com.tw
[Items | DIAMOND 16CSB III]
Working Range / Max. Machining Dia.: 16.5 mm
Working Range / Max. Machining Length Per Chucking: 200 mm
Working Range / Max. Drilling Dia. (Main Spindle): 10 mm
Working Range / Max. Drilling Dia. (Sub Spindle): 7 mm
Working Range / Max. Tapping Dia. (Main Spindle): M8
Working Range / Max.Tapping Dia. (Sub Spindle): M6
O.D.Tooling / Number of Tools: 6
O.D.Tooling / Dimension: 12 × 12 × 120
I.D. Tooling / Number of Tools: 4
I.D. Tooling / Dimension: 10 mm (ER16)
Cross Working Driven Tooling / Number of Tools: 6
Cross Working Driven Tooling / Dimension: 10 mm (ER16)
Cross Working Driven Tooling / Speed: 200-6000 r.p.m.
Front Working Driven Tooling / Number of Tools: 3
Front Working Driven Tooling / Dimension: 10 mm (ER16)
Front Working Driven Tooling / Speed: 200-6000 r.p.m.
Back I.D. Tooling / Number of Tools: 4+4
Back I.D. Tooling / Dimension: 10 mm (ER16)
Back Working Driven Tooling / Number of Tools: 3
Back Working Driven Tooling / Dimension: 7 mm (ER11)
Back Working Driven Tooling / Number of Tools: 4
Back Working Driven Tooling / Dimension: 10 mm (ER16)
Back Working Driven Tooling / Speed: 200~6000 r.p.m.
Spindle / Spindle Hole Dia.: 17 mm
Spindle / Spindle Speed: 200- 8000 r.p.m.
Spindle / Main Spindle Indexing Angle: C axis (Optional CS axis 0.001º indexing)
Back Spindle / Spindle Hole Dia.: 17 mm
Back Spindle / Spindle Speed: 200-5000 r.p.m (200-8000 r.p.m Option built-in motor)
Back Spindle / Max. Length for Front Ejection: 50 mm
Back Spindle / Sub Spindle Indexing Angle: C axis (Optional CS axis 0.001º indexing)
Rapid Traverse / X2: 24 m/min
Rapid Traverse / X1, Y1, Z1, Z2: 30 m/min
Motors / Spindle Motor: 2.2 kw
Motors / Back Spindle Motor: 2.2 kw (2.2 kw Option built-in motor)
Motors / X1 Axis Motor: 1 kw
Motors / Y1, Z1, X2, Z2 Axis Motor: 0.75 kw
Motors / Coolant Pump Motor: 1 HP
Motors / Lubrication Motor: 4 w x2
Motors / Driven Tools Motor-fixed Arm: 1.5 kw
Motors / Driven Tools Motor-back Replaced Toolholder Set: 0.4 kw
Machine Dimensions / Center Height: 890 mm
Machine Dimensions / Weight: 2030 kg
Machine Dimensions / Machine Dimension: 2440 × 1430 × 1650
Air Pressure / Air Pressure: 5 kg/cm
Air Pressure / Air Supply: 10 L/min
