Swiss Type CNC Lathe
www.polygim.com.tw

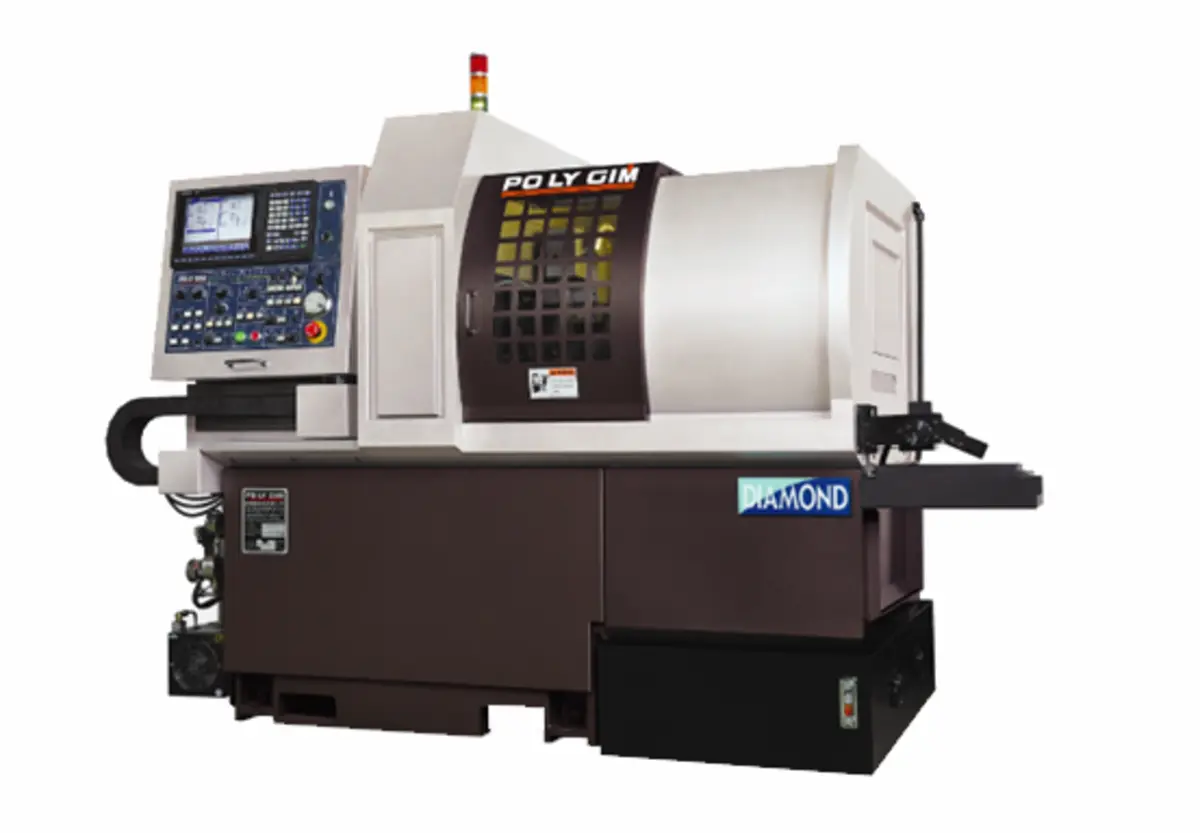

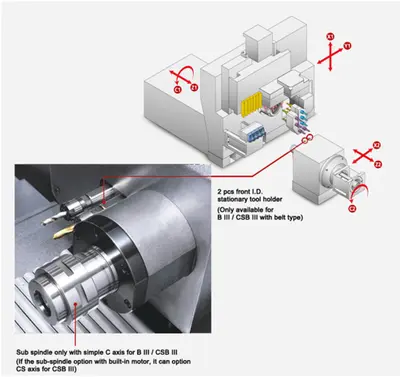

[Items | DIAMOND 42CSB II]
Working Range / Max. Machining Dia.: 42 mm
Working Range / Max. Machining Length Per Chucking: 250 mm
Working Range / Max. Drilling Dia. (Main / Sub Spindle): 15 mm
Working Range / Max.Tapping Dia. (Main / Sub Spindle): M12
O.D.Tooling / Number of Tools: 5
O.D.Tooling / Dimension: 16 × 16 × 120
I.D. Tooling / Number of Tools: 4
I.D. Tooling / Dimension: 13 mm (ER20)
Cross Working Driven Tooling / Number of Tools: 6
Cross Working Driven Tooling / Dimension: 13 mm (ER20)
Cross Working Driven Tooling / Speed: 200-6000 r.p.m.
Front Working Driven Tooling / Number of Tools: 3
Front Working Driven Tooling / Dimension: 13 mm (ER20)
Front Working Driven Tooling / Speed: 200-6000 r.p.m.
Back I.D. Tooling / Number of Tools: 4+4
Back I.D. Tooling / Dimension: 13 mm (ER20)
Back Working Driven Tooling / Number of Tools: 3
Back Working Driven Tooling / Dimension: 10 mm (ER16)
Back Working Driven Tooling / Number of Tools: 4
Back Working Driven Tooling / Dimension: 13 mm (ER20)
Back Working Driven Tooling / Speed: 3000 r.p.m.
Spindle / Spindle Hole Dia.: 45 mm
Spindle / Spindle Speed: 200- 5000 r.p.m.
Spindle / Main Spindle Indexing Angle: C axis
Back Spindle / Spindle Hole Dia.: 45 mm
Back Spindle / Spindle Speed: 200-5000 r.p.m.
Back Spindle / Max. Length for Front Ejection: 80 mm
Back Spindle / Sub Spindle Indexing Angle: C axis
Rapid Traverse: 30 m/min X1, Y1, Z1, X2, Z2
Motors / Spindle Motor: 7.5 kw
Motors / Back Spindle Motor: 5.5 kw
Motors / X1, Y1, Z1, X2, Z2 Axis Motor: 0.5 kw
Motors / Coolant Pump Motor: 1 HPx2
Motors / Lubrication Motor: 4 w x2
Motors / Driven Tools Motor-fixed Arm: 1.5 kw
Motors / Driven Tools Motor-back Replaced Toolholder Set: 0.4 kw
Machine Dimensions / Center Height: 1050 mm
Machine Dimensions / Weight: 3700 kg
Machine Dimensions / Machine Dimension: 2500 × 1280 × 1780
Air Pressure / Air Pressure: 5 kg/cm
Air Pressure / Air Supply: 10 L/min
