Swiss Type CNC Lathe
www.polygim.com.tw

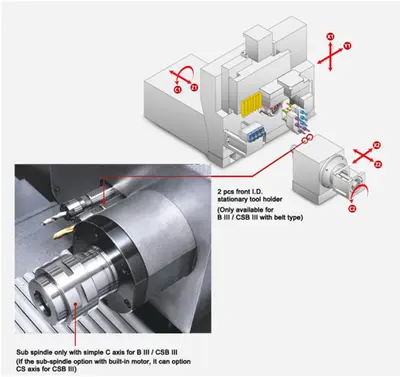

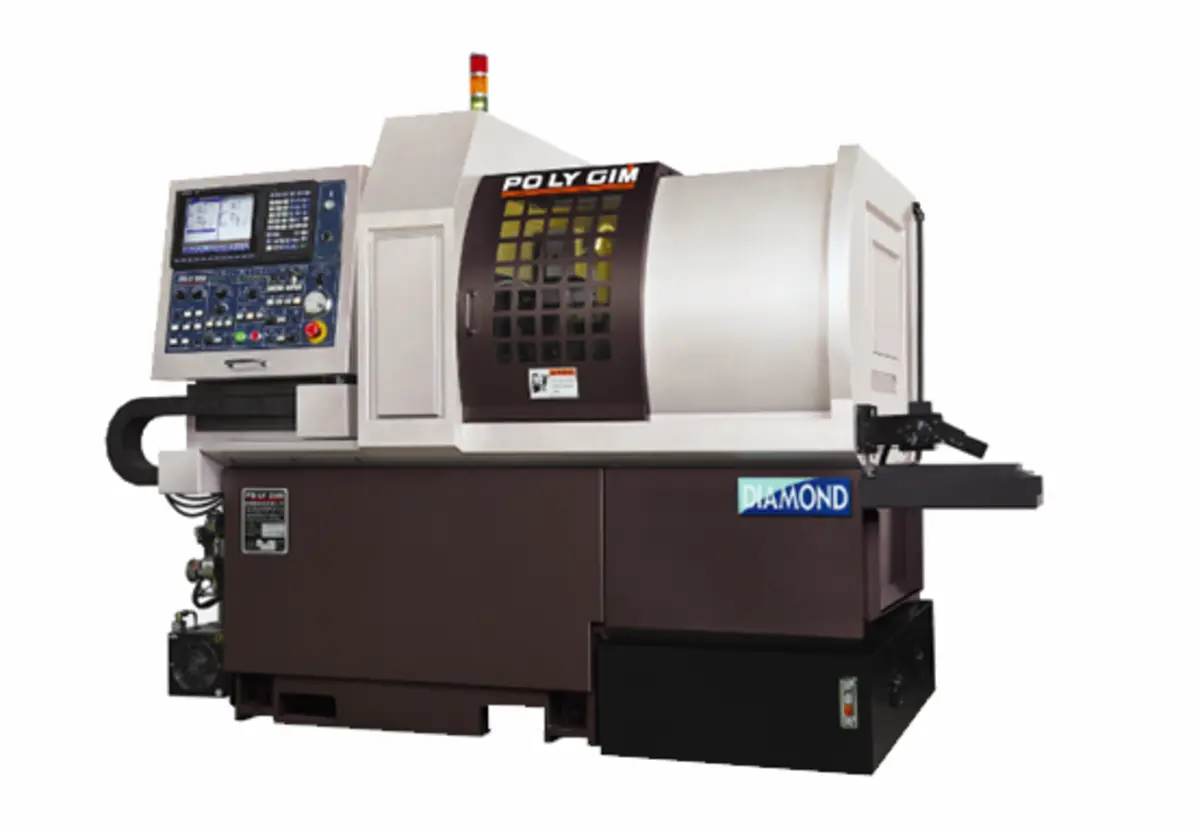

[Items | DIAMOND 20CSB II]
Working Range / Max. Machining Dia.: 20 mm
Working Range / Max. Machining Length Per Chucking: 250 mm
Working Range / Max. Drilling Dia. (Main / Sub Spindle): 12 mm
Working Range / Max.Tapping Dia. (Main / Sub Spindle): M10
O.D.Tooling / Number of Tools: 6
O.D.Tooling / Dimension: 12 × 12 ×120
I.D. Tooling / Number of Tools: 4
I.D. Tooling / Dimension: 10 mm (ER16)
Cross Working Driven Tooling / Number of Tools: 6
Cross Working Driven Tooling / Dimension: 10 mm (ER16)
Cross Working Driven Tooling / Speed: 200-6000 r.p.m.
Front Working Driven Tooling / Number of Tools: 3
Front Working Driven Tooling / Dimension: 10 mm (ER16)
Front Working Driven Tooling / Speed: 200-6000 r.p.m.
Back I.D. Tooling / Number of Tools: 4+4
Back I.D. Tooling / Dimension: 10 mm (ER16)
Back Working Driven Tooling / Number of Tools: 3
Back Working Driven Tooling / Dimension: 7 mm (ER11)
Back Working Driven Tooling / Number of Tools: 4
Back Working Driven Tooling / Dimension: 10 mm (ER16)
Back Working Driven Tooling / Speed: 3000 r.p.m.
Spindle / Spindle Hole Dia.: 22 mm
Spindle / Spindle Speed: 200- 8000 r.p.m.
Spindle / Main Spindle Indexing Angle: C axis
Back Spindle / Spindle Hole Dia.: 22 mm
Back Spindle / Spindle Speed: 200-8000 r.p.m.
Back Spindle / Max. Length for Front Ejection: 60 mm
Back Spindle / Sub Spindle Indexing Angle: C axis
Rapid Traverse: 30 m/min X1, Y1, Z1, X2, Z2
Motors / Spindle Motor: 3.7 kw
Motors / Back Spindle Motor: 3.7 kw
Motors / X1, Y1, Z1, X2, Z2 Axis Motor: 0.5 kw
Motors / Coolant Pump Motor: 1 HPx2
Motors / Lubrication Motor: 4 w x2
Motors / Driven Tools Motor-fixed Arm: 1.5 kw
Motors / Driven Tools Motor-back Replaced Toolholder Set: 0.4 kw
Machine Dimensions / Center Height: 1050 mm
Machine Dimensions / Weight: 3130 kg
Machine Dimensions / Machine Dimension: 2500 × 1280 × 1780
Air Pressure / Air Pressure: 5 kg/cm
Air Pressure / Air Supply: 10 L/min
