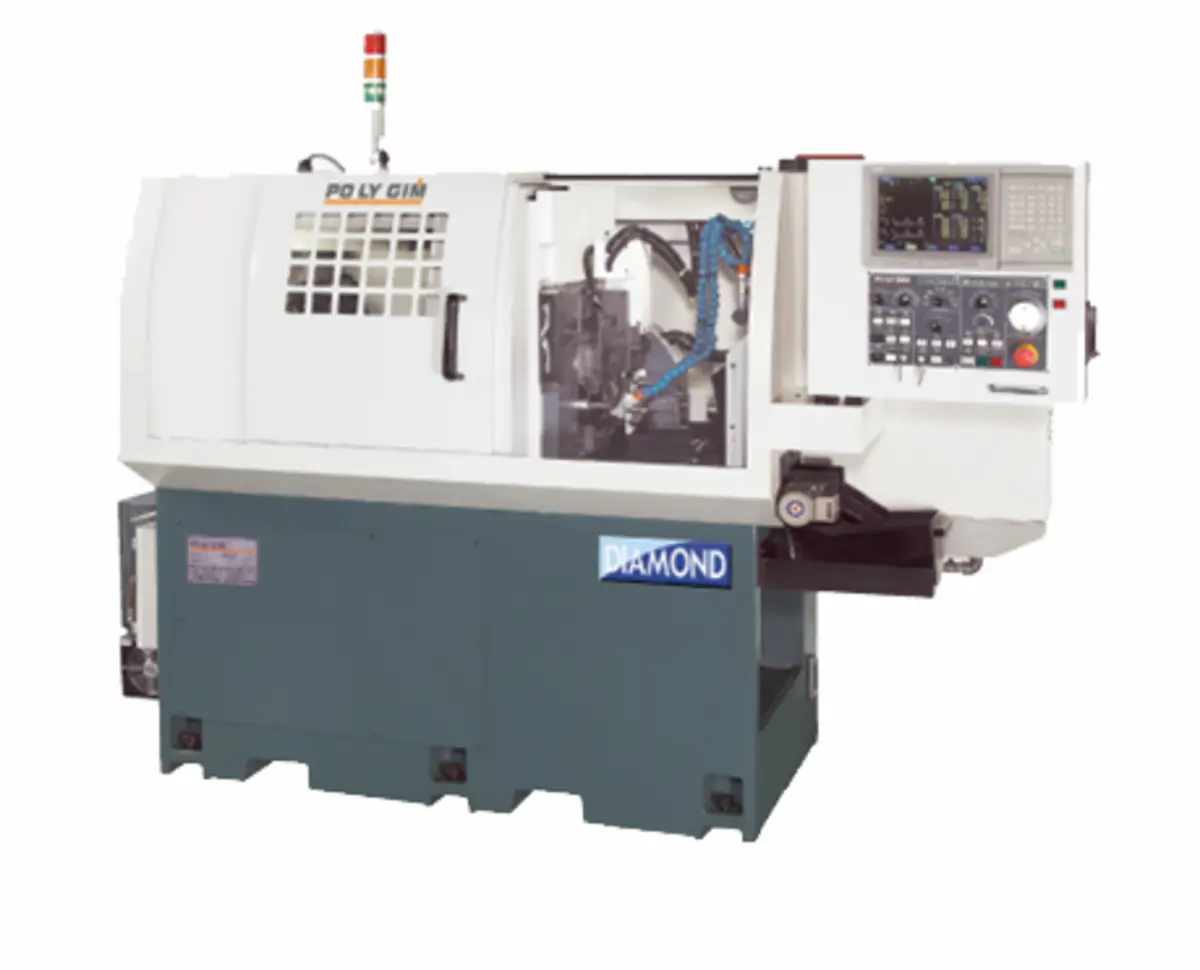

Swiss Type CNC Lathe
www.polygim.com.tw
[Items | DIAMOND 20B]
Working Range / Max. Machining Dia.: 20 mm
Working Range / Max. Machining Length Per Chucking: 250 mm
Working Range / Max. Drilling Dia.: 14 mm
Working Range / Max.Tapping Dia.: M10

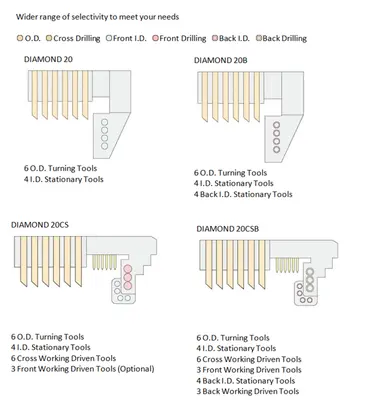

O.D. Tooling / Number of Tools: 6
O.D. Tooling / Dimension: 12 ×12 ×100
I.D. Tooling / Number of Tools: 4
I.D. Tooling / Dimension: 10 mm (ER16)
Cross Working Driven Tooling / Number of Tools: -
Cross Working Driven Tooling / Dimension: -
Cross Working Driven Tooling / Cross Spindle Speed: -
Front Working Driven Tooling / Number of Tools: -
Front Working Driven Tooling / Dimension: -
Front Working Driven Tooling / Spindle Speed: -
Back I.D. Tooling / Number of Tools: 4
Back I.D. Tooling / Dimension: 10 mm (ER16)
Back Working Driven Tooling / Number of Tools: -
Back Working Driven Tooling / Dimension: -
Back Working Driven Tooling / Spindle Speed: -
Spindle / Bore of Spindle: 21 mm
Spindle / Spindle Speed: 200-10000 r.p.m.
Back Spindle / Back Spindle Hole Dia.: 21 mm
Back Spindle / Back Spindle Speed: 7500 r.p.m.
Back Spindle / Max. Length for Front Ejection: 80 mm
Rapid Speed: 18 M Rapid Speed
Motors / Spindle Motor: 3.7 kw
Motors / Back Spindle Motor: 1.5 kw
Motors / X1, Y1, Z1 Axis Motor: 0.5 kw
Motors / Z2 Axis Motor: 0.5 kw
Motors / Coolant Pump: 0.18 kw
Motors / Lubrication: 4 w
Motors / Cross Spindle: -
Machine Dimensions / Center Height: 960 mm
Machine Dimensions / Weight: 2650 kg
Machine Dimensions / Machine Dimension: 1788 × 988 × 1568 mm
Air Pressure / Air Pressure: 5 kg/cm
Air Pressure / Air Supply: 10 L/min
