Swiss Type CNC Lathe
www.polygim.com.tw

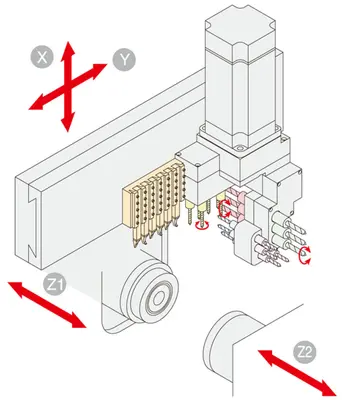

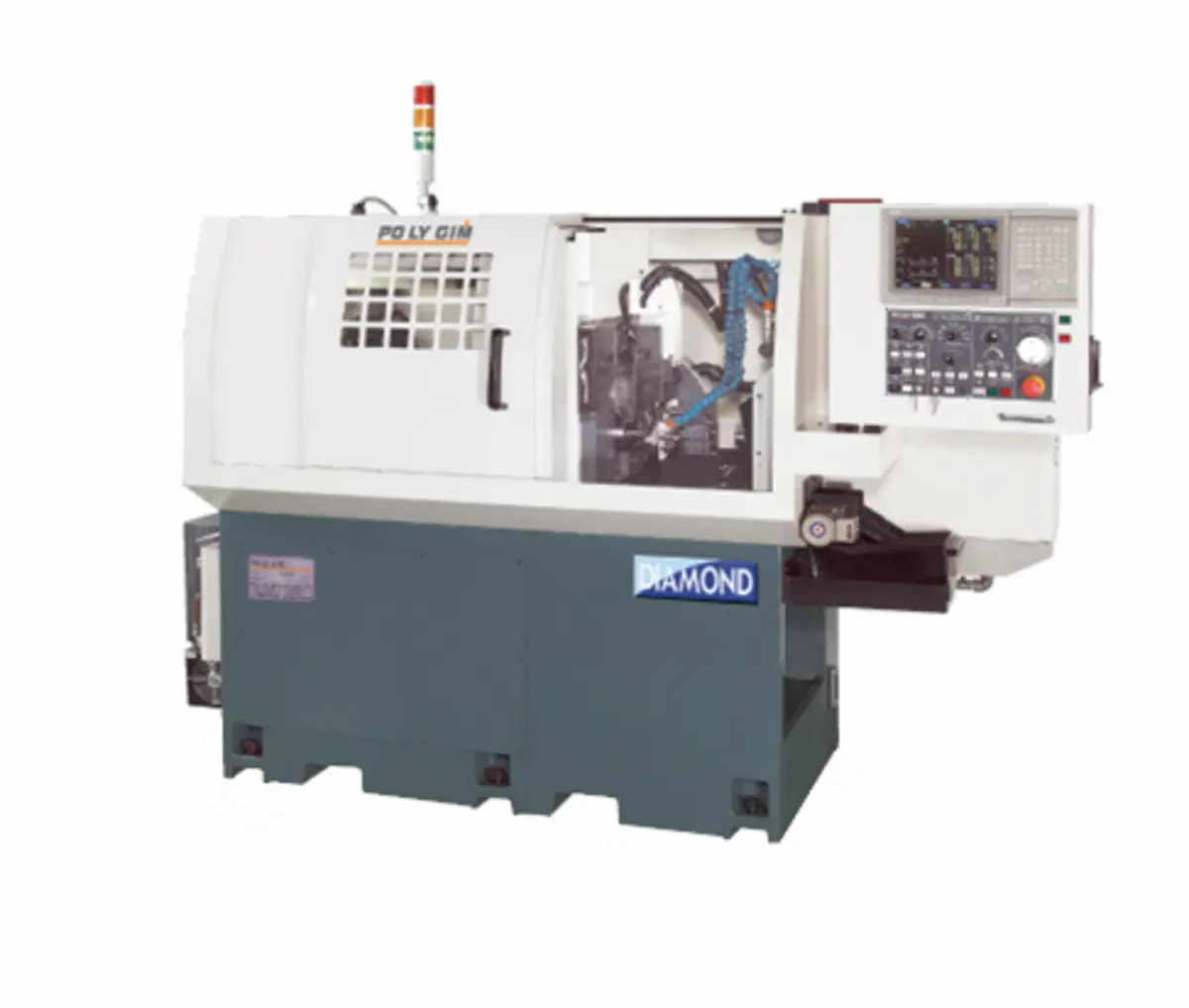

[Items | DIAMOND 32B]
Working Range / Max. Machining Dia.: 33 mm
Working Range / Max. Machining Length Per Chucking: 250 mm
Working Range / Max. Drilling Dia.: 26 mm
Working Range / Max. Tapping Dia.: M12
O.D. Tooling / Number of Tools: 6
O.D. Tooling / Dimension: 16 ×16 ×120
I.D. Tooling / Number of Tools: 4
I.D. Tooling / Dimension: 13 mm (ER20)
Cross Working Driven Tooling / Number of Tools: -
Cross Working Driven Tooling / Dimension: -
Cross Working Driven Tooling / Cross Spindle Speed: -
Front Working Driven Tooling / Number of Tools: -
Front Working Driven Tooling / Dimension: -
Front Working Driven Tooling / Spindle Speed: -
Back I.D. Tooling / Number of Tools: 4
Back I.D. Tooling / Dimension: 13 mm (ER20)
Back Working Driven Tooling / Number of Tools: -
Back Working Driven Tooling / Dimension: -
Back Working Driven Tooling / Spindle Speed: -
Spindle / Bore of Spindle: 36 mm
Spindle / Spindle Speed: 200- 8000 r.p.m.
Back Spindle / Back Spindle Hole Dia.: 33 mm
Back Spindle / Back Spindle Speed: 6000 r.p.m
Back Spindle / Max. Length for Front Ejection: 80 mm
Rapid Speed: 18 M Rapid Speed
Motors / Spindle Motor: 5.5 kw
Motors / Back Spindle Motor: 1.5 kw
Motors / X1, Y1, Z1 Axis Motor: 0.5 kw
Motors / Z2 Axis Motor: 0.5 kw
Motors / Coolant Pump: 0.55 kw
Motors / Lubrication: 4 w
Motors / Cross Spindle: -
Machine Dimensions / Center Height: 960 mm
Machine Dimensions / Weight: 2770 kg
Machine Dimensions / Machine Dimension: 2550 × 1140 × 1568 mm
Air Pressure / Air Pressure: 5 kg/cm
Air Pressure / Air Supply: 10 L/min
