Swiss Type CNC Lathe
www.polygim.com.tw

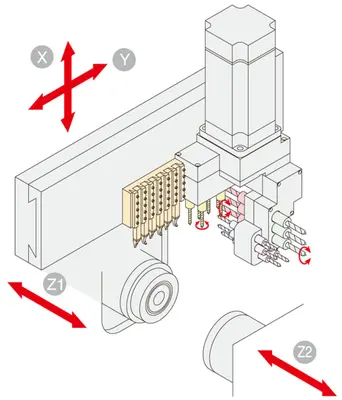

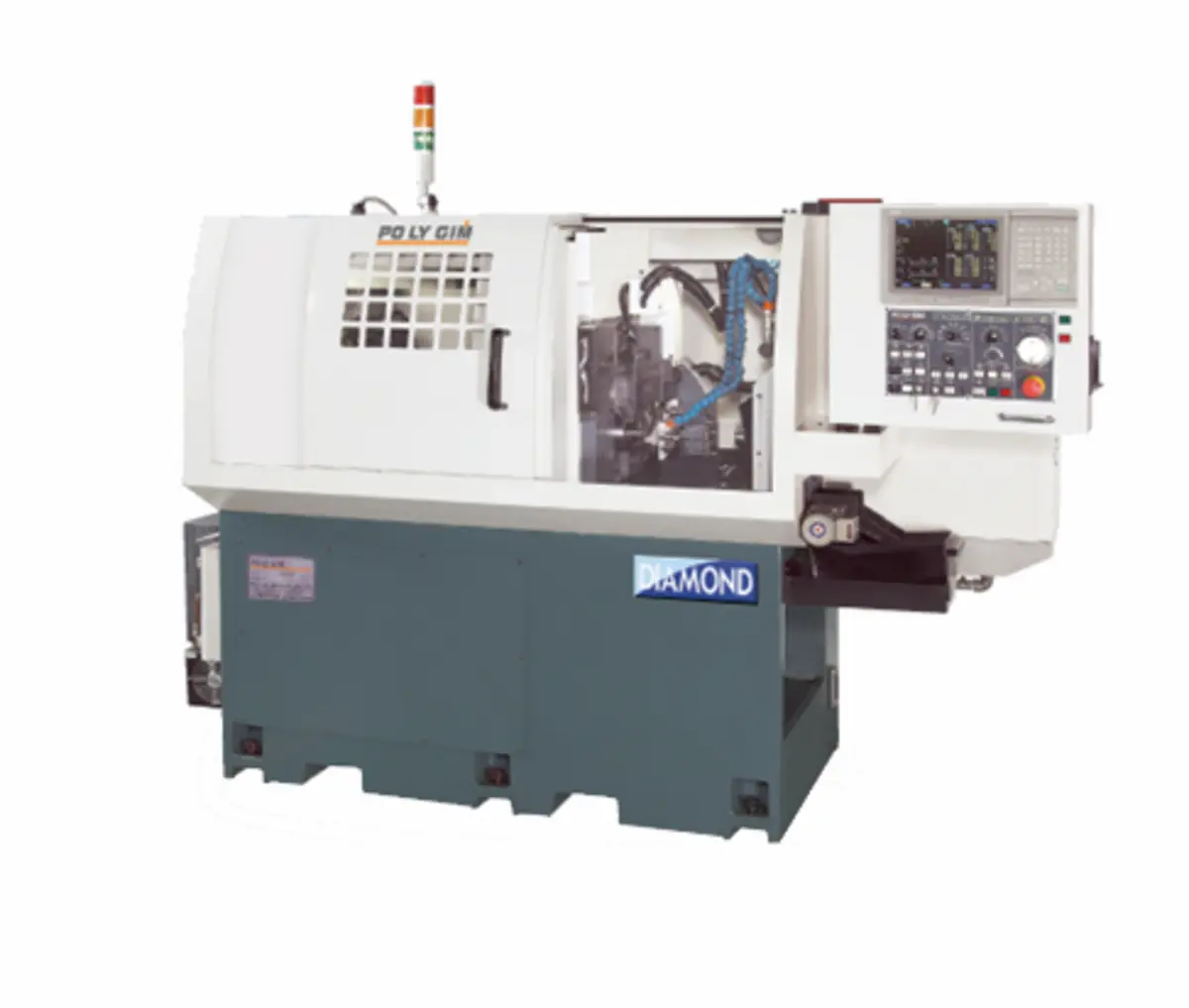

[ITEMS | DIAMOND 32CS]
Working Range / Max. Machining Dia.: 33 mm
Working Range / Max. Machining Length Per Chucking: 250 mm
Working Range / Max. Drilling Dia.: 26 mm
Working Range / Max. Tapping Dia.: M12
O.D. Tooling / Number of Tools: 5
O.D. Tooling / Dimension: 16 ×16 ×120
I.D. Tooling / Number of Tools: 4
I.D. Tooling / Dimension: 13mm (ER20)
Cross working driven tooling / Number of Tools: 6
Cross working driven tooling / Dimension: 13mm (ER20)
Cross working driven tooling / Cross Spindle Speed: 200-6000 r.p.m.
Front working driven tooling / Number of Tools: 3
Front working driven tooling / Dimension: 13 mm (ER20)
Front working driven tooling / Spindle Speed: 6000 r.p.m.
Back I.D. tooling / Number of Tools: -
Back I.D. tooling / Dimension: -
Back working driven tooling / Number of Tools: -
Back working driven tooling / Dimension: -
Back working driven tooling / Spindle Speed: -
Spindle / Bore of Spindle: 36 mm
Spindle / Spindle Speed: 200-8000 r.p.m.
Back spindle / Back Spindle Hole Dia.: -
Back spindle / Back Spindle Speed: -
Back spindle / Max. Length for Front Ejection: -
Rapid Speed: 18 M Rapid Speed
Motors / Spindle Motor: 5.5 kw
Motors / Back spindle Motor: -
Motors / X1, Y1, Z1 Axis Motor: 0.5 kw
Motors / Z2 Axis Motor: -
Motors / Coolant Pump: 0.55 kw
Motors / Lubrication: 4 w
Motors / Cross Spindle: 0.75 kw
Machine Dimensions / Center Height: 960 mm
Machine Dimensions / Weight: 2288 kg
Machine Dimensions / Machine Dimension: 2200 × 1140 × 1568 mm
Air Pressure / Air Pressure: 5 kg/cm
Air Pressure / Air Supply: 10 L/min
