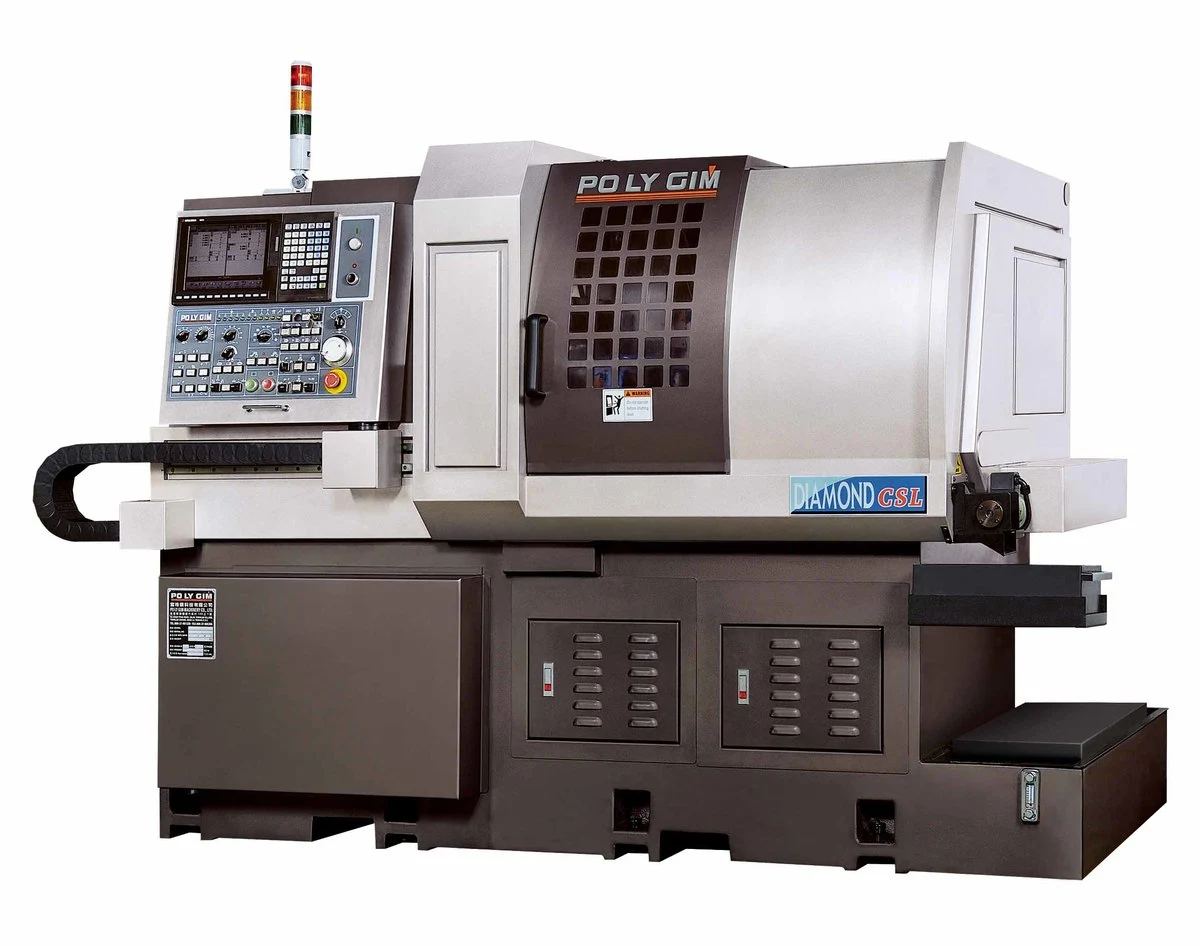

42 CSL (With Y2 & 8 Station B Axis)

Swiss Type CNC Lathe
www.polygim.com.tw

[Specifications]
[Items | 42 CSL (With Y2 & 8 Station B Axis)]
Working Range / Max. Machining Dia.: 42 mm
Working Range / Max. Maching Length Per Chucking: 268 mm
Working Range / Max. Drilling Dia.: 26 mm
Working Range / Max. Tapping Dia.: M16
Tooling System / O.D. Tooling: 6
Tooling System / O.D. Tool Dimension: 16 x 16 x 120
Tooling System / (Front) I.D. Tooling: 2
Tooling System / Tool Dimension: 13 mm (ER20)
Tooling System / (Back) I.D Tooling: 4
Tooling System / Tool Dimension: 13 mm (ER20)
Tooling System / Cross Tooling: 6
Tooling System / Tool Dimension: 13 mm (ER20)
Tooling System / Speed: 200~6000 r.p.m.
Tooling System / (Optional) Bevel Drill / Mill Tooling: 8
Tooling System / Tool Dimension: 13 mm (ER20)
Tooling System / Speed: 100~6000 r.p.m.
Tooling System / (Optional) Front Drilling Tooling: 2
Tooling System / Tool Dimension: 13 mm (ER20)
Tooling System / Speed: 200~6000 r.p.m.
Tooling System / (Optional) Back Drilling Tooling: 3
Tooling System / Tool Dimension: 13 mm (ER20)
Tooling System / Speed: 100~4000 r.p.m.
Spindle / Spindle Hole Dia.: 42 mm
Spindle / Spindle Speed: 200~5000 r.p.m.
Spindle / Indexing Spindle Orientation: C axis
Spindle / (Optional) CS Axis Indexing Orientation: 0.001°
Back Spindle / Back Spindle Hole Dia.: 42 mm
Back Spindle / Back Spindle Speed: 200~5000 r.p.m.
Back Spindle / Indexing Back Spindle Orientation: 5°
Back Spindle / (Optional) C Axis Indexing Orientation: C axis
Back Spindle / Max. Length for Front Ejection: 70 mm
Back Spindle / Max. Workpiece Projection Length from The Back Spindle: 120 mm
Back Spindle / Max. Back Drilling Dia.: 16 mm
Back Spindle / Max. Back Tapping Dia.: M12
Rapid Speed / X1 / Z1 / Y1 Axis: 30 m/min
Rapid Speed / X2 / Z2 / Y2 Axis: 30 m/min
Motors / Main Spindle Motor: 7.5 kw
Motors / Back Spindle Motor: 7.0 kw
Motors / X1 / X2 / Y2 / B Axis Motor: 1.0 kw
Motors / Z1 / Y1 / Z2 Axis Motor: 0.5 kw
Motors / Cross / Bevel Driven Spindle Motor: 1.5 kw
Motors / Back Off-center Driven Spindle Motor: 1.0 kw
Motors / Coolant Pump: 0.75 kw x 2
Motors / Lubrication: 4 w x 2
Machine Dimensions / Center Height: 960 mm
Machine Dimensions / Weight: 4240 kg
Machine Dimensions / Machine Dimension: 2190 x 1530 x 1800
Air Pressure / Air Pressure: 5 kg / cm
Air Pressure / Air Supply: 10 L / min
[Accessories]
Standard Accessories: DIAMOND 25/32/42 CSL
Main spindle 5° orientation
Back spindle 5° orientation
Work light
Coolant system
Part off detective sensor
Live bushing
Part catcher
6 pcs O.D tuming tool holder (42CSL 5pcs)
2 pcs I.D stationary tool holder
6 pcs cross working driven tool holder
4 pcs back I.D stationary tool holder
Standard Accessories: DIAMOND 32/42 CSL (With Y2 & 8 Station B Axis)
Main spindle C axis orientation
Back spindle 5° orientation
Work light
Coolant system
Part off detective sensor
Live bushing
Part catcher
7 pcs O.D tuming tool holder (42CSL 6pcs)
3 pcs I.D stationary tool holder (42CSL 2pcs)
6 pcs cross working driven tool holder
4 pcs back I.D stationary tool holder
