Swiss Type CNC Lathe
www.polygim.com.tw

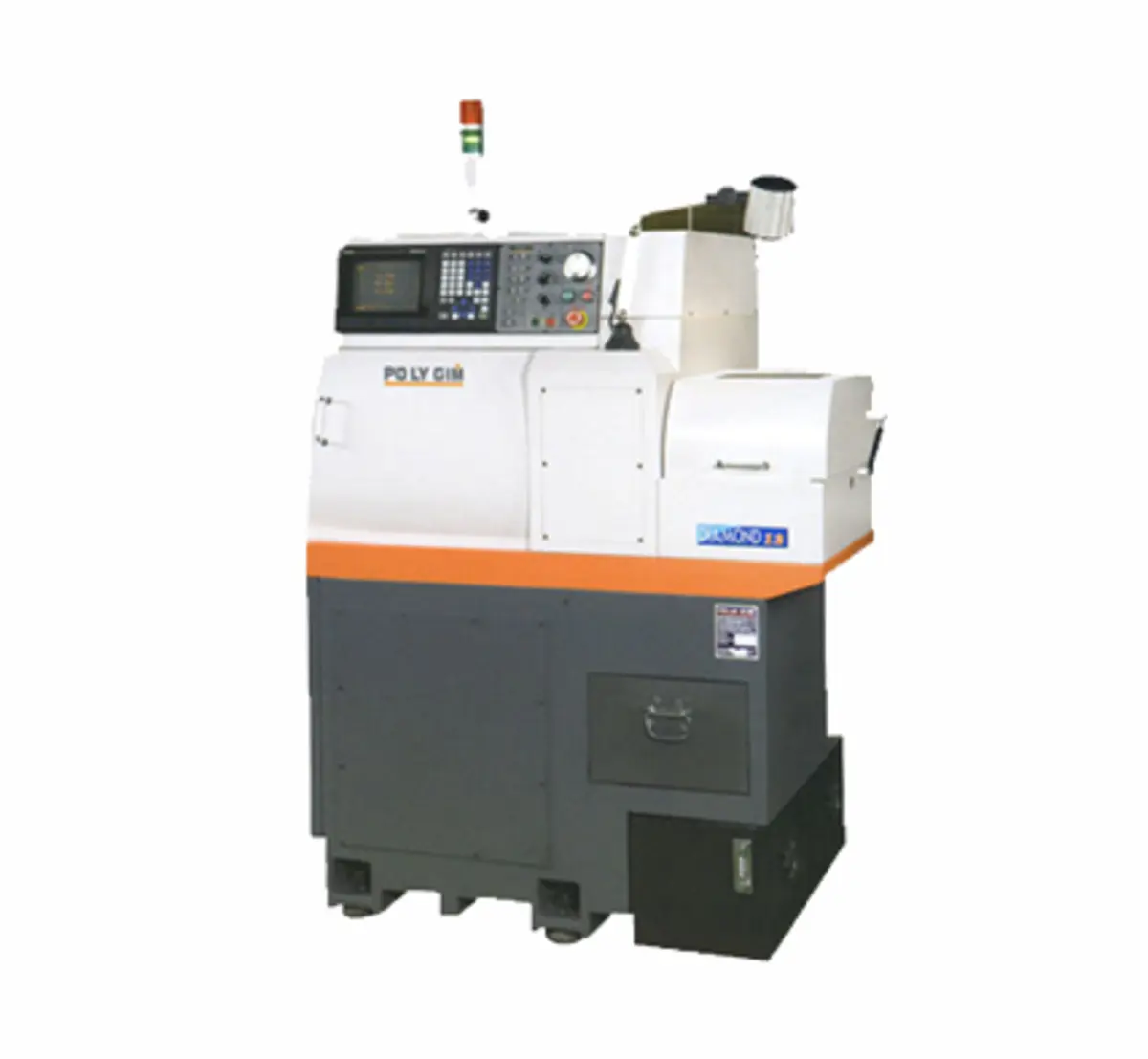

[Items | DIAMOND 16CS]
Working Range / Max. Machining Dia.: 16.5 mm
Working Range / Max. Machining Length Per Chucking: 150 mm
Working Range / Max. Drilling Dia.: 10 mm
Working Range / Max.Tapping Dia.: M8
O.D. Tooling / Number of Tools: 6
O.D. Tooling / Dimension: 10 ×10 ×100
I.D. Tooling / Number of Tools: 4
I.D. Tooling / Dimension: 10 mm (ER16)
Cross Working Driven Tooling / Number of Tools: 4
Cross Working Driven Tooling / Dimension: 10 mm (ER16)
Cross Working Driven Tooling / Cross Spindle Speed: 200-6,000 r.p.m.
Front Working Driven Tooling / Number of Tools: 3
Front Working Driven Tooling / Dimension: 10 mm (ER16)
Front Working Driven Tooling / Spindle Speed: 6,000 r.p.m
Spindle / Spindle Hole Dia.: 17 mm
Spindle / Spindle Speed: 200- 12,000 r.p.m
Rapid Speed: 30M Rapid Speed
Motors / Spindle Motor: 3.7 kw
Motors / X/Y/Z Axis Motor: 0.75 kw
Motors / Coolant Pump: 0.18 kw
Motors / Lubrication: 4 w
Motors / Cross Spindle: 0.4 kw
Motors / Total Power: 6.534 kw
Machine Dimensions / Center Height: 1050 mm
Machine Dimensions / Weight: 1125 kg
Machine Dimensions / Machine Size: 1200 × 900 × 1750
Air Pressure / Air Pressure: 5 kg/cm
Air Pressure / Air Supply: 10 L/min
