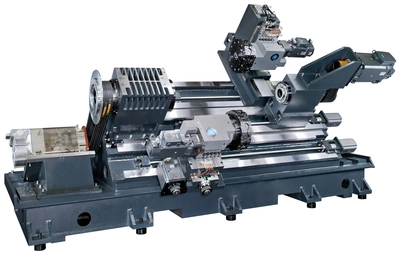

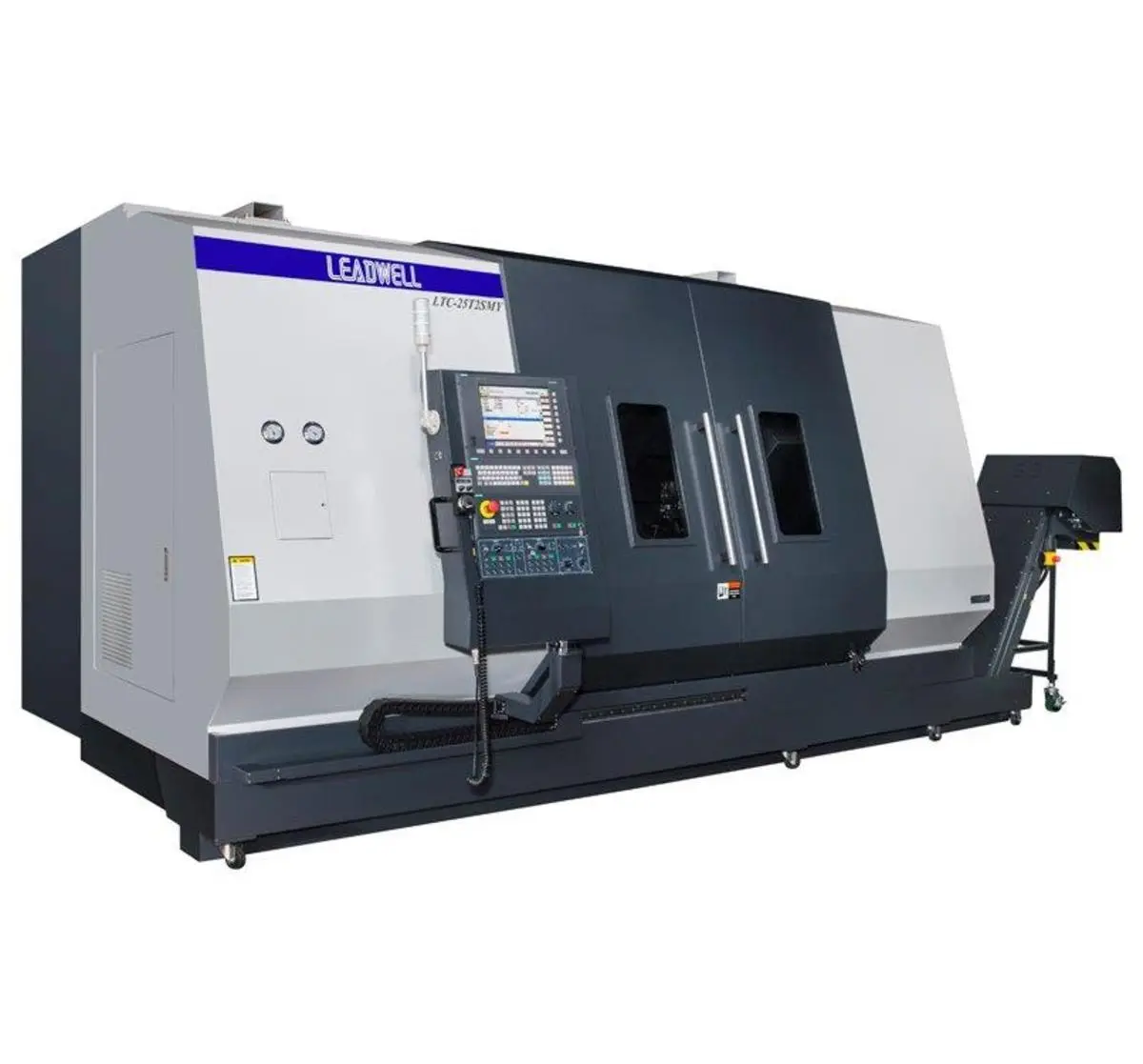

8 Axes Multi-Tasking Multi-Turret CNC Lathe
MODEL: LTC-25T2SMY
Max. swing: 860 (33.85) mm(in)
Max. turning diameter: (Upper & Lower) 500 (19.68) / 330 (12.99) mm(in)
Max. turning length: 1020 (40) mm(in)
Bar capacity: 115 (4.5) mm(in)
Max. load weight (with tailstock): - kg
Max. load weight (without tailstock: 50 kg
X1 axis travel: 250+10 (9.84+0.39) mm(in)
X2 axis travel: 165+10 (6.49+0.39) mm(in)
Z1 axis travel: 1110 (43.7) mm(in)
Z2 axis travel: 1110 (43.7) mm(in)
Z3 axis travel: 1000 (39.37) mm(in)
Y axis travel: ±80 (±3.15) mm(in)
Spindle speed: 3000 rpm
Chuck size: 254 (10)/ 315 (12)/ 381 (15) mm(in)
Spindle nose: A2-11
Sub spindle speed: 3000 rpm
Sub chuck size: 10 mm(in)
Sub spindle nose: A2-8
Bar Capacity: 78 (3) mm(in)
X/Z/Y axis rapid travers: 15/20/7.5 (19.68/26.24/9.84) m(ft)/min
Number of tool stations: 12 (BMT65+DIN5480) x2=24
Shank height for square tool: Ø25 (1) mm(in)
Shank diameter for boring bar: Ø40 (1.5) mm(in)
Spindle/ Sub spindle motor: 21.5 (28.8) / 18 (24) Kw (HP)
X1/X2/Z1&2/Y axis motor power: 7.75/4.3/4.71/2.39(10/5.76/6.3/6.3/3.2) Kw(Hp)
Machine Size (LxWxH): 6290+3250+2610 mm
Machine weight: 1200 kg
