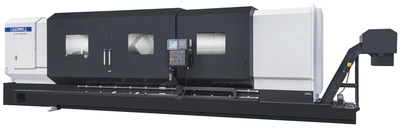

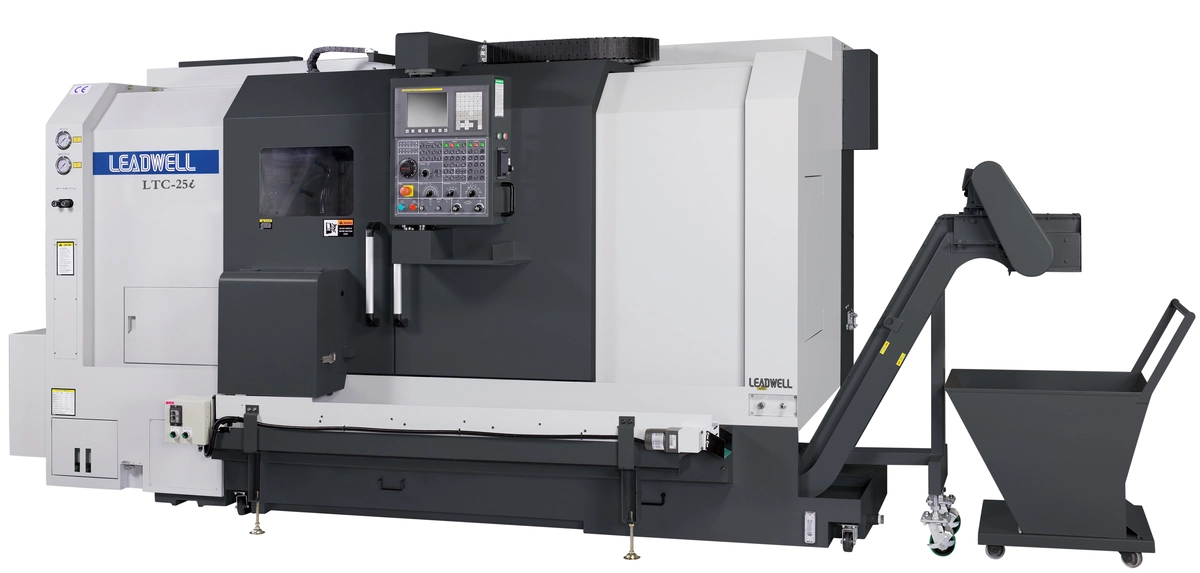

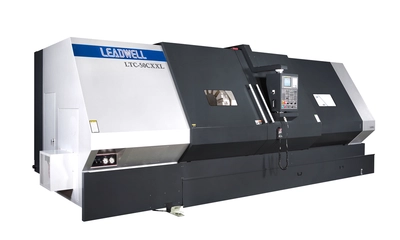

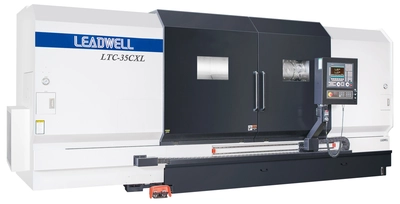

LTC-50M/LM/XLM/XXLM
Overview
Description
Horizontal / Heavy Duty
Specifications
MODEL: LTC-50M/LM/XLM/XXLM
Max. swing: 900/900/850/850(35.43/35.43/33.46/33.46) mm(in)
Max. turning diameter: 675(26.6) VDI60 / 800 (31.5 BMT 75 mm(in)
Max. turning length: 1006/2006/3006/4006(39.6/78.9/118.3/157.7) mm(in)
Bar capacity: 117 (4.61) mm(in)
X axis travel: 437+18(17.2+0.71) VDI 60/430+25(16.9+0.98) BMT75 mm(in)
Z axis travel: 1100/2100/3100/4100(43.3/82.6/122/161.4) mm(in)
Y axis travel: - mm(in)
Spindle speed: 15-1500 rpm
Chuck size: 450 (18) mm(in)
Spindle nose: A2-11
Number of tool stations: 12 pcs
Shank height for square tool: 32(1.2) VDI60 /25(1) BMT 75 mm(in)
Shank diameter of boring bar: 50 (1.9) VDI60 / 50 (1.9) BMT mm(in)
X axis rapid traverse: 10 (393.7) m/min(ipm)
Z axis rapid traverse: 12/12/12/8(472/472/472/314.9) m/min(ipm)
Y axis rapid traverse: - m/min (ipm)
X/Z/Y axis motor: 4/7/-(5.4/9.4/-) kw (hp)
Machine size (LxWxH): (4616/5606/6596/7950)x2575x2426 mm
Machine weight: 15000/17000/20000/22000 kg
