AKIRA-SEIKI
B/C Axis Table with Zero-Backlash Technology
www.akiraseiki.com

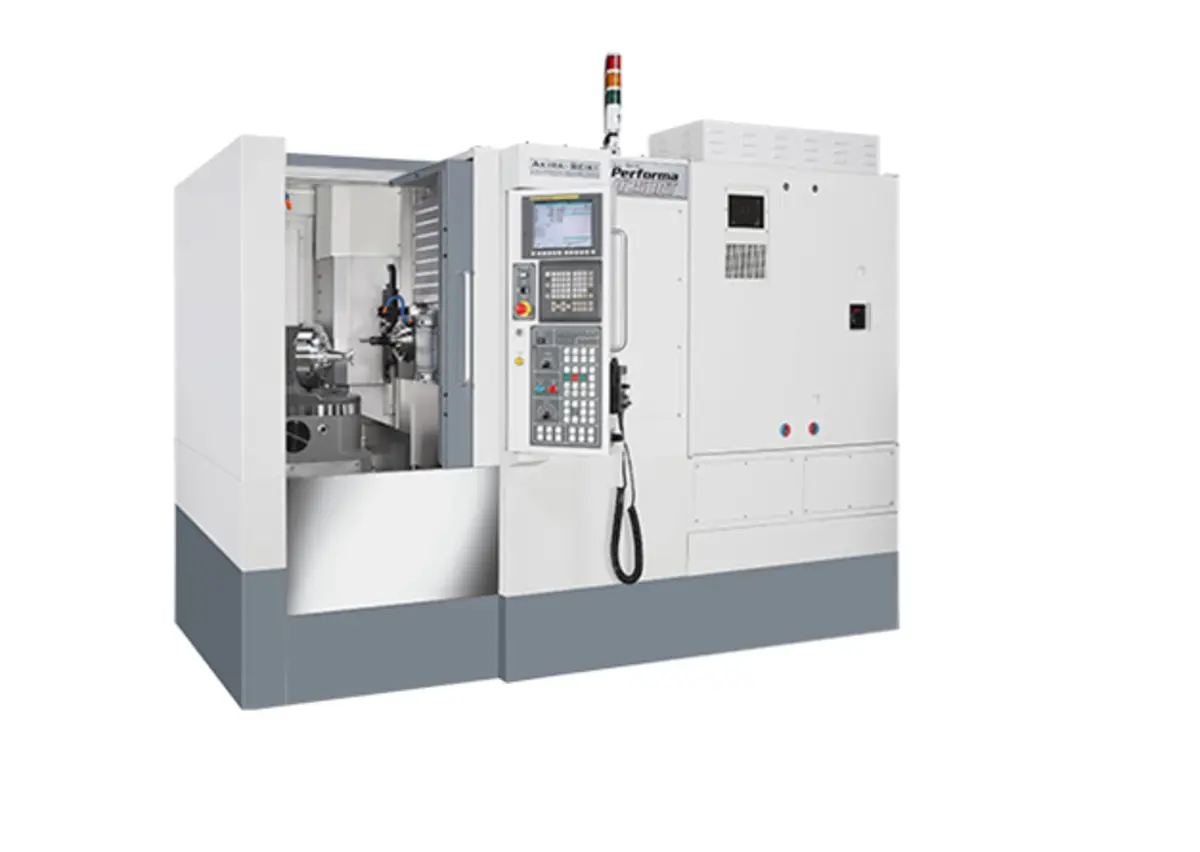

Item: H250RT
Travel
X-axis: 350/13.8 mm/inch
Y-axis: 250/9.8 mm/inch
Z-axis: 325/12.8 mm/inch
Rapid Feed
X/Y/Z: 48/48/48 m/min
Working Area
Table Diameter: 250/9.8 mm/inch
Maximum Load: 120/264.6 kg/lbs
Spindle
Maximum Speed: 12,000 / 15,000(opt) rpm
ATC
Tool Storage: 40T / 60T(opt)
Floor Space: 1171 x 3190 / 46 x 125.6 mm/inch
