STANDARD ACCESSORIES
Spindle oil cooler
Automatic power off
Hydraulic system
Coolant system
Lubricator system
Alarm lamp
Work lamp
M.P.G.
RS232 interface
Heat exchanger
Chip conveyor and cart
Leveling bolts & pads
Controller manuals and circuit diagram
Operation manuals
Machine inspection lists
Toolbox with spanners & wrenches
FANUC 0i-MF
Splash guards (around the operator and work table)
OPTIONAL ACCESSORIES

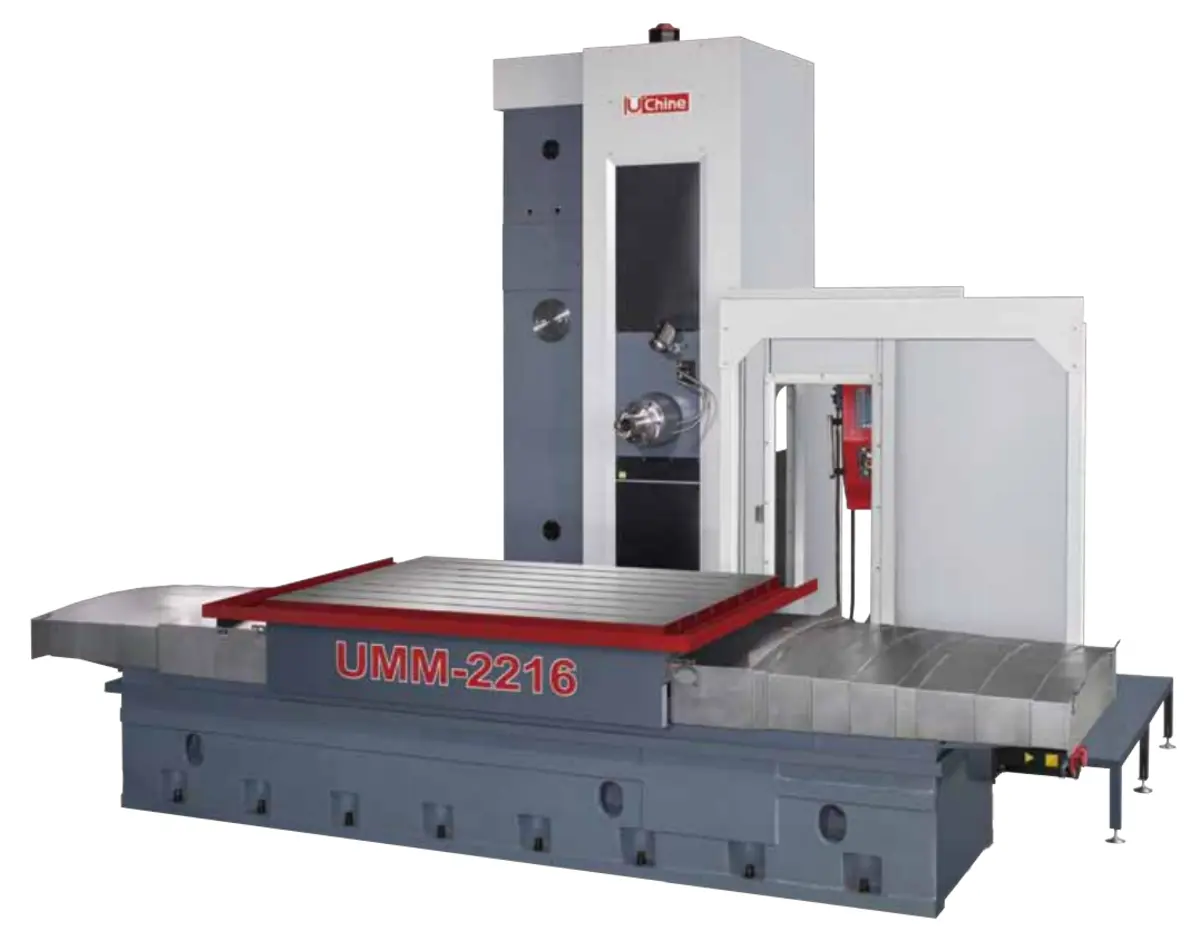

Y-axis travel:2000 mm (UMM-2216, 2616, 3216)
Z-axis travel:1700 mm
Linear scale on X, Y, Z axes
ATC: 24, 32, 40, 60 Tools
Spindle speed:4000 or 6000 rpm
Air conditioner at cabinet
Coolant through spindle
Large splash guards (around the machine)
Work table: 1800x1600mm/0.001°
load: 10 tons(UMM-xxxxR series)
[MODEL | UNIT | UMM-2016R]
TABLE / Table Size: 1600X1400X0.001° mm
TABLE / T Slot: 24 mm
TABLE / Maximum Load: 8000 kg
TRAVEL / X Axis: 2000 mm
TRAVEL / Y Axis: 1600(2000) mm
TRAVEL / Z Axis: 1200(1700) mm
SPINDLE / Speed: 3500(4000, 6000 Belt type) rpm
SPINDLE / Taper: 7/24 Taper ISO.50, BT-50
DISTANCES / Spindle Center to Table Surface: 0~1600(2000) mm
DISTANCES / Spindle Nose to Table Center: 360~1560(2060) mm
DISTANCES / Height From Ground to Table Surface: 1250 mm
FEED RATE / Rapid Feed Rate X/Y/Z: 10 m/min
FEED RATE / Minimum Setting: 0.001 mm/min
FEED RATE / Cutting Feed Rate: 1~5000 mm/min
Motor / Spindle Servo Motor-cont./ 30min.: 22/26 kW
Motor / Axes X/Y/Z: 7/4/4/7 kW
Motor / Lubricator Motor: 0.15 kW
Motor / Hydraulic Pump: 2.25 kW
Motor / Coolant Pump: 1.17 kW
Motor / Chip Conveyor: 0.2 kW
Motor / Oil Cooling Pump: 0.75 kW
ATC / No. of Tools: (24, 32, 40, 60) pieces
ATC / Tool Selection: Absolute
ATC / Tool Change Time (approx.) (T to T): 15 Sec.
ATC / Max. Tool-Diameter/Length: Ø125/Ø250(Without Adjacent Tool)/ Length 400 mm
ATC / Max. Tool Weight: 25 kg
COOLANT & LUBRICATION / Coolant Tank Volume: 400 L
COOLANT & LUBRICATION / Hydraulic Tank Volume: 80 L
COOLANT & LUBRICATION / Lubrication Tank Volume: 8 L
MISCELLANEOUS / Power Required: 55 kVA
MISCELLANEOUS / Pressurized Air: 6 kg/cm²
MISCELLANEOUS / Machine Weight: 26 ton
