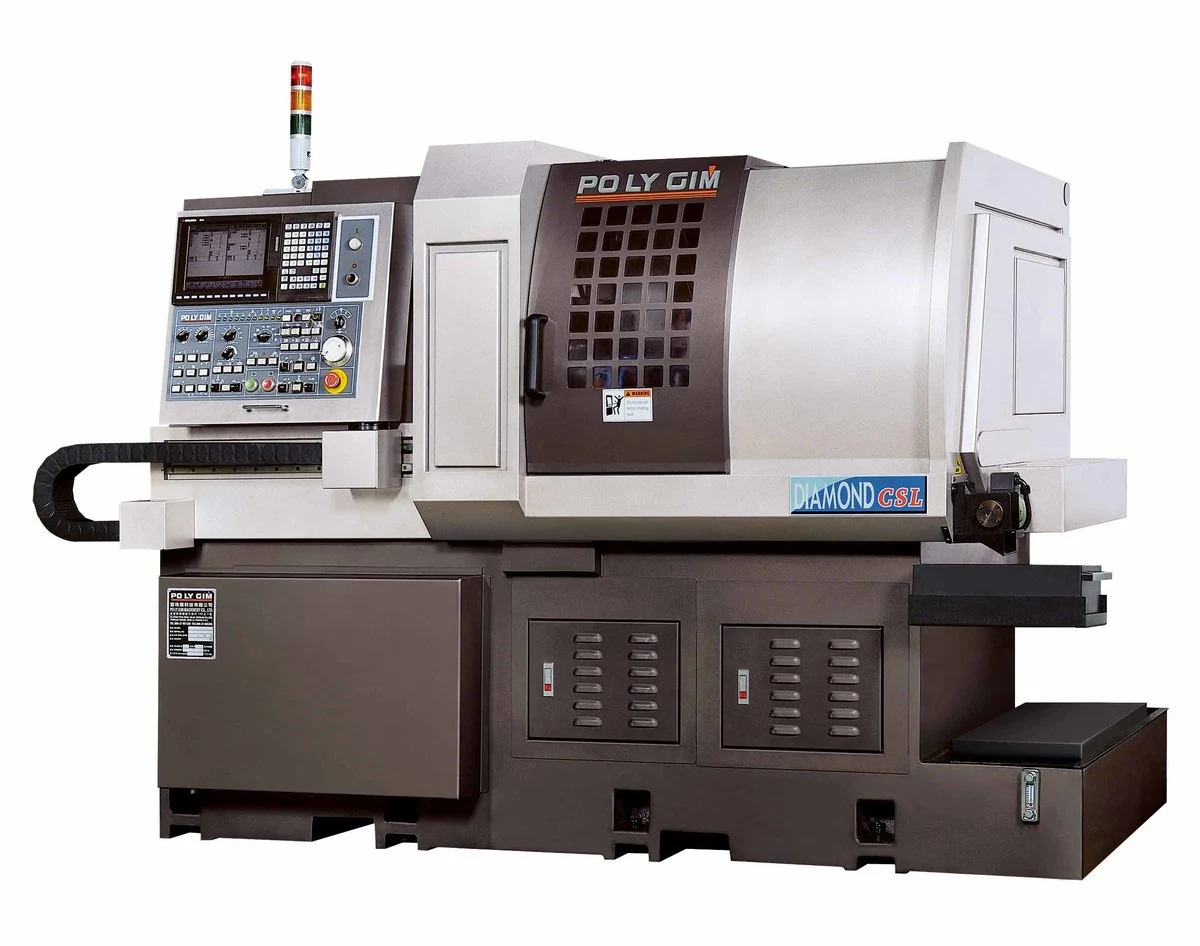

Swiss Type CNC Lathe
www.polygim.com.tw
[Specifications]
[Items | 25 CSL]
Working Range / Max. Machining Dia.: 26 mm
Working Range / Max. Machining Length Per Chucking: 268 mm
Working Range / Max. Drilling Dia.: 20 mm
Working Range / Max.Tapping Dia.: M16
Tooling System / O.D. Tooling: 6
Tooling System / O.D. Tool Dimension: 16 x 16 x 120
Tooling System / I.D. Tooling: 2
Tooling System / I.D. Tool Dimension: 13 mm (ER20)
Tooling System / Cross Side Tooling: 6
Tooling System / Cross Side Tool Dimension: 13 mm (ER20)
Tooling System / Cross Spindle Speed: 200~6000 r.p.m.
Tooling System / Bevel Drill / Mill Tool Holes and Speed (Optional): 3
Tooling System / 100~6000 r.p.m.
Tooling System / Front Drilling Holes (Optional): 2
Tooling System / Back Drilling Holes (Optional): 3
Tooling System / Back Tool Holes: 4
Spindle / Spindle Hole Dia.: 26 mm
Spindle / Spindle Speed: 200~8000 r.p.m.
Back Spindle / Back Spindle Hole Dia.: 25 mm
Back Spindle / Back Spindle Speed: 200~6000 r.p.m.
Back Spindle / Max. Length for Front Ejection: 70 mm
Back Spindle / Max. Part Projection Length: 120 mm
Back Spindle / Max. Back Drilling Dia.: 16 mm
Back Spindle / Max. Back Tapping Dia.: M12
Rapid Speed / X1, Z1 Axis: 18 m/min
Rapid Speed / X2, Z2 Axis: 18 m/min
Rapid Speed / Y1 Axis: 18 m/min
Motors / Main Spindle Motor: 5.5 kw
Motors / Back Spindle Motor: 2.2 kw (7.0 kw with M70)
Motors / X1 / X2 Axis Motor: 1 kw
Motors / Z1,Y1,Z2 Axis Motor: 0.5 kw
Motors / B Axis Motor: 0.75 kw (with M65) / 1 kw (with M70/M730)
Motors / Y2 Axis Motor (Optional): -
Motors / Cross Driven Spindle Motor: 1.5 kw
Motors / Bevel Driven Spindle Motor: 0.4 kw
Motors / Back Off-center Driven Spindle Motor: 0.75 kw (1 kw option Y2 axis)
Motors / Coolant Pump: 0.75 kw x 2
Motors / Lubrication: 4 w x 2
Machine Dimensions / Center Height: 960 mm
Machine Dimensions / Weight: 3988 kg
Machine Dimensions / Machine Dimension: 2480 x 1280 x 1780
Air Pressure / Air Pressure: 5 kg/cm
Air Pressure / Air Supply: 10 L/min
[Standard Accessories:]
Standard Accessories: DIAMOND 25/32/42 CSL
Main spindle 5° orientation
Back spindle 5° orientation
Work light
Coolant system
Part off detective sensor
Live bushing
Part catcher
6 pcs O.D tuming tool holder (42CSL 5pcs)
2 pcs I.D stationary tool holder
6 pcs cross working driven tool holder
4 pcs back I.D stationary tool holder
Standard Accessories: DIAMOND 32/42 CSL (With Y2 & 8 Station B Axis)
Main spindle C axis orientation
Back spindle 5° orientation
Work light
Coolant system
Part off detective sensor
Live bushing
Part catcher
7 pcs O.D tuming tool holder (42CSL 6pcs)
3 pcs I.D stationary tool holder (42CSL 2pcs)
6 pcs cross working driven tool holder
4 pcs back I.D stationary tool holder
