STANDARD EQUIPMENT:
Two axis back gauge
One axis CNC control:X – axis
One axis manual adjustment: R – axis
Precision-made back gauge fingers
Fully equipped with Masteel tooling and clamping system
Floating-adjustable die clamping system for various die application
Hardened and precision ground tool steel gooseneck punch: 53-58RC;100Ton/M(33Ton/Ft) capacity
Hardened and precision ground Masteel 8 openings, 4-way die: HB190-260

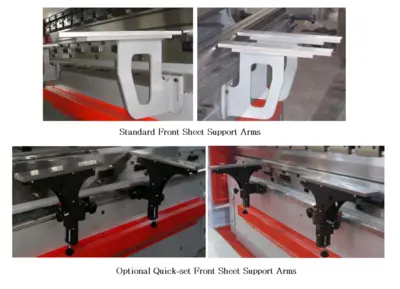

2 - Front support arms
OPTIONAL EQUIPMENT:
CNC R axis , Central lubrication, Safety light curtain
Interlock Back Guard, Quick- set front sheet support (2 SETS)
Special top and bottom tools,
440 or 600V Electrical, Laser protection system for die area
Hydraulic oil coolant, WILA Manuel Anti-Deflection system
Nema 12 Electrical Cabinet w/ Thermal Breaker Disconnect
WILA Hydraulic top and bottom tool holding system
WILA Anti-Deflection System which operates automatically with DNC unit according to tonnage applied

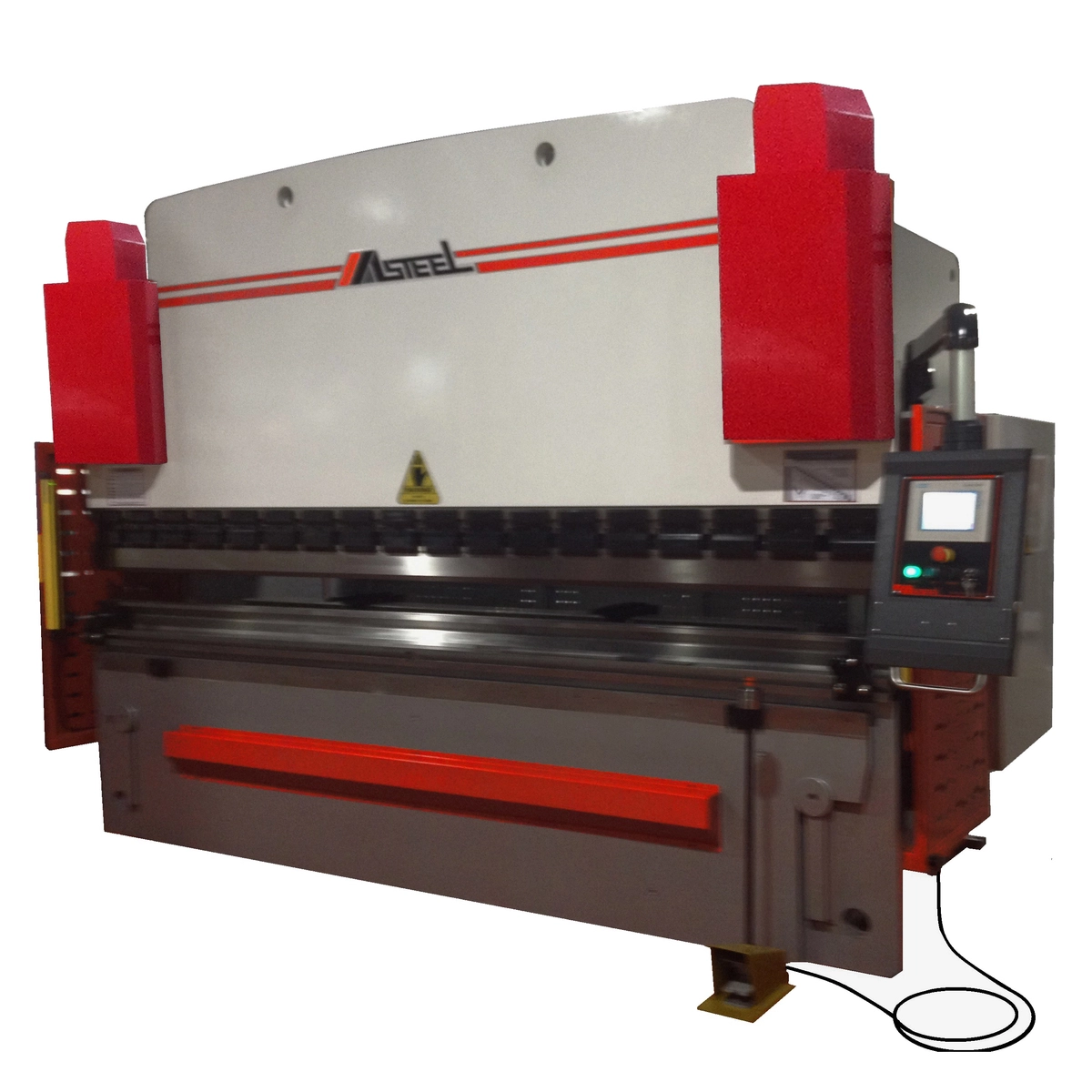

MODEL: MBHSA-08070
Max. Capacity Tons: 70
Max. Bending Length: 8'
Distance between Frames: 76"
Height of Bed: 34"
Bed Below Floor: __
Depth of Throat: 12 – ¾"
Length of Ram Stroke: 8"
Fast Approach Speed IPM: 275
Press Speed IPM: 25
Fast Return Speed IPM: 245
Max. Open Height: 17.5"
Main Motor: 10
Back gauge Travel: 28"
Weight Lbs: 8,200
Dimensions L x W x H: 102 x 40 x 68
TOOLING INCLUDED IN PRICE
PUNCH HOLDER: COMBINATION EUROPEAN/NORTH AMERICAN
PUNCH: GOOSENECK MP0 – G915EQ -25.5x100 R1/85 OR R2/85
DIE: MASTEEL MD-4W3-065x065 4 WAY DIE
