HEAVY DUTY HOLLOW SPINDLE LATHES
Standard features
Heavy duty bed-way structure-510mm/20" wide
Solid, one piece meehanite casting structure
Direct hydraulic brake ensure quick spindle stop without shark load to headstock gear
Taper attachment
One steady rest capacity: (1)30-300mm (quill diameter 80mm)
One follow rest ¢30-230mm (quill diameter45mm)
One set american 4-jaw chuck (direct mounted) (one piece jaw type)
One set 3-jaw scroll chuck directly mount (two piece jaw type)
Auto lubrication system

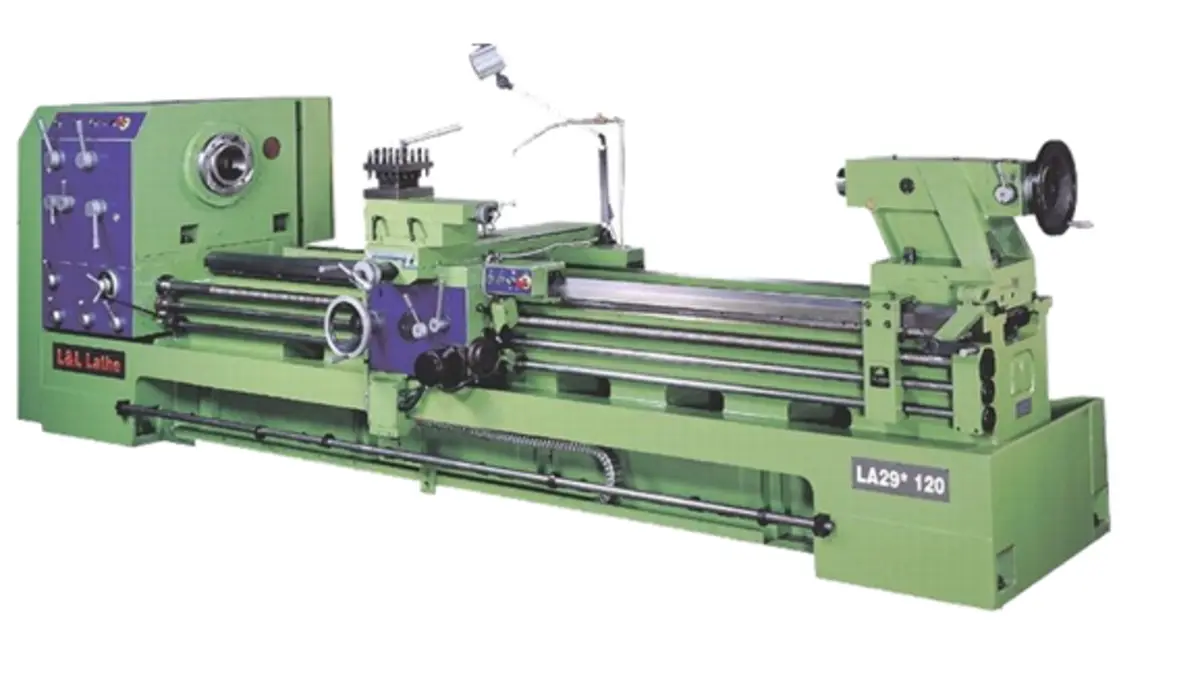

Model: ML-LA-35/1500
Swing over bed: 870mm
Swing over cross slide: 630mm
Center height: 440mm
Distance between centers: 1500mm
Carriage Width: 720mm
Cross slide width: 280mm
Bed width: 610mm (20”)
Machine Length: 3730mm
Bed way: 3 V ways and 1 flat way
[Headstock]
Spindle power: AC20PHP*4P
Spindle bore: Ø105mm Ø153mm Ø205mm Ø230mm Ø305mm (4”) (6”) (8”) (9”) (12”)
Spindle nose: A2-8 A2-11 A2-15 A2-15 A2-20
Spindle speed: 10~1250rpm 5~670rpm 4~500rpm 4~440rpm
Spindle center: 4”, 6”: MT#5 9: , 6”: MT#6
[Turret]
Turret mode: 4 way tool post
Tool size: 32mm
compound slide stroke: 300mm
[Tailstock]
Quill diameter: Ø105mm(std.) ; Ø165mm(opt.)
Quill stroke: 150mm(std.) ; 200mm(opt.)
Tailstock center: MT#6
Body movement: By Carriage (std.) Motorized (opt.)
Quill movement: By hand wheel (std.) Motorized (opt.)
[Treading]
: inch: 30~0.25TPI(70set) ; Metric: 1~120mm(62set) MP: 30~0.25TPI(53set) ; DP: 1~120mm(70set)
[Feed]
X-axis feed range: IPR: 0.0016”~0.048” ; MPR: 0.04~1.2mm
X-axis stroke: 500mm
X-axis rapid traverse: 1500mm/min
Z-axis feed range: IPR: 0.0032”~0.096” ; MPR: 0.08~2.4mm
Z-axis stroke: 1500mm
Z-axis rapid traverse: 3000mm/min
