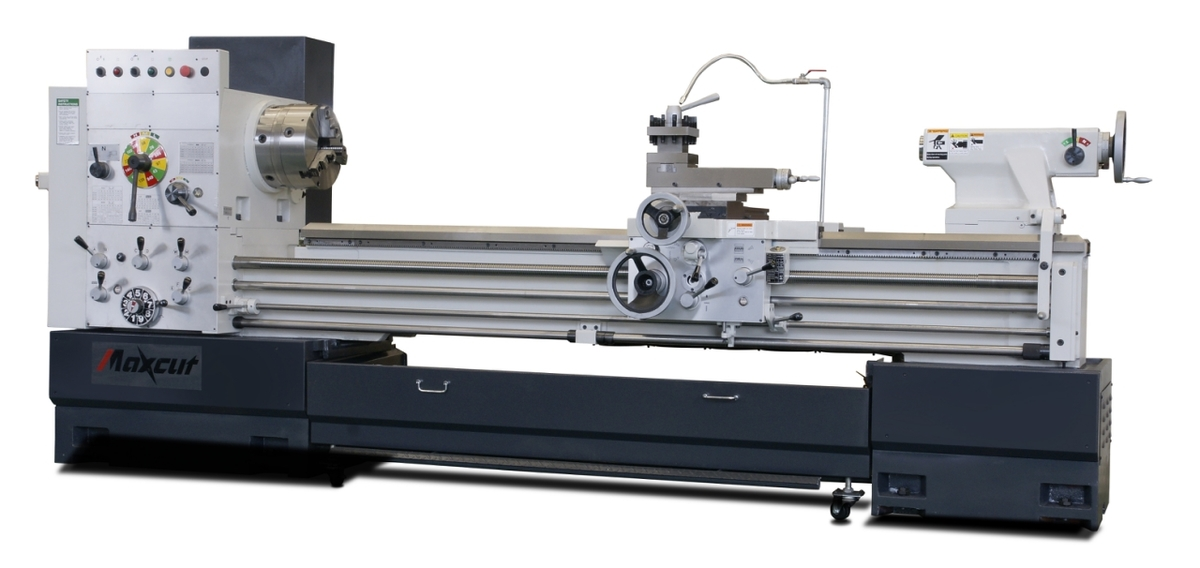

STANDARD ACCESSORIES
Auto Lubrication System
Coolant System
4-Way Tool Post
Main Spindle Sleeve
Main Spindle Center
Tailstock Center
Meter / Inch Community Gear Box
Tool Box with Tools
Independent Electrical Box
Operation & Service Manual
OPTIONAL ACCESSORIES
3-Jaw Chuck, 4-Jaw Chuck, Face Plate
Steady Rest, Follow Rest
Rear Tool Post
Micro Bed Stopper
Full Length Rear Splash Guard
Taper Attachment
Quick Change Tool Post
Digital Readout
Rotary Center
Double Chuck System
Electrical System for CE
Work Light
NOMINAL SIZE
Swing over Bed: 560 mm (22")
Swing over Cross Slide: 340 mm
Height of Center: 300 mm
Distance Between Centers: 1500mm(60")
BED
Width of Bed: 400 mm (16")
Swing over Gap: 770 mm
Width of gap: 460 mm (18")
SPINDLE
Spindle nose mounting: A2-8, D1-8 A2-11, D1-11
Spindle bore: Ø80 mm (3") Ø104 mm (4")
Spindle speeds (12 Steps): 17-1200 rpm 15-1000 rpm
CARRIAGE
Tool size: 25 x 25 mm
Compound rest travel: 230 mm
Cross slide travel: 300 mm 385 mm
Cross feeds: 0.025-0.35 mm (36 Kinds)
Longitudinal feeds: 0.05-0.7 mm (36 Kinds)
TAIL STOCK
Tailstock quill diameter: Ø80 mm
Taper of center: MT#5
Quill travel: 230 mm
THREADS
Lead screw diameter: Ø45 mm
Lead screw pitch: 2TPI (inch) or 12mm (metric)
Threading range, metric: 0.8-14 mm / Pitch (65 Kinds)
Threading range, inch: 2-28 TPI (36 Kinds)
Module pitch threads: 0.5-7 M (22 Kinds)
DP. pitch threads: 4-56 P (36 Kinds)
MOTOR
Main spindle motor: 15 HP
Coolant pump motor: 1/8 HP
