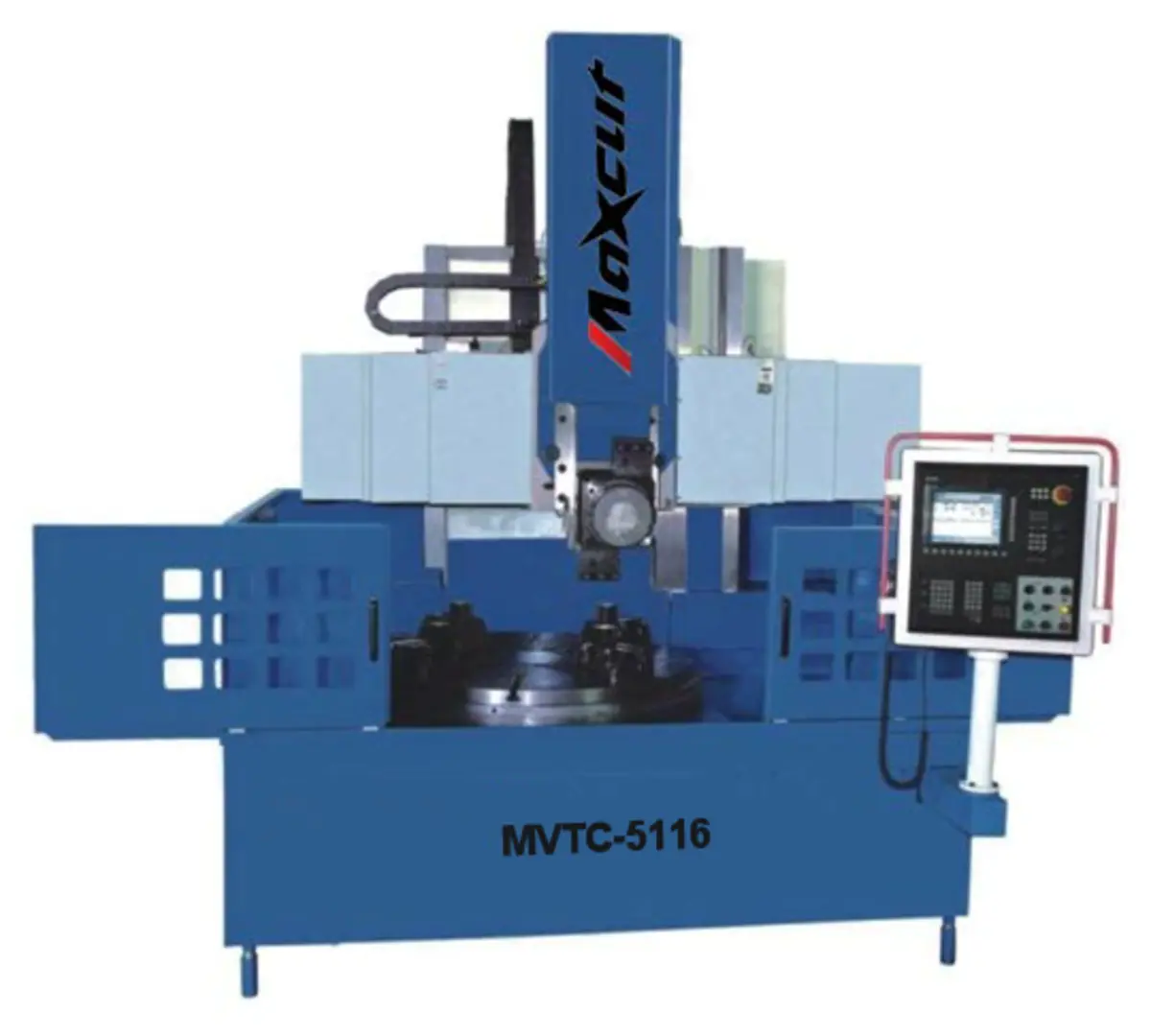

MAXCUT VTC-5116E/1200

FEATURES
Fagor 8055 CNC control
Automatic 4 Position turret
Conversational to G-code conversion feature allows operator to program jobs without G-code

CAPACITY UNIT
Table Diameter: 1400 (55.12)) Mm (Inch)
Max turning diameter: 1600 (64.00)) Mm (Inch)
Max turning height: 1200 (44.00) Mm (Inch)
Table loading capacity: 5000 (11000) Mm (Inch)
Max torque of work table: 10 KNm
Spindle speed- 2steps: 2.5 to 200 RPM
TRAVEL
Ram horizontal travel: -20 to 915 (-0.75 to 36) Mm (Inch)
Ram vertical travel: 800 (31.50) Mm (Inch)
Cross rail travel: 950 (37.40) Mm (Inch)
MOTOR
Spindle/table motor: 30 (40) KW (HP)
Motor for cross rail travel: 2.2 (3.0) KW (HP)
Servo motor for ram feed-horizontal: 15 (62) NM
Servo motor for ram feed-vertical: 15 (62) NM
RAM
Cross section size of ram: 200 x 200 (8.0 x 8.0) Mm (Inch)
Tool size: 32 x 32 (1.250 x 1.250) Mm (Inch)
Max swivelling angle of ram: ±0
Cutting force of ram: 16 KN
RAPID TRAVEL & FEEDRATE
Rapid travel of ram: 6.0 (240) MPM (IPM)
Cross rail travel speed: 440 (17.32) MMPM (IPM)
Ram feed rate: 0.1-2000 (0.004-80) MMPM (IPM)
MACHINE SIZE
Machine length: 320 (128) Cm (Inch)
Machine width: 300 (120) Cm (Inch)
Machine height: 320 (128) Cm (Inch)
Total machine weight: 12780 (28500) kg (lbs)
