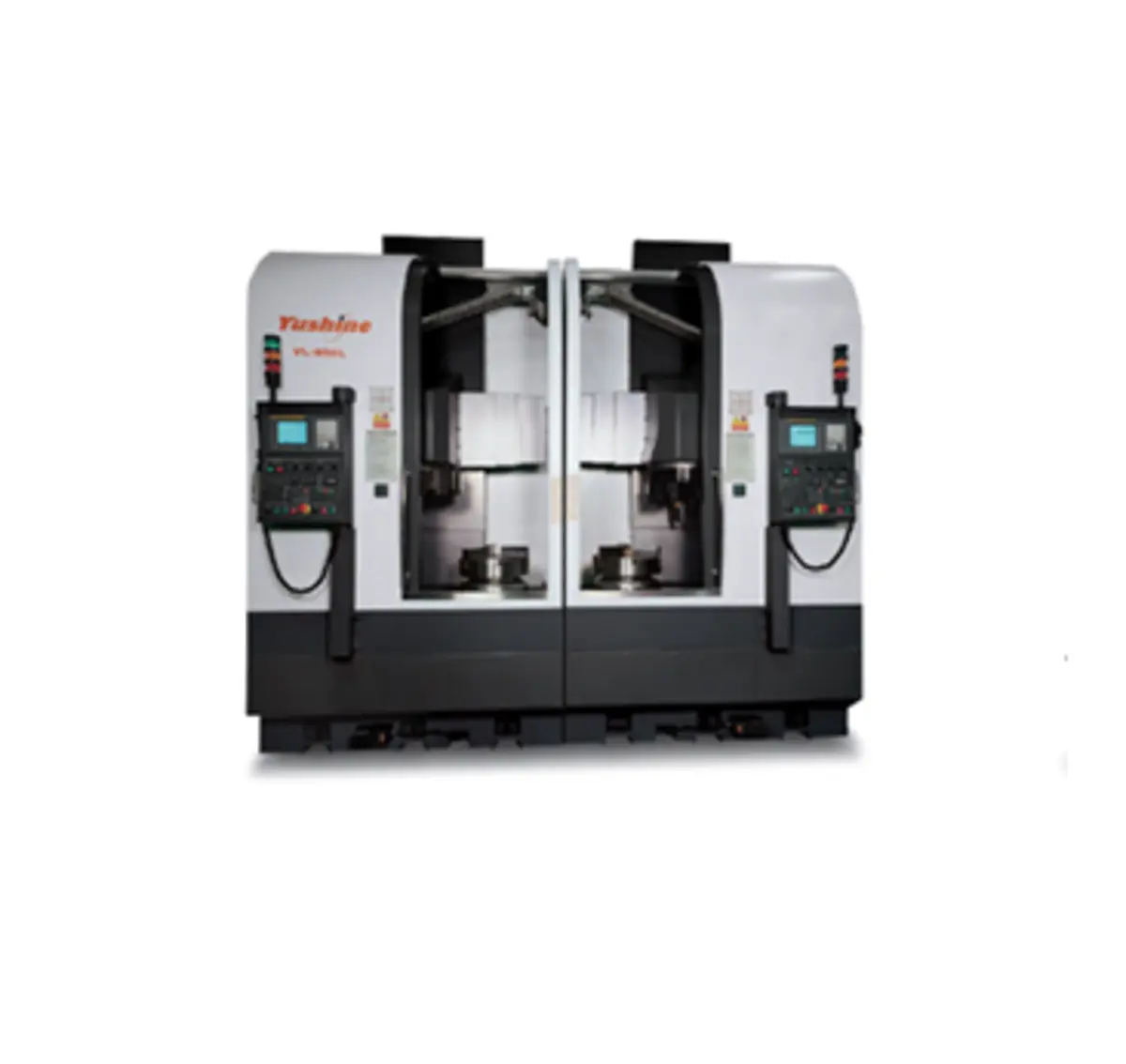

VL-350L/R

CNC Vertical Lathes
The Twin Star Series advanced design allows each machine to be controlled independently.
When L and R unit are combined together, you can machine two different parts at the same time.
Or you can combine two different turning operations of the same workpiece. Therefore: fewer operators/less space required.

Model: VL-350L/R VL-350HL/R Unit
Max. Swing Dia.: Ø450 mm
Max. Cutting Dia.: Ø350 mm
Max. Cutting Height: 400 mm
Main Spindle Motor: aP18 (9/11) kw
Machine (L): 2900 mm
Machine (W): 1500 mm
Machine (H): 2500 mm
Machine Weight: 3500 kg
