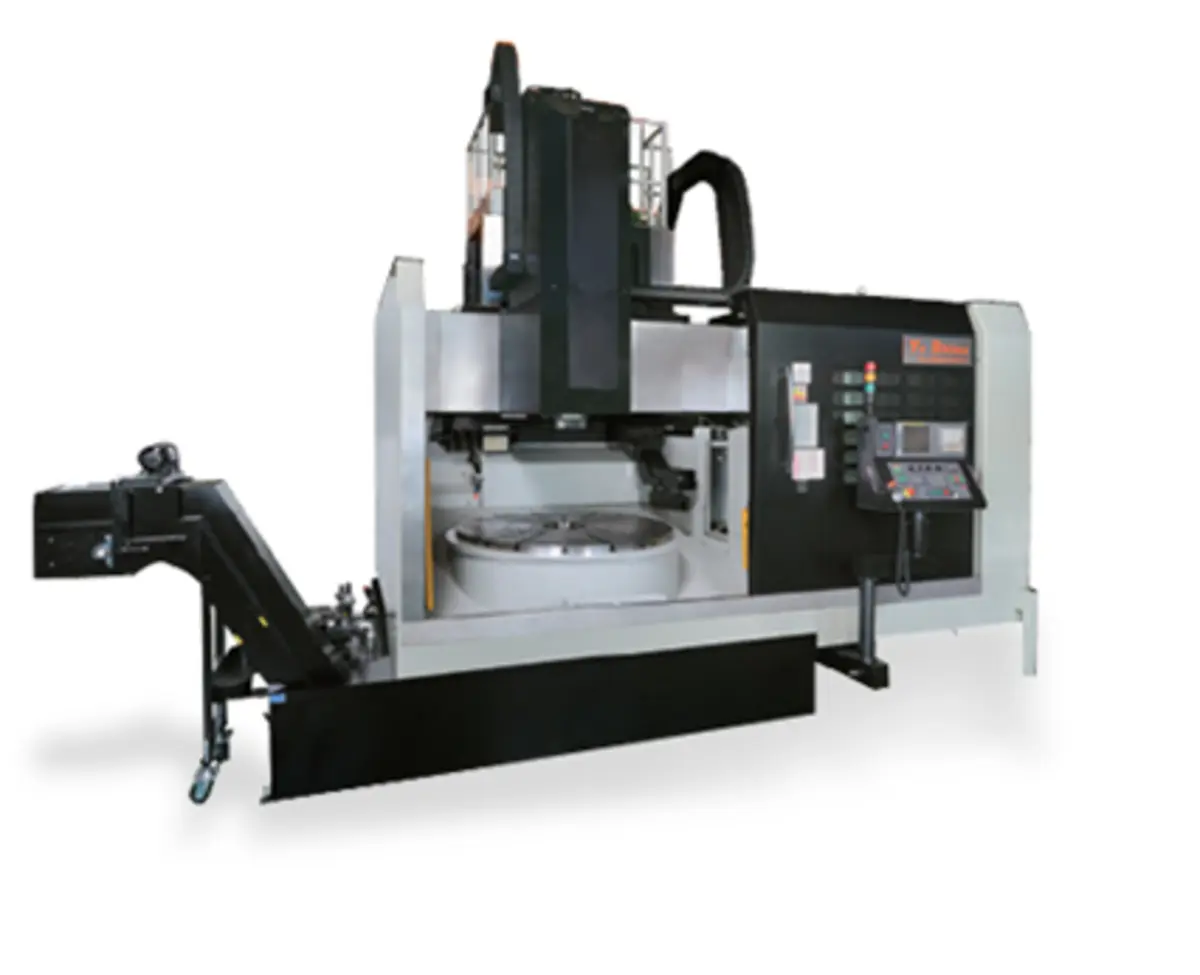

VL-1000ATC+C

Heavy Duty Vertical Lathes

• Machine bed is made of meehanite cast iron for good rigidity.
• Chuck headstock with powerful coolant system for efficient chip removal.
• Easy loading/unloading, suitable for big, heavy, irregular shape workpieces.
• Maintains the best circularity without inertial ellipse after machining.
• Solid, heavy duty table face permits close-in fixturing for high-rigidity, vibration free machining.
• Smallest footprint in its class, offering the best work flow available.

Model: VL-1000ATC+C Unit
Max. Swing Diameter: Ø1350 mm
Max. Turning Diameter: Ø1150 mm
Max. Turning Height: 1070 mm
#1 Spindle Motor (30min/Cont): 37/45 kw
#2 Spindle Motor (30min/Cont): 7.5/11 (11/15) kw
Machine (L1): 4600 mm
Machine (W1): 5500 mm
Machine (H1): 5330 mm
Machine Weight: 25000 kg
