FEATURES
Fully enclosed splash guard
Hydraulic unit
Automatic lubrication system
Work light
Gear/ bearing lubrication and oil cooler control
Chip conveyor
Moveable vertical cross rail and mechanism
Coolant system with tank
Three color alarm light
Workpiece counter (FANUC standard)
Coolant through tool holder
Heat exchanger for electrical cabinet
Service tool box & tool kits
Chip trolley
Coolant gun & Air blast
20 bar CTS for milling
Table manual 4-jaw chuck (independent 4-jaw) with magnetic rotary encoder
Leveling adjustable block & seat pads (without J type bolts)
Tool holder(one piece type)
a. O.D/facing tool holder(40mm)
b. Boring tool holder(Ø80mm)
c. Long type Boring toolholder(Ø80mm)
d. Dummy cover

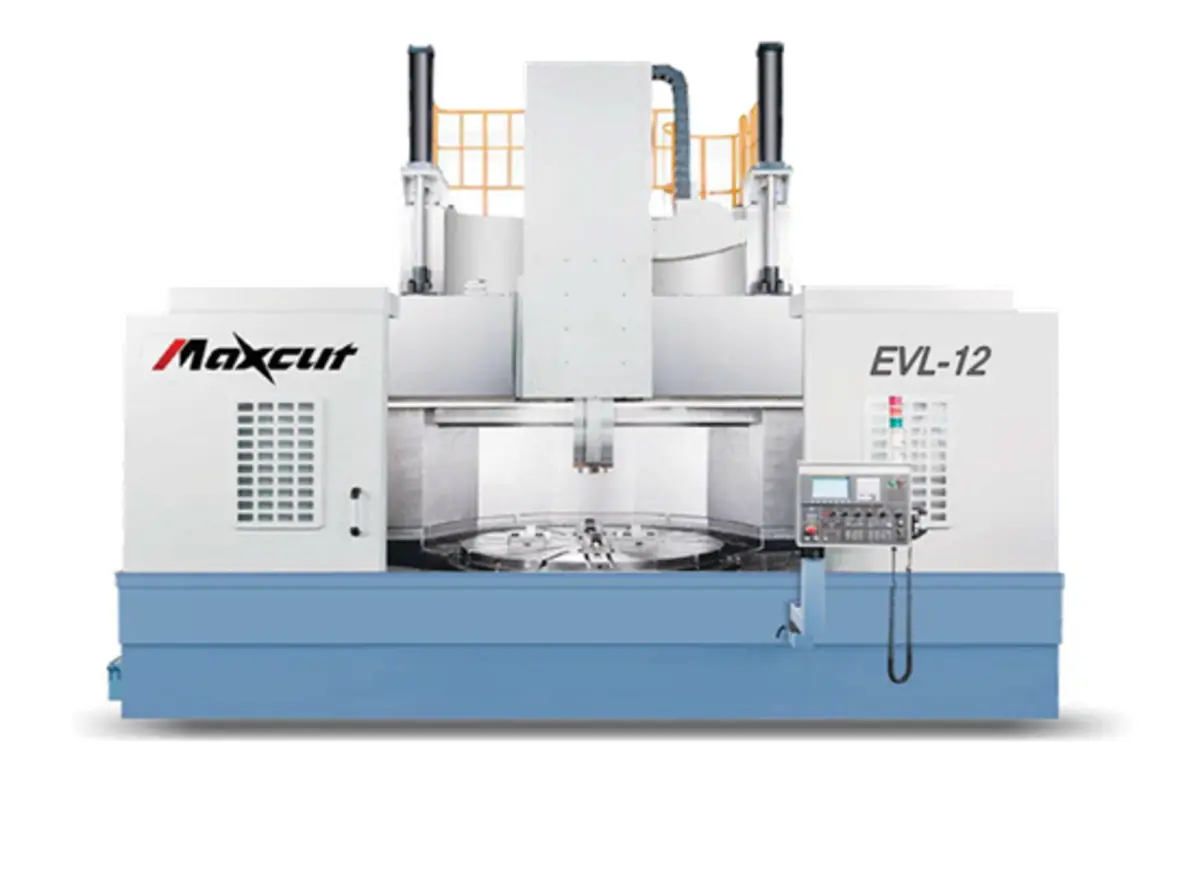

MODEL: EVL-12
CAPACITY UNIT
Max. swing diameter: 1600(62.99) Mm(in)
Max. turning diameter: 1600(62.99) Mm(in)
Distance from bite holder end to table surface: 0-1.205 (0-47.44) Mm(in)
Max. turning height: 1200(47.24) Mm(in)
Max. workpiece weight: 8000 Kg
TABLE
Table diameter (manual chuck): 1250(49.21) Mm(in)
Range of table speeds (low): 34-103 Rpm
Range of table speeds (high): 104-312 Rpm
Gear speed: 2 Steps
Max. table torque: 12400 Nm
ATC
ATC (automatic tool changer): 1 Set
Number of tool stations: 12 (random) -
Tool type: T-Puller -
Tool size: 25/32/40(1/1.25/1.5) Mm(in)
Cross section of ram: 200x200(7.87x7.87) Mm(in)
TRAVEL
Horizontal travel (X-Axis): -820+1000(-32.8+39.37) Mm(in)
Vertical travel (Z-Axis): 900(35.43) Mm(in)
Cross rail travel: 500(19.68), 2steps (3positions) Mm(in)
FEED RATES
Rapid rate (X): 10 m/min
Rapid rate (Z): 10 m/min
Cutting feed rate: 0.001-50 Mm/rev
Feed override: 0-150 %
MOTOR
Table main motor: a40i, 37/45 (49.6/60.3) Kw(hp)
Feed servo motor (X-Axis): a30i, 7 (9.4) Kw(hp)
Feed servo motor (Z-Axis): a30Bi, 7 (9.4) Kw(hp)
Milling motor: -- Kw(hp)
Cf axis motor: -- Kw(hp)
MACHINE
Floor space (LxW): 7200 x 5000 Mm
Machine Max. height (H): 5450 Mm
Machine weight: 23500 kg
