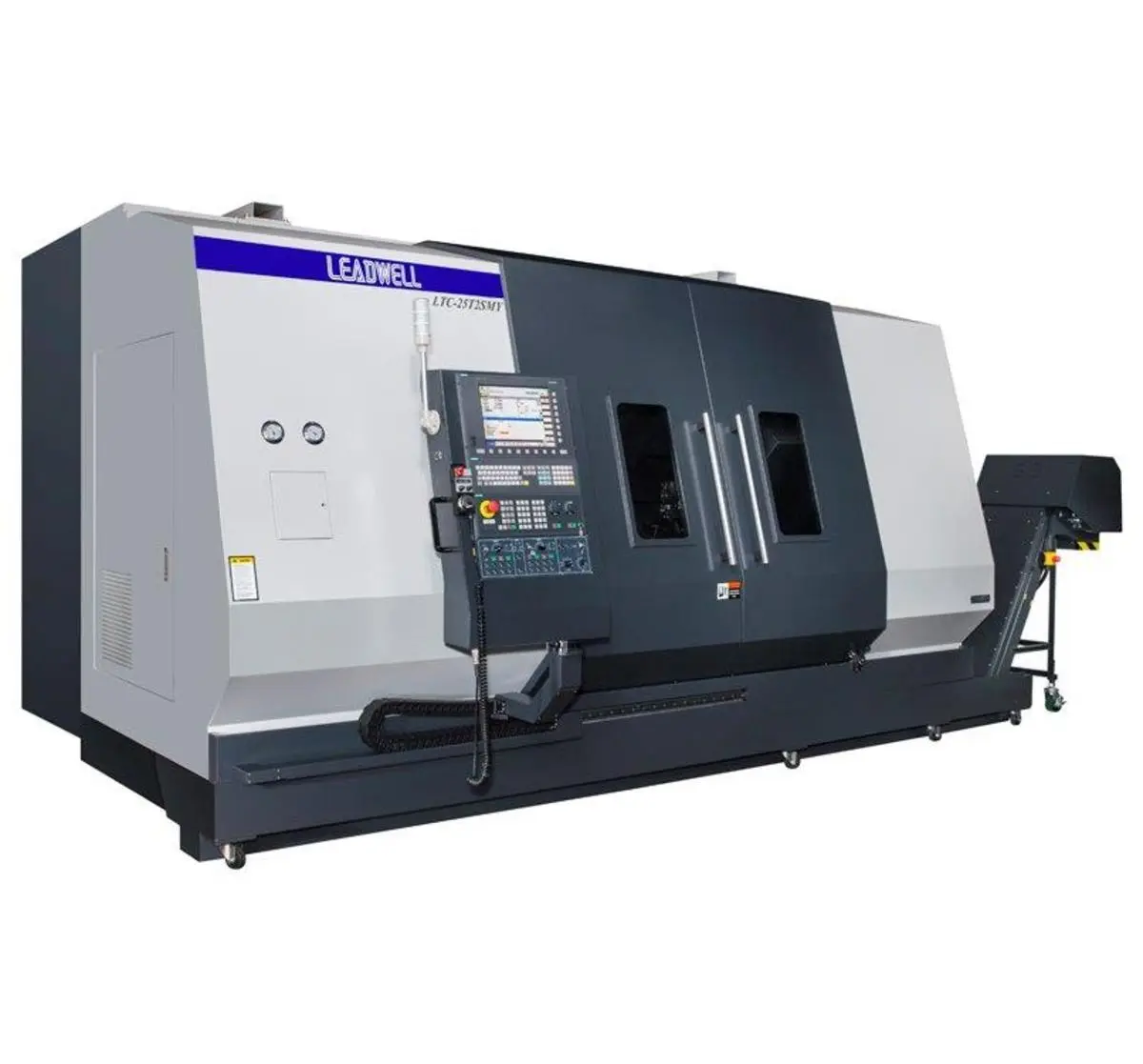

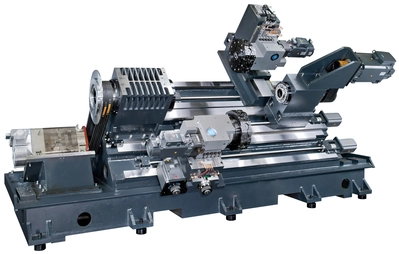

8 Axes Multi-Tasking Multi-Turret CNC Lathe
MODEL: LTC-25T2
: 750 1250 1500
Max. swing: 868 (34.2) mm(in)
Max. turning diameter: 510 (20.1) mm(in)
Max. turning length: 750(29.5) 150(49.2) 1500(59.06) mm(in)
Bar capacity: 78(3”) 90(3.5”) 115(4.5”) mm(in)
Max. load weight (with tailstock): 500 800 kg
Max. load weight (without tailstock: - kg
X1 axis travel: 255+20 (10+0.78) mm(in)
X2 axis travel: 180+20 (7.1+0.79) mm(in)
Z1 axis travel: 830(32.6) 1330(52.3) 1580(62.6) mm(in)
Z2 axis travel: 780(30.7) 1280(50.3) 1530(60.2) mm(in)
Z3 axis travel: - mm(in)
Y axis travel: - mm(in)
Spindle speed: 3000 rpm
Chuck size: 254(10) 351(12)/381(15) mm(in)
Spindle nose: A2-8 A2-11
Sub spindle speed: - rpm
Sub chuck size: - mm(in)
Sub spindle nose: -
Bar Capacity: - mm(in)
X/Z/Y axis rapid travers: 15/20/- (19.68/26.24/-) m(ft)/min
Number of tool stations: 12
Shank height for square tool: Ø25 (1) mm(in)
Shank diameter for boring bar: Ø40 (1.5) mm(in)
Spindle/ Sub spindle motor: 30(40)/--- Kw (HP)
X1/X2/Z1&2/Y axis motor power: 4/-/7/- (5.4/-9.4/-) Kw(Hp)
Machine Size (LxWxH): 5860x3428x2269/6112/3428/2269(1500) mm
Machine weight: 8500 9000 kg
