Features
Rolls made of forging steel, and thru high frequency heat treatment at HRC45°
Hydraulically powered lower pinch roll adjustment, with rapid gap adjustment
Hydraulically powered rear bending roll adjustment
Hydraulically powered tilting of the rear bending roll for cone rolling
Simple manual tilt of the lower pinch roll
Spherical roller bearings on all roll shafts
Pinch gauge device
Electronic digital LED readout for rear bending roll position
Hydraulic drop end
Dual rotation controls - console mounted and remote
foot switch on trailing lead
Tool box and operation manual

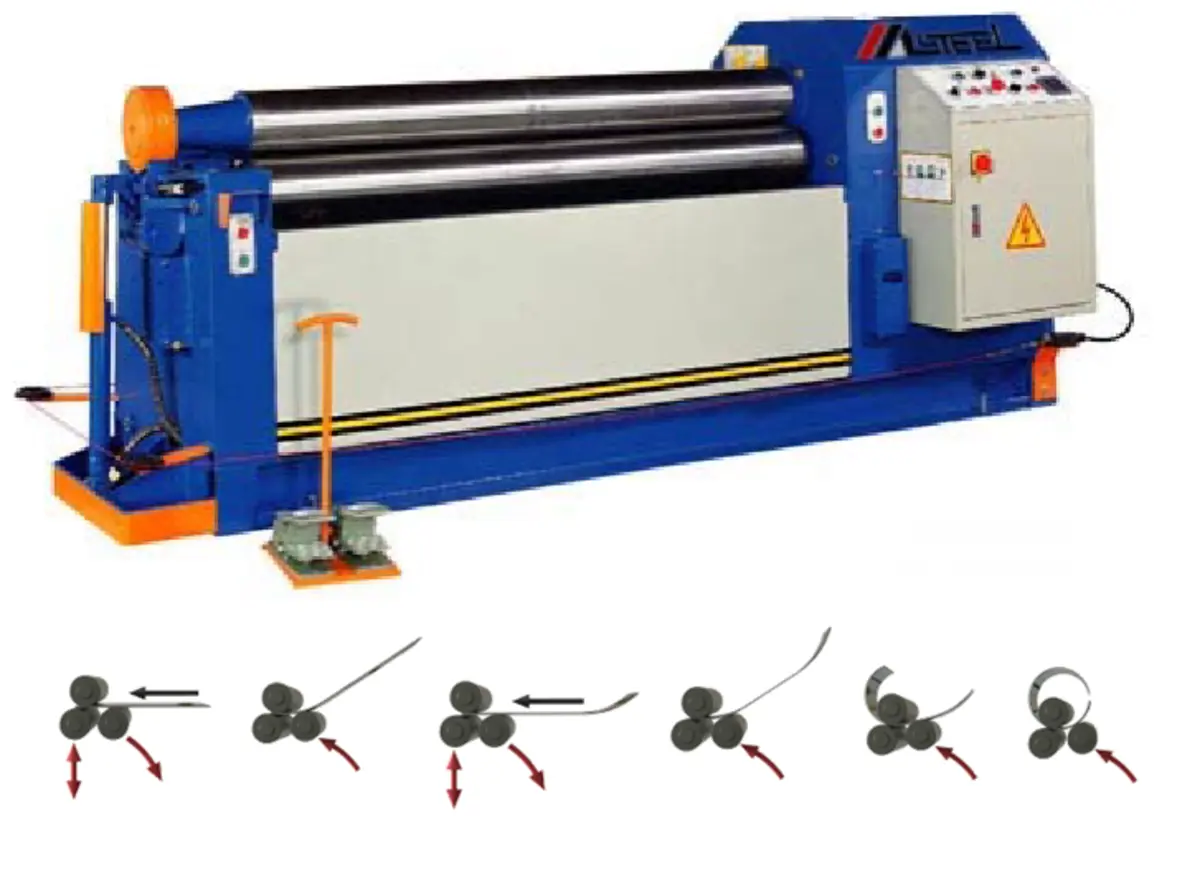

MODEL: LHF-303E
CAPACITY (MM): 3 x 970 mm
ROLL DIAMETER: 80 mm
DRIVE MOTOR HP: 2
HYD . MOTOR (HP): 1
WEIGHT (KG): 879
L x W x H (MM): 2460 x 1090 x 1170
