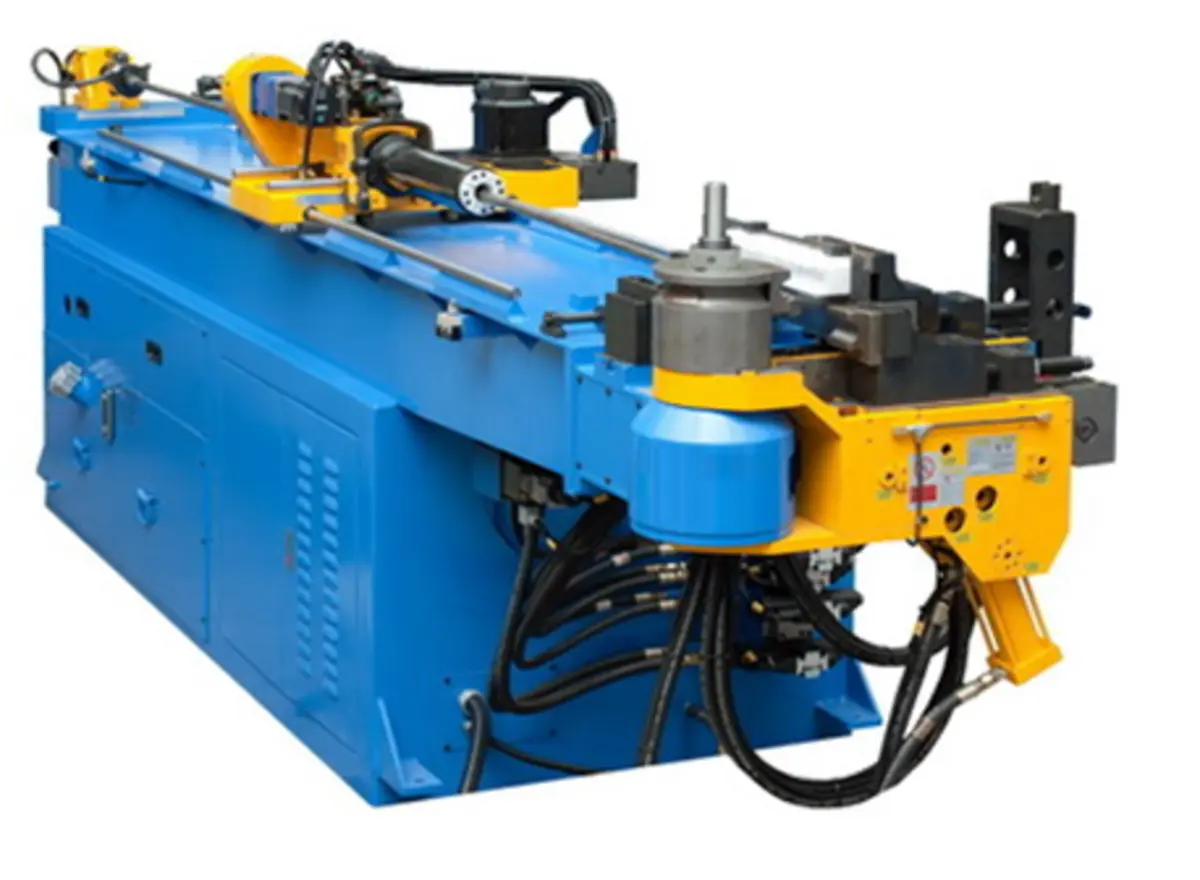

50-TSR

Bending Capacity / Round Tube / Mild Steel (S=40kgf/mm²): 50.8 x 2.0 mm
Bending Capacity / Round Tube / Non-Ferrous (S=25kgf/mm²): 50.8 x 3.5 mm
Bending Capacity / Round Tube / Stainless (S=60kgf/mm²): 50.8 x 1.4 mm
Bending Capacity / Square Tube / Mild Steel (S=40kgf/mm²): 40 x 2.0 mm
Bending Capacity / Solid Bar / Mild Steel (S=40kgf/mm²): 25 mm
Max. Bending Radius: 30 ~ 220 mm
Max. Bending Angle: 190 Degree
Max. Difference Between two Radii (R2-R1): NA mm
Max. Length over Mandrel: 3200 mm
Working Height: 1100 mm
Tooling Center Line Height: 40 mm
DOB (Bending) Speed: 105 deg / sec
Accuracy of DOB (Bending): ±0.1 Degree
DBB (Feeding) Speed: 160 ~ 980 mm / sec
Accuracy of DBB (Feeding): ±0.1 mm
POB Rotation) Speed: 270 deg / mm
Accuracy of POB (Rotation): ±0.1 Degree
Motor for Hydraulic: 3.8 Kw
Total Power: 20 Kw
Max. Pressure: 140 kgf / cm²
Hydraulic Tank Capacity: 130 Liter
Machine Weight: 3800 Kg
Machine Dimensions LxWxH: 5300 x 950 x 1500 mm
