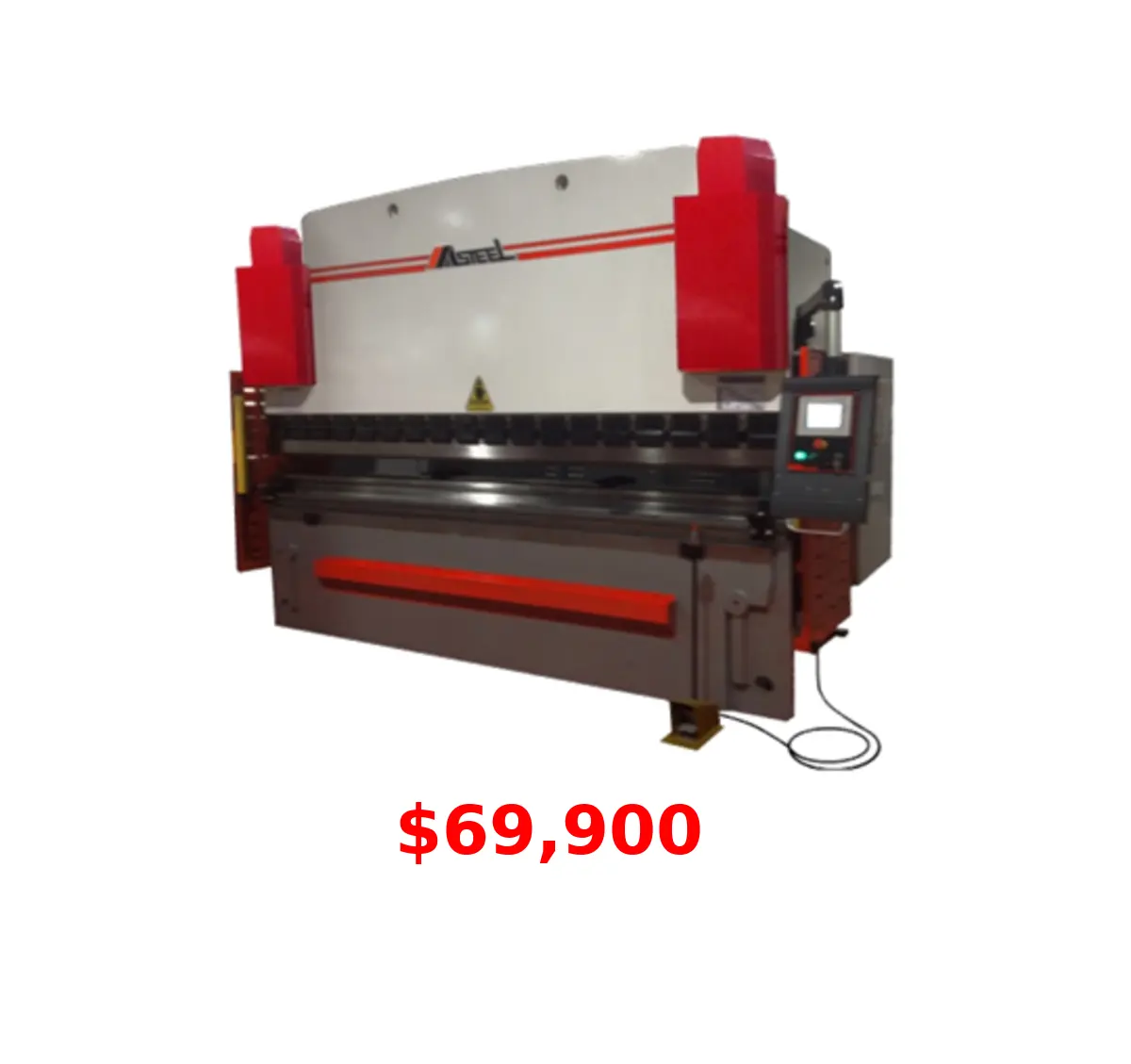

MASTEEL MBHSA-12190
TP-700 control
7" TOUCH SCREEN
CNC Y1/Y2/X/ AXIS
CNC CROWNING CONTROL
MODEL MBHSA-12190 Max. Capacity Tons 190 Max. Bending Length 12' Distance between Frames 122" Height of Bed 36" Bed Below Floor __ Depth of Throat 12-3/4" Length of Ram Stroke 8" Fast Approach Speed IPM 237 Press Speed IPM 25 Fast Return Speed IPM 245 Max. Open Height 17-1/8" Main Motor 15 Back gauge Travel 28" Weight Lbs 24,200 Dimensions L x W x H 151 x 70 x 105 TOOLING INCLUDED IN PRICE PUNCH HOLDER COMBINATION EUROPEAN/NORTH AMERICAN PUNCH GOOSENECK MP0 – G915EQ -25.5x100 R1/85 OR R2/85 DIE MASTEEL MD-4W5-110x090 4 WAY DIE
MODEL: MBHSA-12190
Max. Capacity Tons: 190
Max. Bending Length: 12'
Distance between Frames: 122"
Height of Bed: 36"
Bed Below Floor: __
Depth of Throat: 12-3/4"
Length of Ram Stroke: 8"
Fast Approach Speed IPM: 237
Press Speed IPM: 25
Fast Return Speed IPM: 245
Max. Open Height: 17-1/8"
Main Motor: 15
Back gauge Travel: 28"
Weight Lbs: 24,200
Dimensions L x W x H: 151 x 70 x 105
TOOLING INCLUDED IN PRICE
PUNCH HOLDER: COMBINATION EUROPEAN/NORTH AMERICAN
PUNCH: GOOSENECK MP0 – G915EQ -25.5x100 R1/85 OR R2/85
DIE: MASTEEL MD-4W5-110x090 4 WAY DIE
