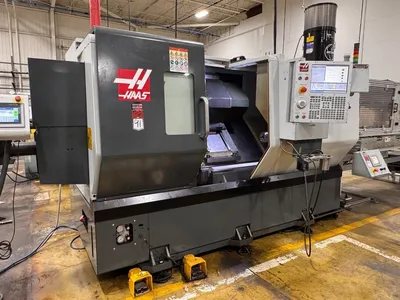

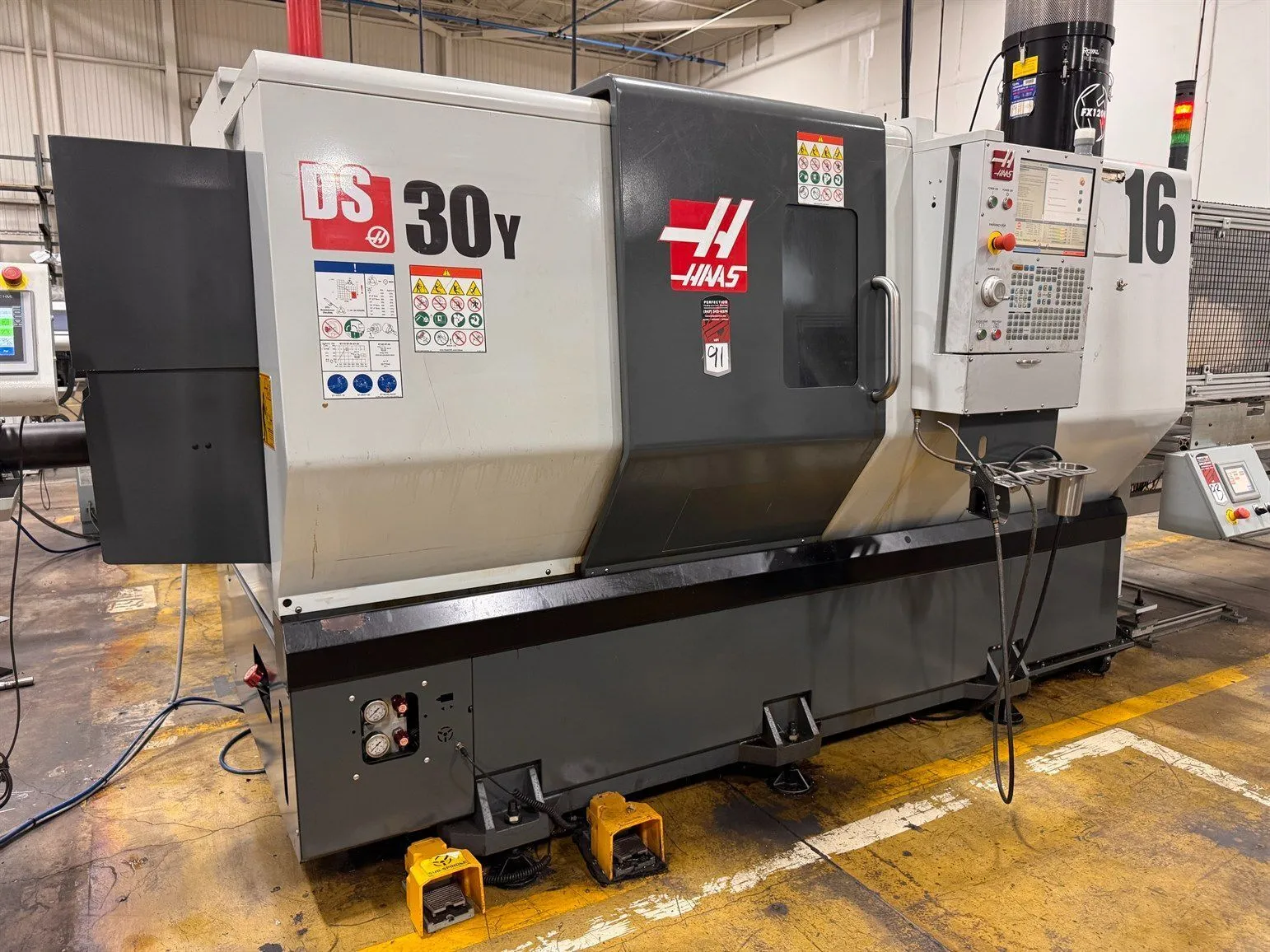

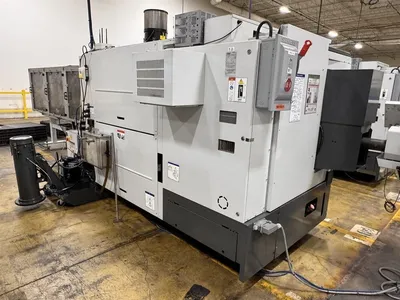

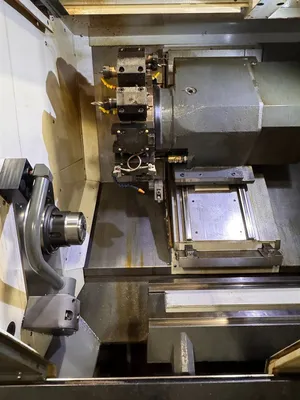

USED 2020 HAAS DS-30Y

2020 HAAS DS-30Y 7-Axis CNC Lathe, boasts a powerful 30 HP spindle with max speed of 4,500 RPM, bar capacity of 3", and advanced live tooling at 6,000 RPM. Equipped with collet chucks, tool setter, chip conveyer, and mist collector. Perfect for precision tasks.

Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Rapid Rate Z Axis: 945 IPM

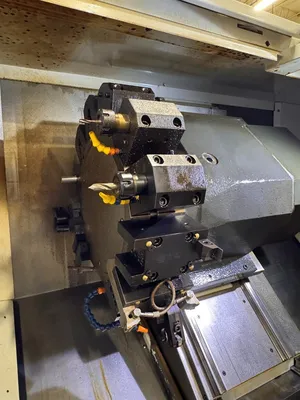

Turret Tools: 12 station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.8"
Swing Front Apron: 31.8"
Swing Over Cross Slide: 20.8"
Swing Second Spindle: 21.8"
Max Thrust X: 4100 lbf
Max Thrust Y: 2300 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-6
Drive System: Direct Speed
Max Torque: 275 ft-lbf
Spindle Bore ø: 3.50"
Main Spindle: C Axis
Max Rating: 5 hp
Positioning (±): 0.01 °
Brake Clamp Force: 1000 lbf
Brake Diameter: 14.4"
Interpolated Motion and Positioning

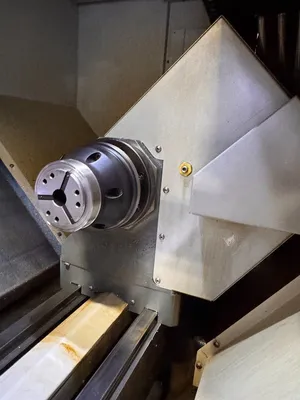

SUB SPINDLE:
Chuck Size: 8"
Spindle Nose: A2-5
Drive System: Direct Speed
Max Rating: 20 hp
Max Speed: 4800 rpm
Max Torque: 110 ft-lbf
Spindle Bore: 2"
Bar Capacity: 2"
Boring Bar Rear Clearance: 4"

LIVE TOOLING:
Y Axis: ± 2.0"
Max Speed: 6000 rpm
Drive Ratio: 1:1
Tooling: BMT65
Coolant Capacity: 65gal
Dimensions: 171" x 90" x 92"
Weight: 12,200 LBS

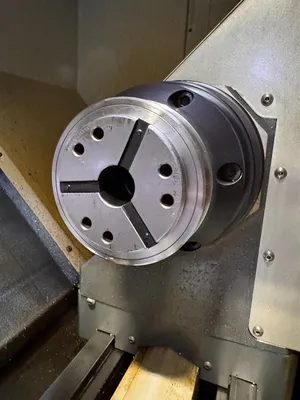

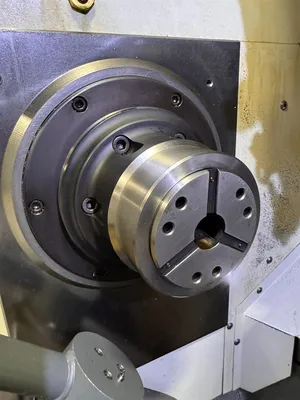

COLLET CHUCKS

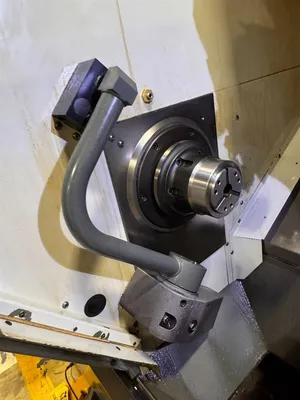

TOOL SETTER
CHIP CONVEYOR

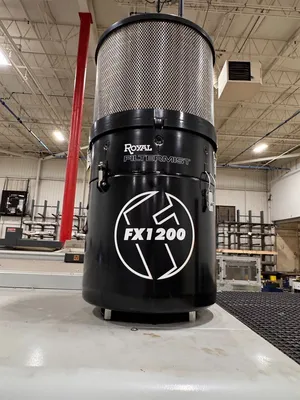

MIST COLLECTOR
