USED SUNFIRM MAXTEC MAXTEC

The Sunfirm Maxtec series lathe is engineered for large-diameter and long-length turning applications, especially in oilfield, heavy equipment and large component manufacturing. For example, the CST-42160 version offers a 42″ swing over bed, a 55″ swing over gap, and a machining length of 160″. Its massive structure, wide bed and strong spindle make it ideal for heavy cuts, long shafts, and large diameter workpieces.
The machine is typically equipped with a spindle bore of 7″ , a swing over bed of 42″, and X/Z travel that support high rapid traverse rates. The spindle nose is A2-20 in the example listing.  With CNC control, an 8-station turret and optional hydraulic tailstock, the machine offers a combination of size, automation, and rigidity.
Features & Options
Massive 42″ swing with 160″ center-distance capability for long shafts and large diameters
7″ spindle bore with A2-20 spindle nose for large bar or through-spindle work
High rapid traverse rate for faster machining times
Fanuc CNC control for automated turning and production setups

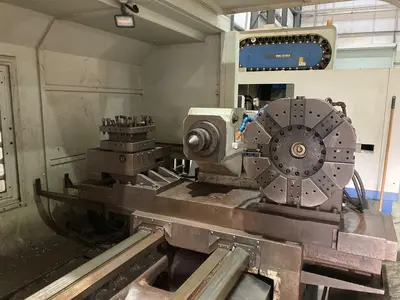

8-station turret, chip conveyor, hydraulic tailstock, and steady rests available depending on configuration
Heavy cast-iron bed and gap design capable of heavy cutting loads and large workpieces
Specifications may vary by configuration, options, and model year. Always verify with machine nameplate or factory documentation.

Manufacturer: Sunfirm Maxtec
Model: Maxtec
Machine Type: CNC Turning Center – Big Bore
Swing Over Bed: 42″
Swing Over Gap: 55″
Distance Between Centers (Z Travel): 160″
Spindle Bore: 7″
Spindle Nose: A2-20
X-Axis Travel: 26.3″
Z-Axis Travel: 170.3″

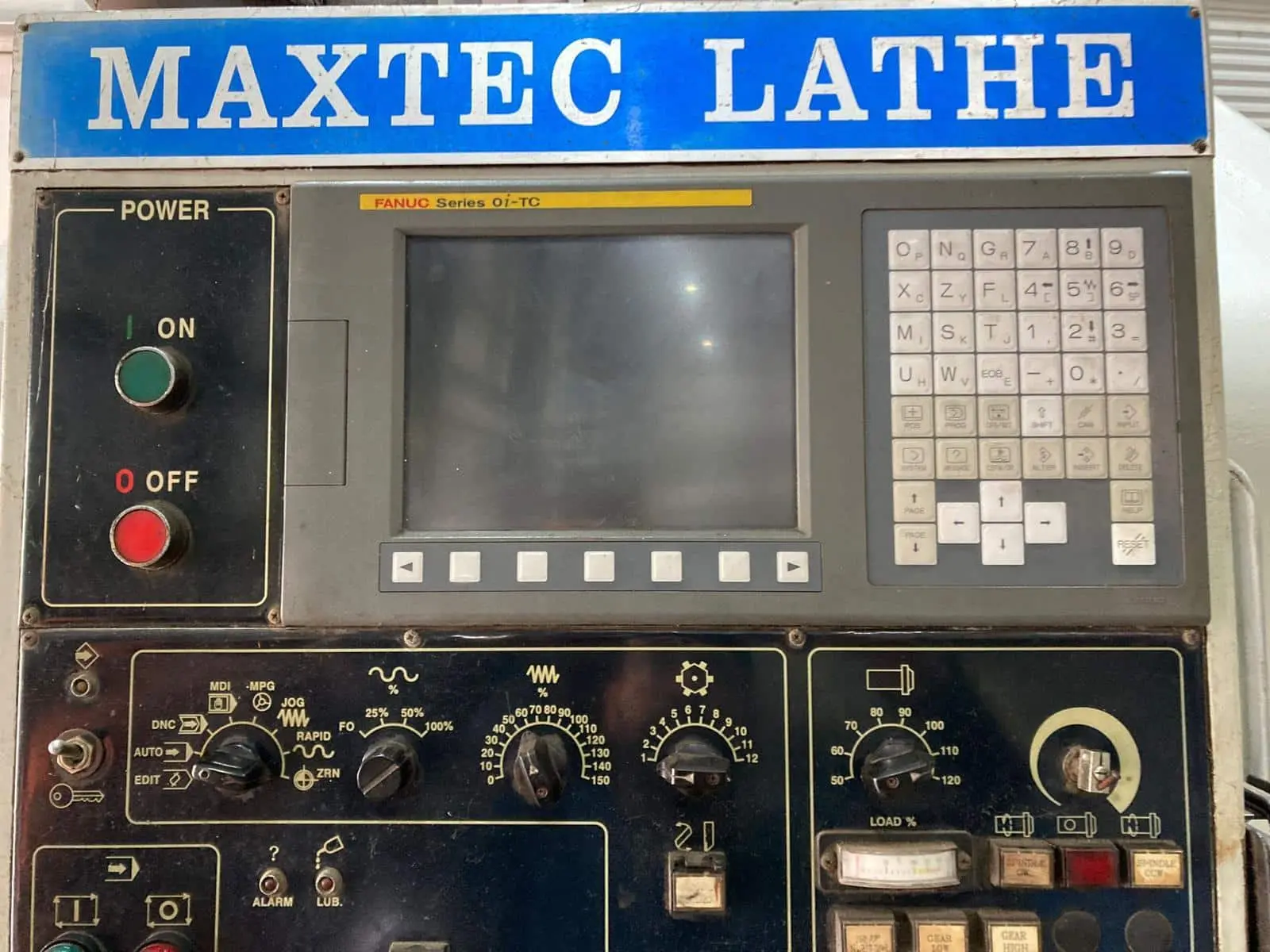

Control: Fanuc 0i-TC
Machine Weight: ~35,500 lb (≈16,100 kg)
Final Listing Price: Request Quote
