#3211 USED CUBIC VB 1600.

The Cubic VB-1600 is a robust vertical machining center engineered for speed, stability, and accuracy. It features a 10,000 rpm cartridge-type spindle supported by P4 precision bearings, a 24-tool arm-type automatic tool changer, and a spindle oil cooler system to maintain thermal stability. With four box-way guideways on the Y axis, precision ground ball screws, and Fanuc control, the VB-1600 is ideal for demanding production and job shop environments requiring tight tolerances and repeated high performance.
Features & Options
10,000 rpm high-speed cartridge spindle with precision bearings
24-tool arm type automatic tool changer
Spindle oil cooling system for thermal stability
Four box-way guide surfaces on the Y axis for load distribution
Precision ball screws with double-nut, large diameter
Turcite-B coating on all slideway surfaces for wear resistance
Fast tool-to-tool time
Fanuc 0iM CNC control
Ideal for precision milling, production throughput environments
Specifications may vary by machine build or retrofit. Please confirm values from the Cubic VB-1600 nameplate or factory documentation.

Model: VB-1600
Machine Type: Vertical Machining Center
Spindle Speed: 10,000 rpm
Tool Changer: 24-tool ATC
Guideway Design: Box-way on Y axis
Spindle Bearing Class: P4 precision class
Cooler / Temperature Control: Spindle oil cooler to maintain constant temp
Tool-to-Tool Time: ~2.5 sec

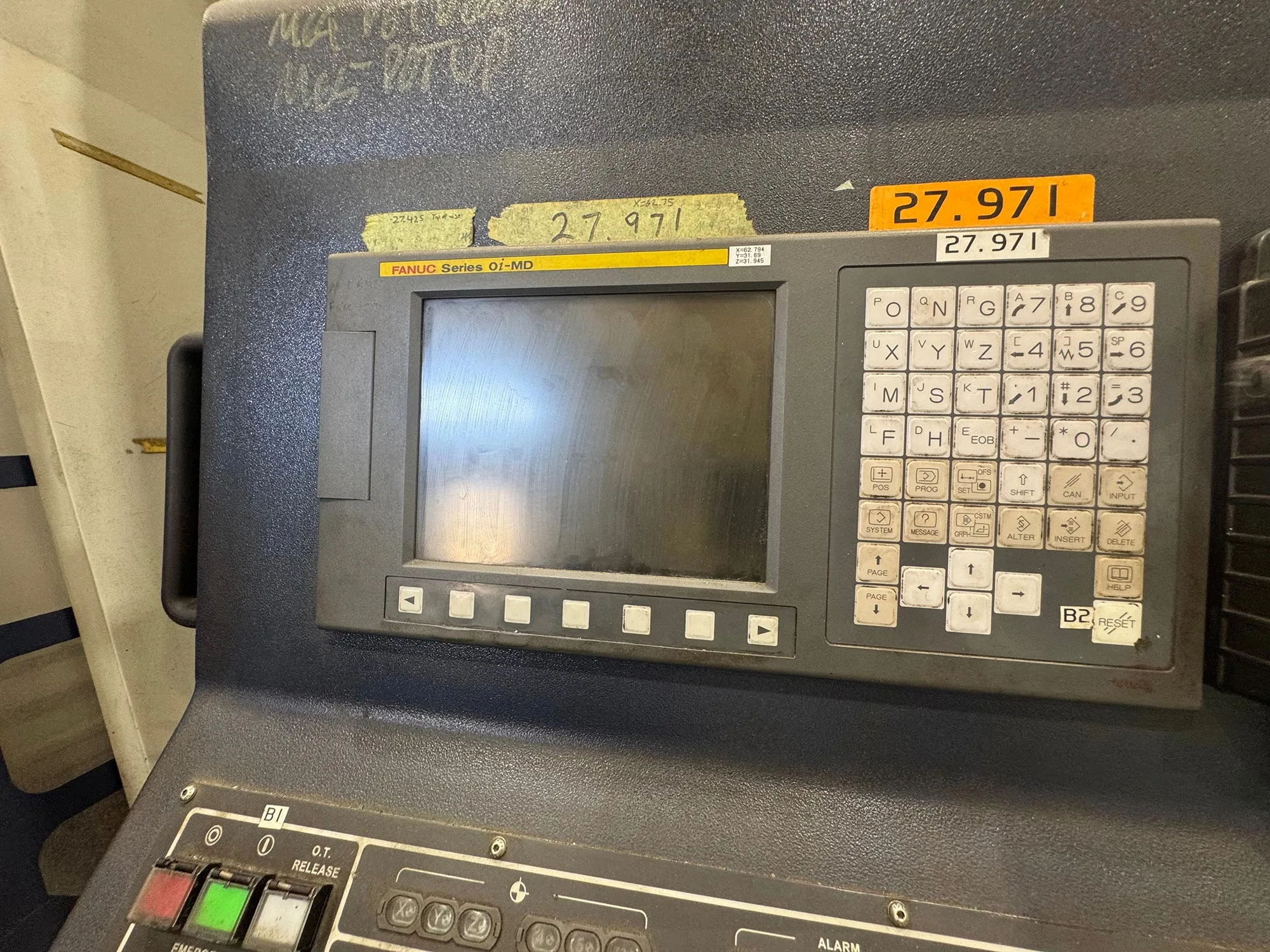

Control System: Fanuc 0iM
Machine Construction: T-slotted bed, robust casting
Other Features: Turcite-B coating on slideways, 100% laser tested positioning accuracy
Final Listing Price: Request Quote
