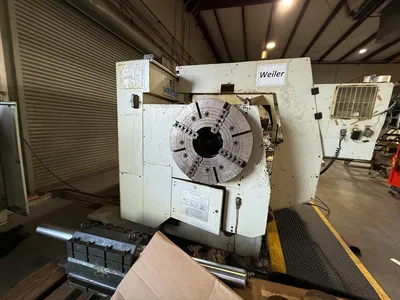

This 2001 Weiler E 90 / 4.5 M CNC lathe represents a robust and versatile turning solution from one of Germany’s most respected machine tool builders. Designed around a wide, hardened, and ground flat bed, the E90 platform is optimized for stability and accuracy when machining long or heavy workpieces. With approximately 4,500 mm between centers, this machine is particularly well suited for shaft manufacturing, hydraulic components, rollers, and maintenance or repair applications where length capacity is critical.
The machine is equipped with a powerful spindle driven by a 5.5 kW motor and utilizes a DIN 55027 Size 11 spindle nose, allowing the use of large industrial chucks and fixtures. The generous X-axis travel provides ample radial clearance for tooling, while the extended Z-axis travel accommodates long parts without repositioning. A manual four-way toolpost offers flexibility for varied turning operations, making the machine ideal for both skilled manual machinists and CNC-assisted work.
Fully enclosed guarding and an integrated coolant system support safe and clean operation in industrial environments. The Weiler CNC/teach-in style control allows operators to combine manual control with programmable cycles, making the machine especially attractive for job shops, maintenance departments, and low-to-medium volume production where setup speed and operator control are essential.
Features & Options
4,500 mm (177″) between centers for long shafts and oversized components

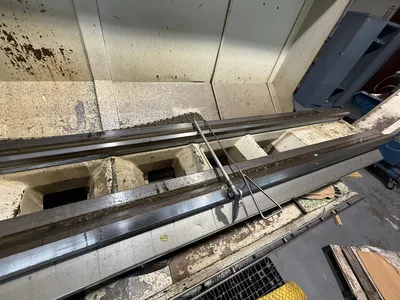

Heavy cast iron bed with hardened and ground guideways for precision turning
DIN 55027 Size 11 spindle nose supports large industrial chucks and fixtures
Teach-in CNC control allows programmable cycles combined with manual operation
Manual 4-way toolpost offers flexible tooling configurations for varied operations
Large X-axis clearance for heavy tooling and large diameter workpieces

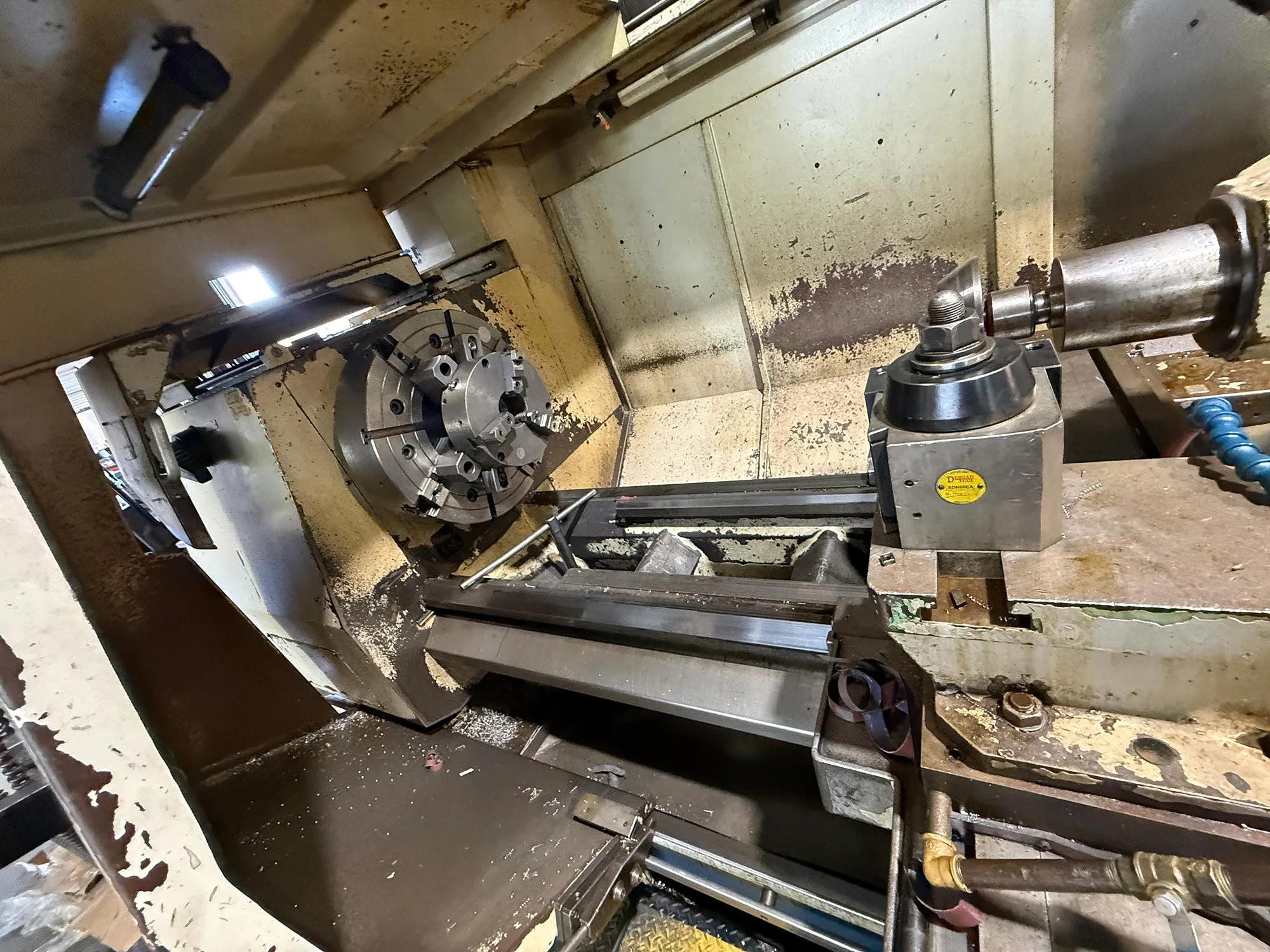

Integrated coolant system and full guarding for clean, safe operation
Ideal for shaft manufacturing, hydraulic cylinders, rollers, and repair work
Specifications may vary by configuration. Verify with manufacturer.
Year: 2001
Manufacturer: Weiler
Model: E 90 / 4.5 M
Machine Type: CNC / Teach-In Engine Lathe
Axis Count: 2-Axis (X, Z)
Swing Over Bed: ≈ 35.4″ (900 mm)
Swing Over Cross Slide: ≈ 20.9″ (530 mm)
Distance Between Centers: 177″ (4,500 mm)
X-Axis Travel: ≈ 23″ (590 mm)
Z-Axis Travel: ≈ 177″ (4,500 mm)
Spindle Nose: DIN 55027 Size 11
Spindle Speed Range: ≈ 4 – 1,120 rpm
Spindle Motor: 5.5 kW (≈7.5 hp)

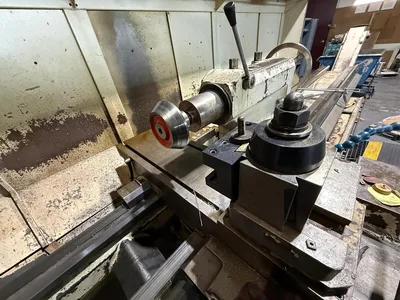

Tooling: Manual 4-way toolpost

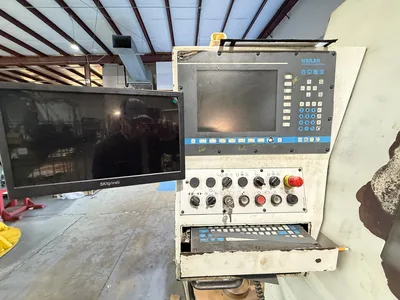

Control System: Weiler CNC / Teach-In Control
Coolant System: Integrated coolant system
Machine Weight: ≈ 30,000 – 35,000 lb
Final Listing Price: Request Quote
