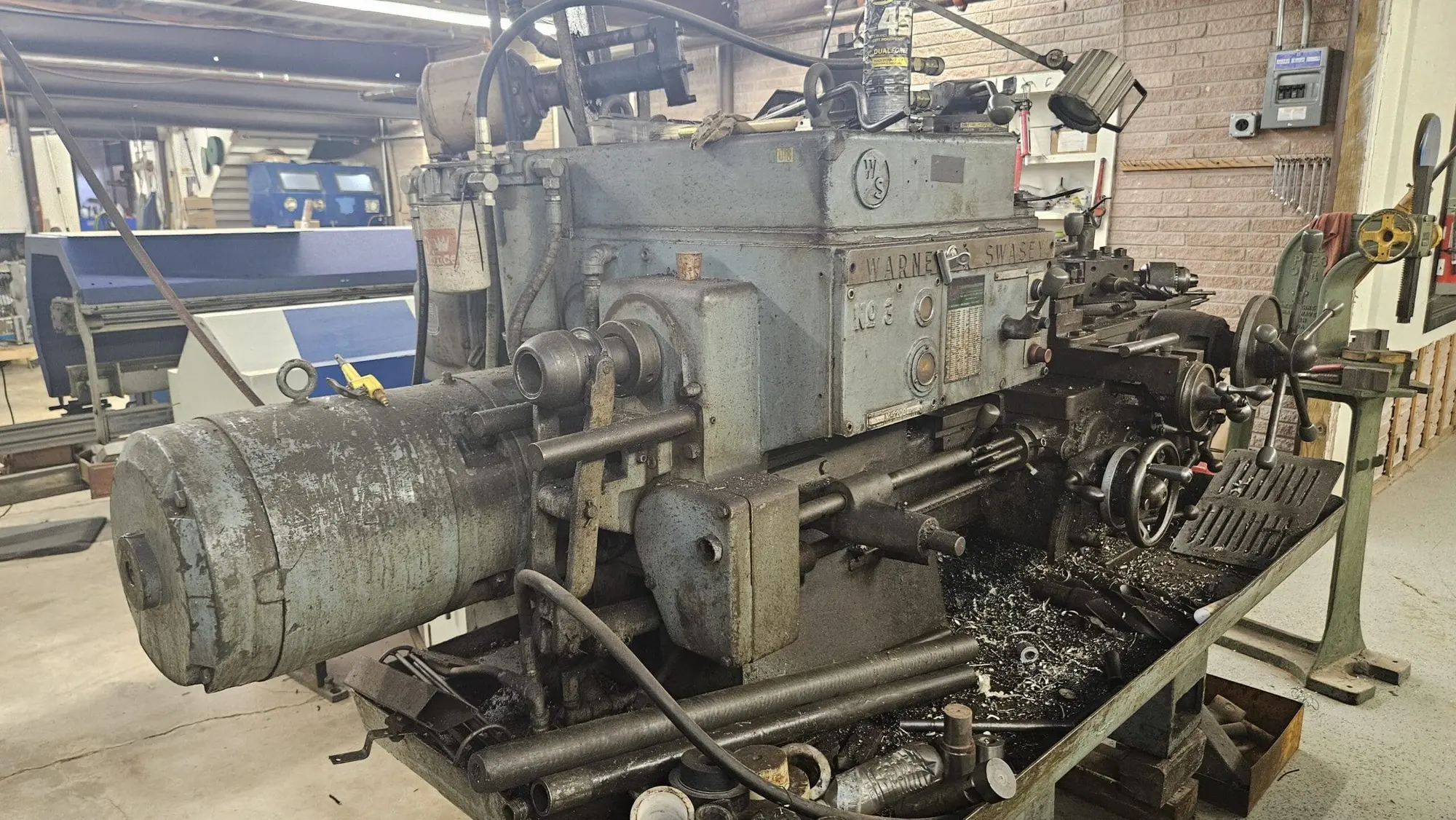

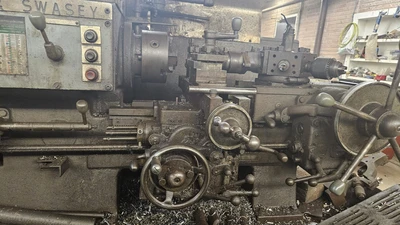

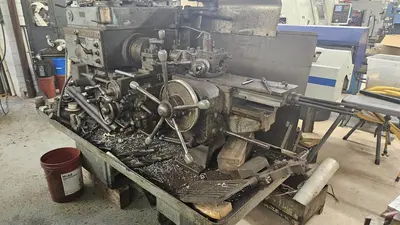

USED WARNER & SWASEY NO. 3 M-2200

The Warner & Swasey No. 3 M-2200 is a classic American ram-type turret lathe built for high-production turning and cutoff work. With approximately 15-3/8″ swing over the bed and 7″ swing over the cross slide, this square-head No. 3 model is designed to handle medium-diameter shafts, bushings, and bar work with excellent rigidity. Its 2″ spindle bore and 8″ 3-jaw chuck make it well suited for both chucking and bar-fed operations.
This M-2200 version features a 6-sided turret, geared headstock with speeds from about 45 to 2,262 rpm, and a 5/10 hp two-speed main motor (typical listing). It’s a proven workhorse for production environments where repeat setups, simple tooling layouts, and mechanical reliability are more important than CNC capability.
Features & Options
No. 3 square-head ram-type turret lathe for production turning

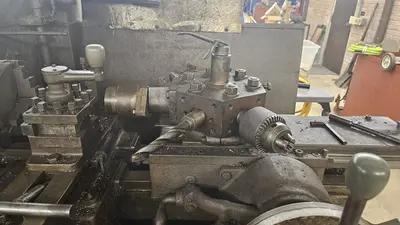

6-station turret with through capacity for bar work

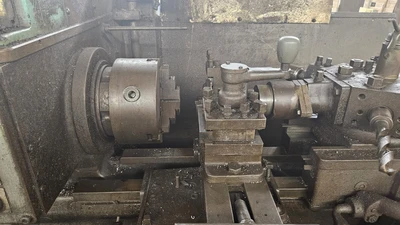

8″ 3-jaw chuck and 2″ spindle bore
Geared headstock with 45–2,262 rpm speed range
Two-speed 5/10 hp main motor for power and flexibility
Mechanical longitudinal and cross feeds for repetitive operations
Heavy cast-iron construction for rigidity and smooth cutting
Ideal for high-volume shaft, bushing, and general production work
Specifications are based on typical listings for the Warner & Swasey No. 3 M-2200 turret lathe. Actual details may vary by machine. Always verify with the nameplate or OEM documentation.

Manufacturer: Warner & Swasey
Model: No. 3 M-2200
Machine Type: Ram-Type Turret Lathe
Axis Count: 2-Axis manual
Swing Over Bed: 15-3/8″
Swing Over Cross Slide: 7″
Spindle to Turret Face (Max): 26-7/8″
Chuck Size: 8″ 3-jaw chuck
Round Bar Capacity: 1-1/2″ through turret; 2″ spindle bore
Control System: Manual, geared headstock with mechanical feeds
Spindle Speed Range: 45 – 2,262 rpm
Spindle Bore: 2.0″
Spindle Nose / Taper: Warner & Swasey collet/chuck nose
Main Motor: 2-speed 5 / 10 hp
Tool Capacity: 6-station ram turret
X-Axis Travel (Cross): Not specified
Y-Axis Travel: Not applicable
Z-Axis Travel (Longitudinal): ≈ 26-7/8″ from spindle nose to turret face
Product Work Envelope: Approx. 15-3/8″ swing × 26-7/8″ working length
Electricals: Typical 440V / 3-phase / 60 Hz
Approx. Dimensions: ~100″ L × 54″ W
Approx. Machine Weight: ~4,000 lb
Final Listing Price: Request Quote
