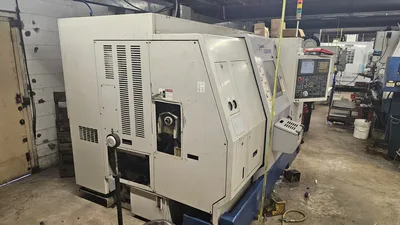

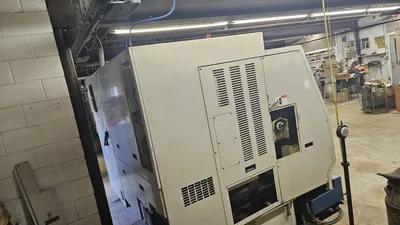

USED 2006 DAEWOO / DOOSAN PUMA TT1500SY

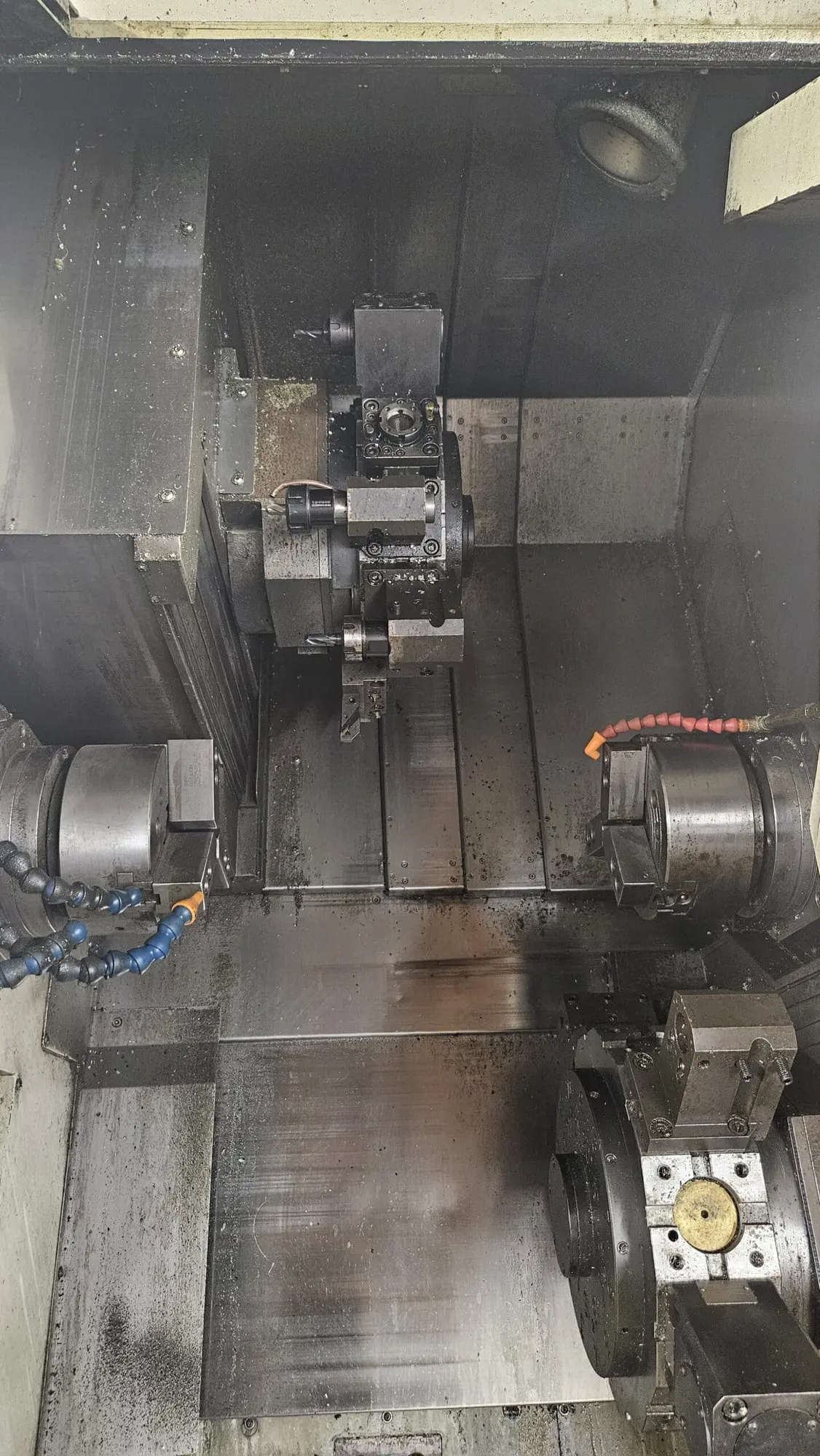

The 2006 Daewoo/Doosan Puma TT1500SY is a compact, high-productivity 6-axis CNC turning center designed for complex parts and full machining in one setup. With twin opposed spindles, upper and lower live-tool turrets, Y-axis on the upper turret, and full C-axis on both spindles, it can turn, mill, drill, and perform back-side operations without secondary setups. Dual 6″ chucks, 2.0″ bar capacity, and a max turning diameter around 9″ make it ideal for automotive, aerospace, and precision job shop production.
Heavy slant-bed construction, high-speed 6,000 rpm spindles, and Fanuc 18i-T CNC control provide accuracy, rigidity, and reliability. The Puma TT1500SY’s 24 total turret stations (12 upper + 12 lower) with live tooling capability allow dense tooling layouts and minimized changeover time. This platform is built for lights-out, multi-op production where cycle time and part consistency are critical.
Features & Options
Twin 6″ spindles with 2.0″ bar capacity for complete front/back machining
Upper and lower 12-station turrets (24 total stations) with live tooling
Y-axis on upper turret and full C-axis on both spindles for milling and contouring
6,000 rpm main and sub-spindles with 20 hp drives
Rigid slant-bed construction for accuracy and stability
Fanuc 18i-T CNC control with multi-axis synchronization
Ideal for complex, high-volume production parts
Typically equipped with bar feeder, parts catcher, parts conveyor, and chip conveyor
Specifications may vary depending on exact build and options. Always verify details with the machine nameplate or OEM documentation.

Year: 2006
Manufacturer: Daewoo / Doosan
Model: Puma TT1500SY
Machine Type: Twin-Spindle, Twin-Turret Multi-Axis CNC Turning Center
Axis Count: 6-Axis (X1, Z1, X2, Z2, Y, C)
Chuck Size (Main): 6″ hydraulic
Chuck Size (Sub): 6″ hydraulic
Control System: Fanuc 18i-T CNC
Spindle Speed (Main/Sub): 60 – 6,000 rpm
Spindle Taper / Nose: A2-5 spindle nose
Spindle Bore: 2.0″ main, 1.77″ sub
Bar Capacity: 2.0″
Spindle Motor: 20 hp main / 20 hp sub
Max Turning Diameter: 9.05″
Max Turning Length: 20.1″
Swing Over Bed: 23.62″
Distance Between Spindles: ≈ 29.6″
X-Axis Travel (Upper Turret X1): 6.5″
X-Axis Travel (Lower Turret X2): 7.48″
Y-Axis Travel: 4.0″ (±2.0″)
Z-Axis Travel (Z1): 18.5″
Z-Axis Travel (Z2): 19.29″
C-Axis Travel: 360°
Tool Capacity: 24 total
Product Work Envelope: Turning dia. up to 9.05″ × turning length 20.1″; dual-spindle transfer
Rapid Traverse (X / Z / Y): 787 / 945 / 295 ipm
Machine Weight: ≈ 11,500 lb
Final Listing Price: Request Quote
