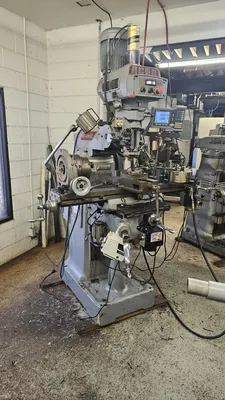

The 2012 Acer BVS-3VS2 is a high-quality variable-speed knee milling machine designed for precision and reliability. Built with Meehanite castings and hand-scraped ways, this mill offers smooth operation, excellent rigidity, and long-term accuracy. Its 9″ × 49″ table and 3 hp motor provide ample capacity for toolroom, maintenance, and production work. With its standard R8 spindle and variable-speed drive, the BVS-3VS2 delivers both versatility and performance for a wide range of machining operations.
Manufactured by Acer, a trusted name in precision machine tools, the BVS-3VS2 includes standard features such as precision-ground leadscrews, one-shot lubrication, and hardened slideways. The head tilts, nods, and swivels for angular machining, while optional digital readouts and power feeds enhance usability and productivity. This model remains a popular choice for shops needing dependable Bridgeport-style milling performance.
Features & Options
Heavy-duty Meehanite castings for vibration-free accuracy
Variable-speed head with 3 hp motor (60–4,200 rpm range)
R8 spindle with precision quill bearings
9″ × 49″ precision-ground table with hardened ways
One-shot lubrication system for easy maintenance
Head tilts 90° left/right and nods 45° front/back

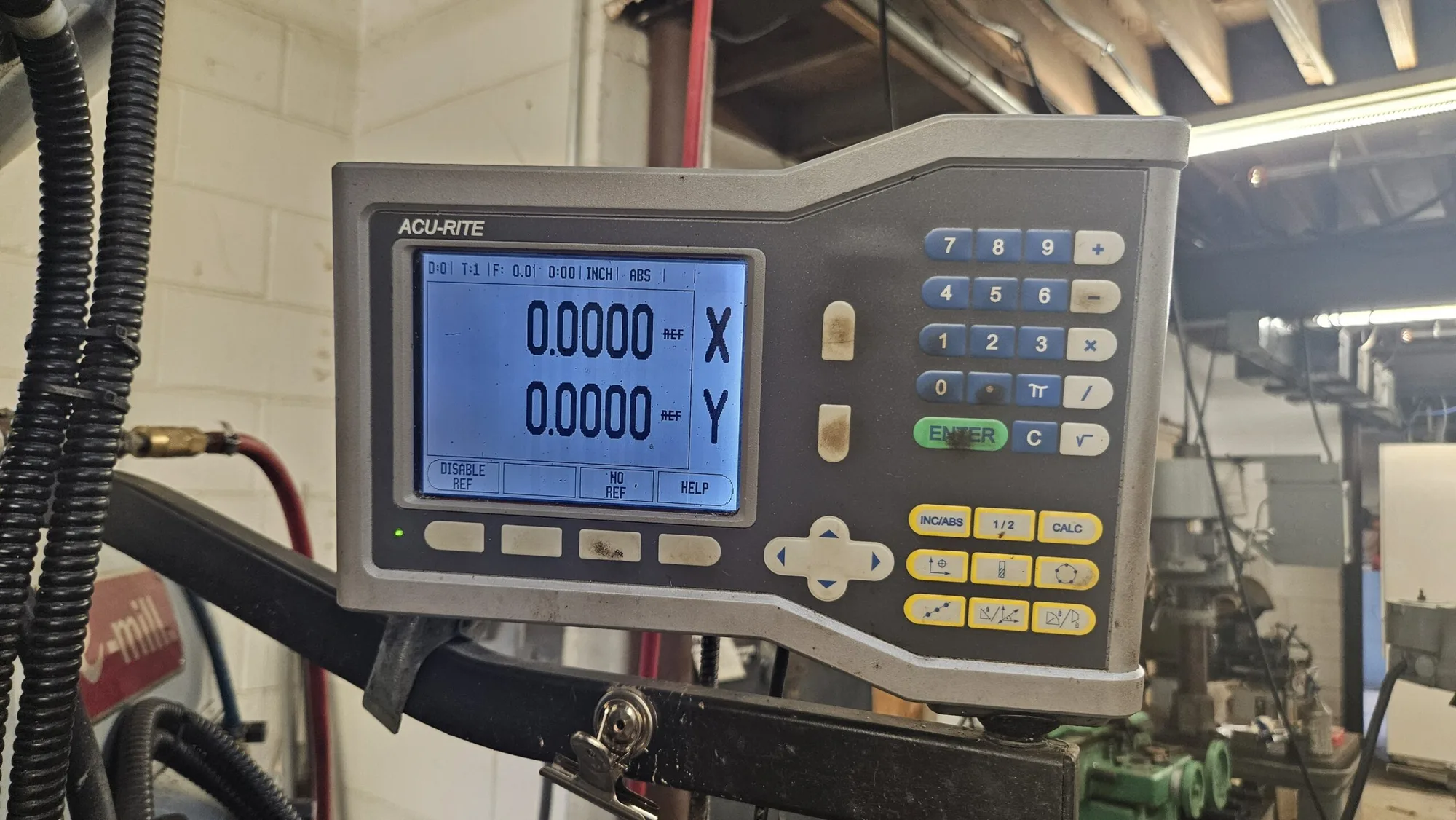

Optional power feed and 2-axis digital readout
Perfect for toolroom, maintenance, and prototype machining
Specifications are based on the standard Acer BVS-3VS2 model. Verify configuration and options with the machine’s nameplate or manufacturer documentation.
Manufacturer: Acer
Model: BVS-3VS2
Year: 2012
Machine Type: Knee Mill
Table Size: 9″ × 49″
X-Axis Travel: 34″
Y-Axis Travel: 12″
Z-Axis (Knee) Travel: 16″
Quill Travel: 5″
Spindle Taper: R8
Spindle Speed Range: 60–4,200 rpm
Spindle Motor: 3 hp
Head Movement: 90° left/right, 45° front/back
Quill Feed: 0.0015″ / 0.003″ / 0.006″ per rev
Machine Weight: ~2,450 lb (1,110 kg)
Final Listing Price: Request Quote
