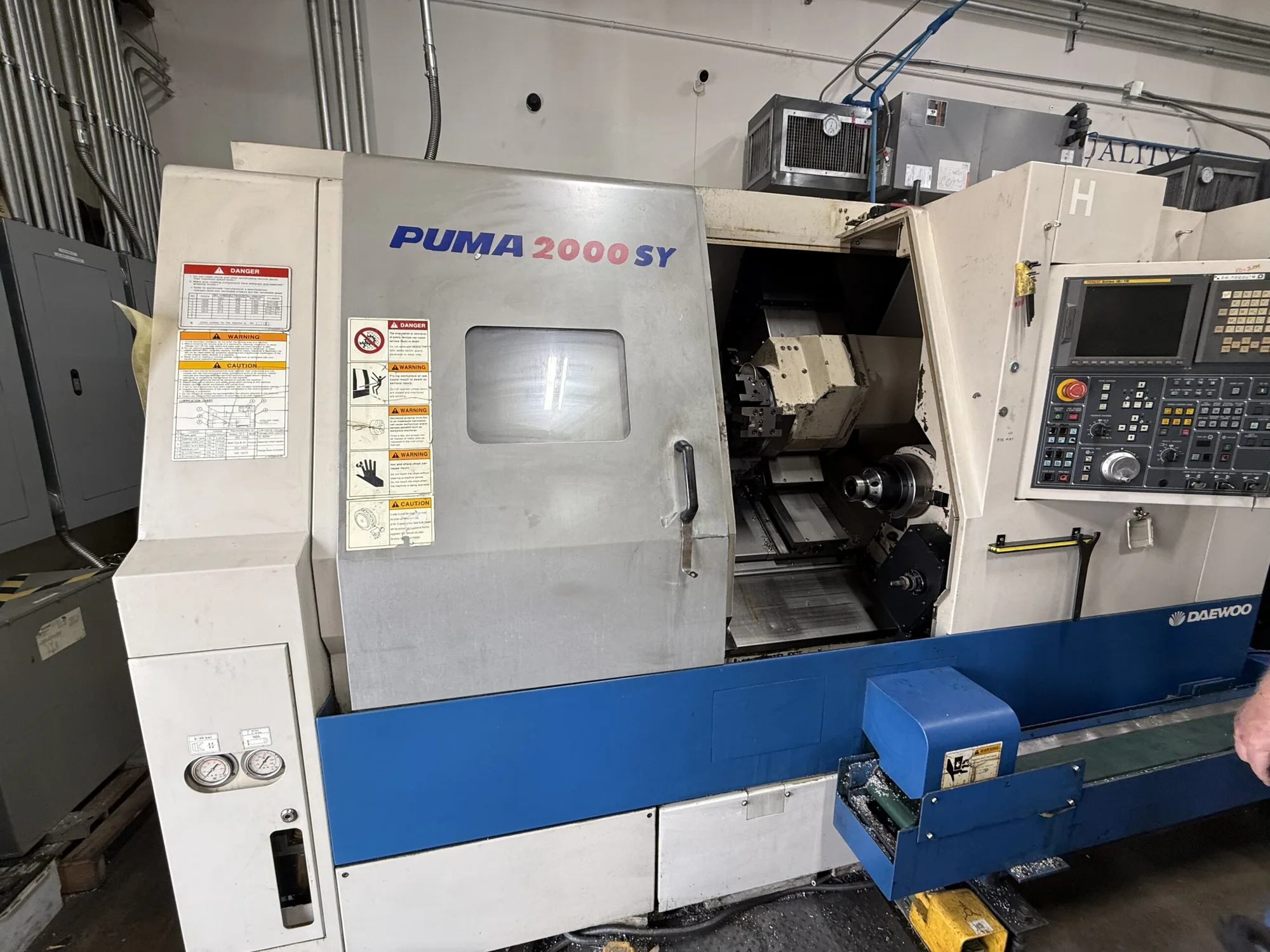

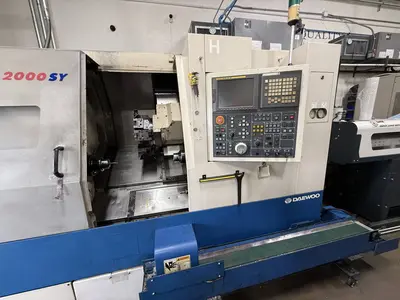

USED DOOSAN / DAEWOO PUMA 200SY

The Doosan Puma 200SY (also known as the Daewoo Puma 200SY) is a compact, high-performance multi-axis CNC turning center designed for full part machining in a single setup. Featuring a main spindle, sub-spindle, Y-axis capability, and C-axis control, it enables turning, milling, drilling, and back-side operations without manual intervention. This configuration enhances productivity and reduces setup time for complex components.
The machine provides a swing over bed of approximately 23.6″ (600 mm), a maximum cutting diameter of 11.8″ (300 mm), and a cutting length of about 20″ (510 mm). It’s powered by a 25 hp main spindle motor delivering up to 5,000 rpm and a 7.5 hp sub-spindle motor capable of up to 6,000 rpm. The Puma 200SY’s rigid slant-bed construction ensures stability and vibration-free machining for superior part finish and accuracy.
Features & Options
Main and sub-spindle configuration for complete part machining
Y-axis and C-axis for off-center milling and drilling
12-station live tooling turret
High-torque 25 hp main spindle motor

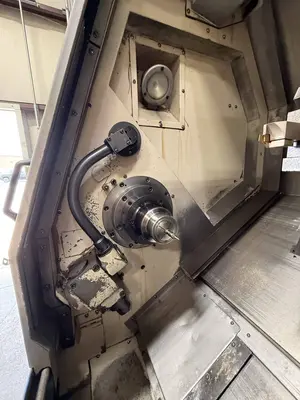

Sub-spindle for secondary operations and back working
Rigid slant-bed construction for accuracy and durability
Fanuc CNC control for efficient operation
Automatic lubrication, coolant, and chip conveyor
Compact footprint ideal for production shops
Specifications may vary depending on configuration and year. Always verify with Doosan/Daewoo factory documentation or machine nameplate.

Manufacturer: Doosan / Daewoo
Model: Puma 200SY
Machine Type: Multi-Axis CNC Turning Center
Swing Over Bed: 23.6″
Max Cutting Diameter: 11.8″
Max Cutting Length: 20″
Chuck Size: 8″ hydraulic
Bar Capacity: 2.6″
Main Spindle Speed: 5,000 rpm
Sub-Spindle Speed: 6,000 rpm
Main Spindle Motor: 25 hp
Sub-Spindle Motor: 7.5 hp
Spindle Nose: A2-6
Turret Stations: 12
X-Axis Travel: 8.1″
Y-Axis Travel: ±2.0″
Z-Axis Travel: 20.5″

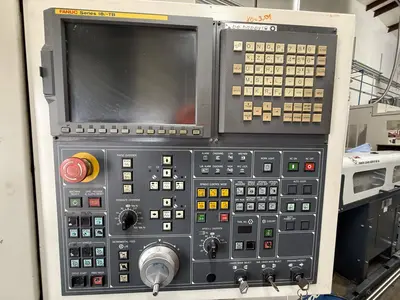

Control: Fanuc 18i-TB / 21i-TB CNC
Machine Weight: ~12,000 lb
Final Listing Price: Request Quote
