USED DOOSAN / DAEWOO PUMA TT S2000Y

The Doosan Puma TT S2000Y (also known as the Daewoo Puma TT S2000Y) is an advanced multi-axis CNC turning center engineered for high-productivity machining of complex components. Featuring twin spindles, twin turrets, and Y-axis capability, it allows simultaneous machining on both spindles, dramatically reducing cycle times and part handling. Each turret includes live tooling and full C-axis interpolation for milling, drilling, and contouring operations.
With a swing over bed of 23.6″ (600 mm), a maximum turning diameter of 8.3″ (210 mm), and a maximum turning length of 13″ (330 mm), the Puma TT S2000Y is ideal for automotive, aerospace, and medical parts requiring precision multi-operation machining. Both spindles deliver up to 6,000 rpm, powered by 20 hp vector drives. A Fanuc 31i-TB CNC control synchronizes both machining sides for simultaneous cutting or mirrored operations, ensuring fast and accurate production.
Features & Options
Twin-turret, twin-spindle configuration for simultaneous machining
Y-axis and C-axis for off-center milling and contouring
12 live tooling stations per turret
6,000 rpm spindles powered by 20 hp drives
Automatic part transfer between spindles

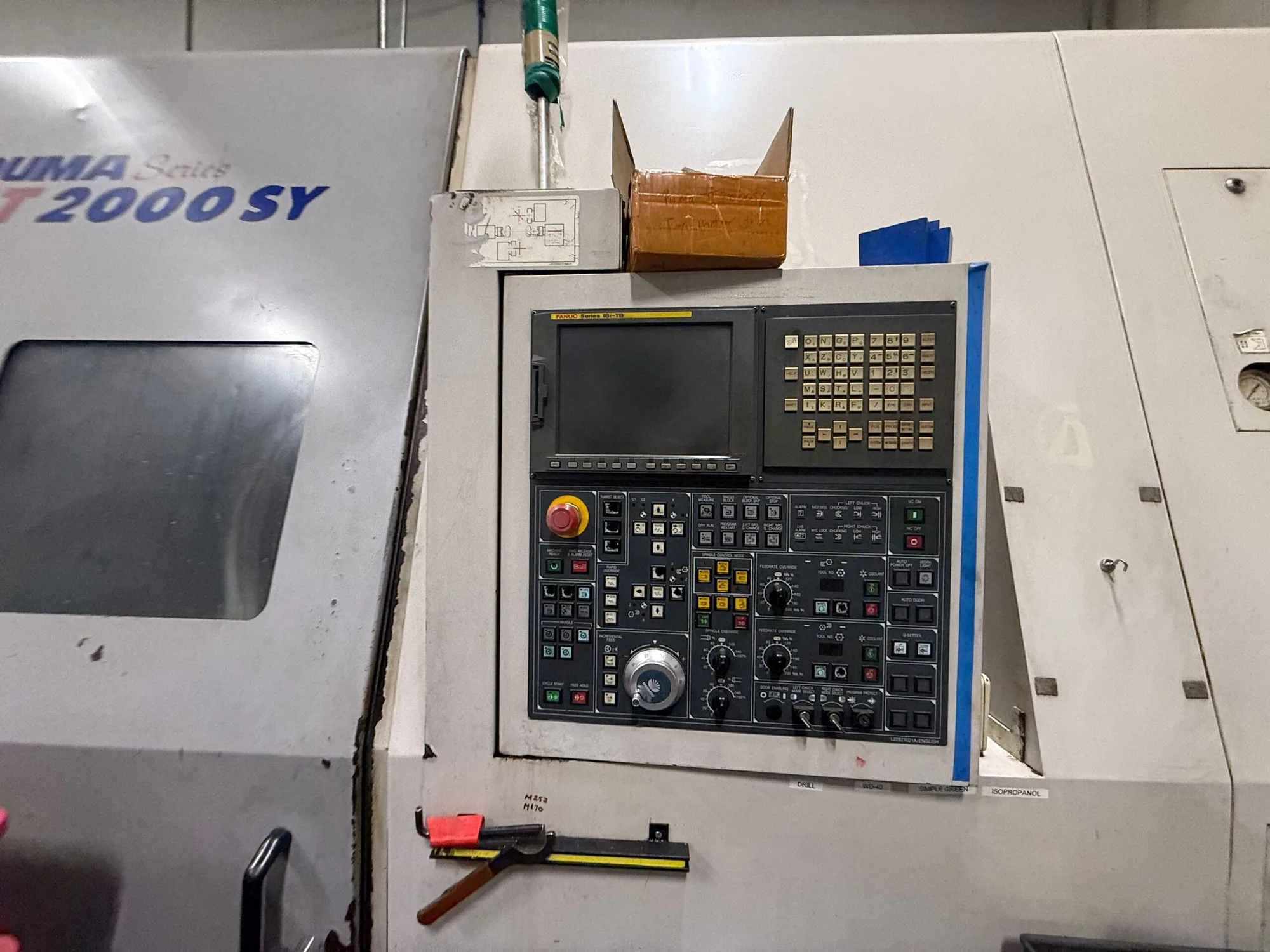

Fanuc 31i-TB CNC with synchronization control
Rigid slant-bed structure for precision and durability
Automatic lubrication, coolant, and chip management systems
Ideal for complex, high-volume production work
Specifications may vary depending on configuration and year. Always verify with Doosan/Daewoo factory documentation or machine nameplate.

Manufacturer: Doosan / Daewoo
Model: Puma TT S2000Y
Machine Type: Twin-Turret, Twin-Spindle CNC Turning Center
Swing Over Bed: 23.6″ (600 mm)
Max Turning Diameter: 8.3″ (210 mm)
Max Turning Length: 13″ (330 mm)

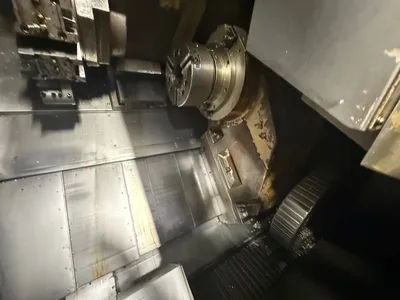

Chuck Size: 6″ hydraulic (each spindle)
Bar Capacity: 2.0″ (51 mm)
Main Spindle Speed: 6,000 rpm
Sub-Spindle Speed: 6,000 rpm
Main Spindle Motor: 20 hp (15 kW)
Sub-Spindle Motor: 20 hp (15 kW)
Spindle Nose: A2-5
Turrets: 2
Turret Stations: 12
X-Axis Travel: 6.3″
Y-Axis Travel: ±2.0″
Z-Axis Travel: 13″
Control: Fanuc 31i-TB CNC
Machine Weight: ~15,000 lb
Final Listing Price: Request Quote
