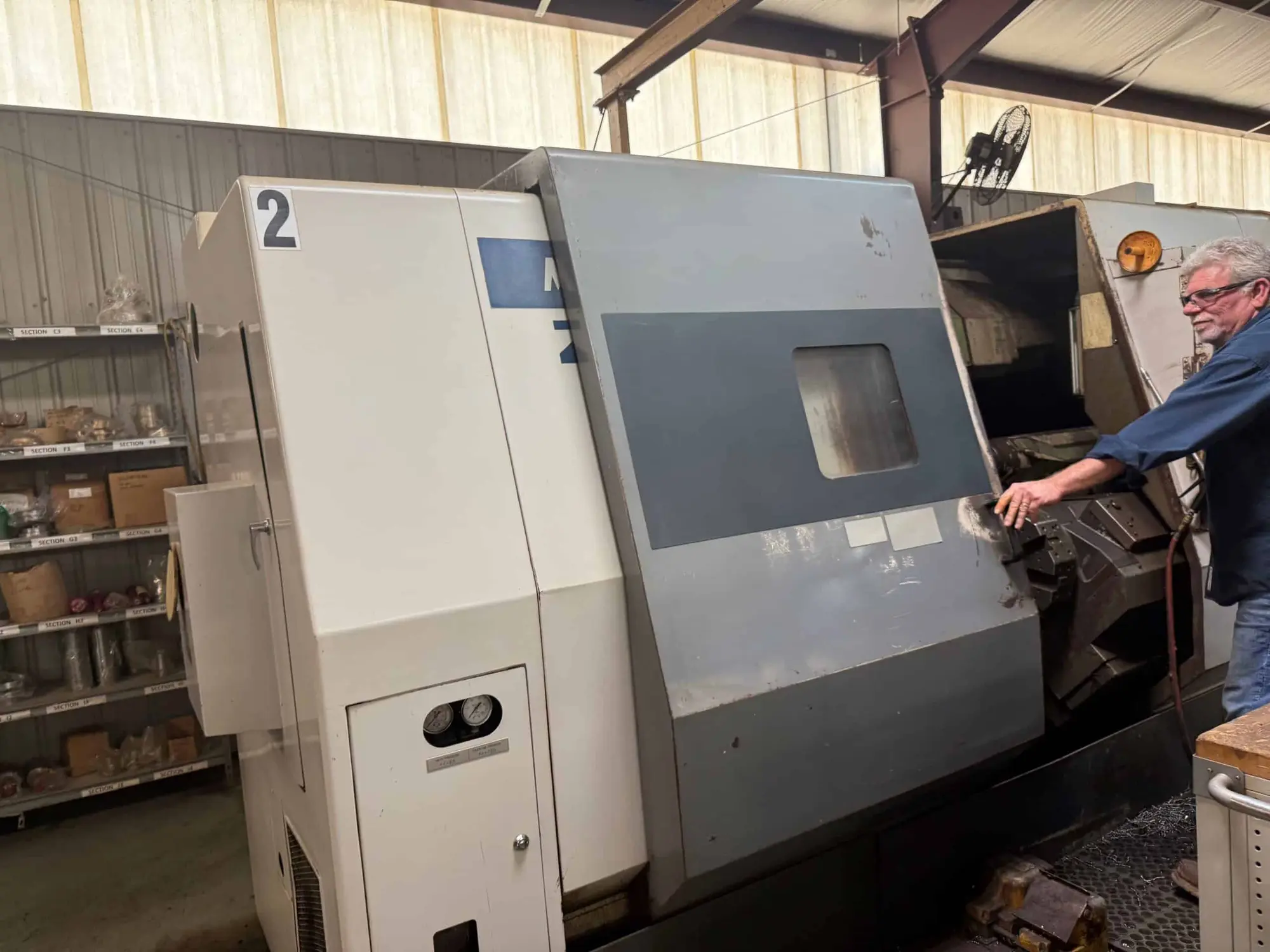

USED MORI SEIKI ZL-35MC

The Mori Seiki ZL-35MC is a powerful multi-function CNC turning center designed for complex part machining in a single setup. Featuring twin spindles, live tooling, and C-axis capability, it provides full milling, drilling, and contouring functions in addition to turning. With a large 21.7″ (550 mm) swing and a maximum turning length of approximately 33.4″ (850 mm), the ZL-35MC handles medium to large parts with excellent rigidity and precision.
The machine features dual opposed spindles for balanced machining and synchronized part transfer between sides, improving efficiency for multi-operation work. The live tooling turret supports driven tools for milling, drilling, and tapping operations. Powered by a robust 40 hp main spindle motor and equipped with a Fanuc or Mori MSC CNC control, the ZL-35MC offers reliability and productivity for demanding production environments such as automotive, aerospace, and heavy equipment manufacturing.
Features & Options
Twin-spindle design for complete part machining
Live tooling and C-axis for milling and drilling operations
12-station driven-tool turret
High-torque 40 hp spindle motor
Dual synchronized spindles for balanced production
Rigid slant-bed construction for precision and stability
Automatic lubrication, chip conveyor, and coolant system
Fanuc or Mori MSC CNC control for reliability
Ideal for automotive, aerospace, and heavy component machining
Specifications may vary depending on configuration and options. Always verify with Mori Seiki documentation or the machine nameplate.

Manufacturer: Mori Seiki
Model: ZL-35MC
Machine Type: Twin-Spindle CNC Turning Center with Live Tooling
Swing Over Bed: 21.7″
Max Turning Diameter: 17.7″
Max Turning Length: 33.4″
Chuck Size: 12″
Bar Capacity: 3.15″
Main Spindle Speed: Up to 3,000 rpm
Sub-Spindle Speed: Up to 3,000 rpm
Spindle Motor: ~40 hp
Spindle Nose: A2-8
Turret Stations: 12
X-Axis Travel: ~10.2″
Z-Axis Travel: ~33.4″
Y-Axis Travel: Not applicable
Control: Fanuc CNC Control
Machine Weight: ~22,000 lb
Final Listing Price: Request Quote
